RN22-HD (1974)
Toyota Hilux
Production
Apr 1974
-
Jul 1978
Engine
18R
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)

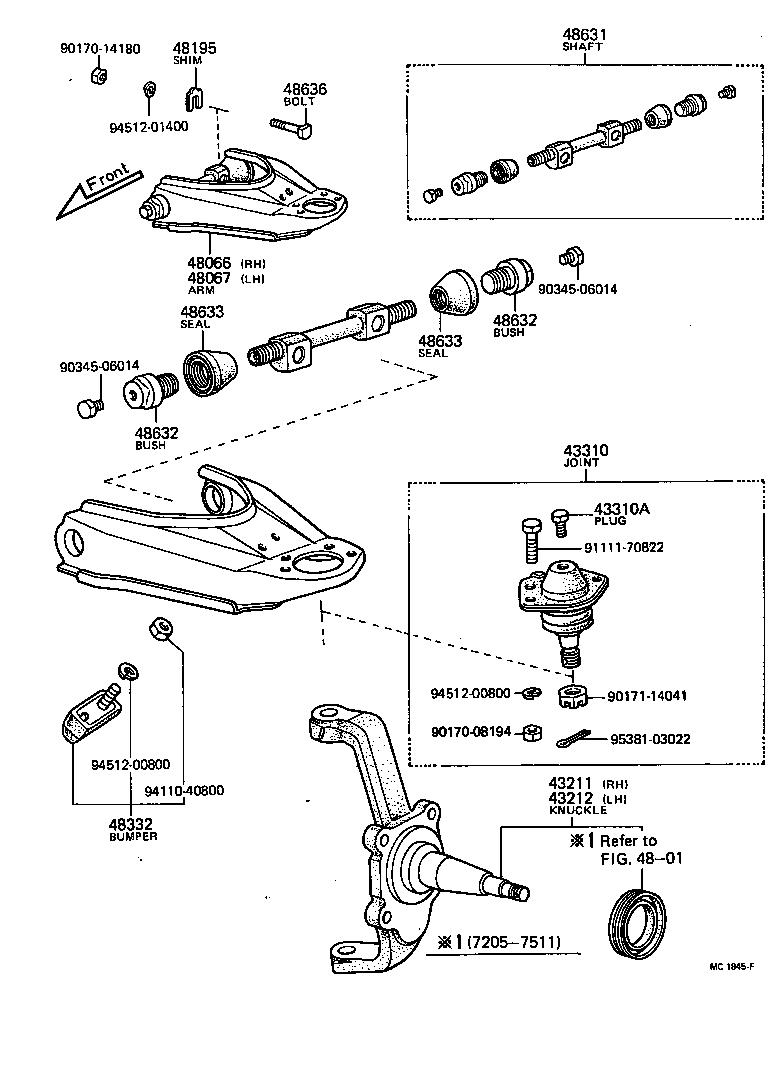

(7205-7807)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-35903 |
RN2# |
1 | ||
| 43211-26020 |
RN2# |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43211-26020 |
RN2# |
1 | ||
| 43211-35903 |
RN2# |
1 | ||
| 43310 - JOINT ASSY, UPPER BALL | ||||
| 43360-39015 |
RN2# |
2 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
RN2# |
4 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-35020 |
RN2# |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48067-35020 |
RN2# |
1 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90565-15018 |
RN2# T=2.0,T=2.0 |
1 | ||
| 90565-15017 |
RN2# T=1.0,T=1.0 |
1 | ||
| 90565-15016 |
RN2# T=1.6,T=1.6 |
1 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48305-39025 |
RN2# |
2 | ||
| 48631 - SHAFT, FRONT SUSPENSION UPPER ARM | ||||
| 04485-35010 |
RN2# |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30012 |
RN2# |
4 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30012 |
RN2# |
4 | ||
| 48633 - SEAL, UPPER ARM PIVOT DUST | ||||
| 48633-35010 |
RN2# |
4 | ||
| 48633 - SEAL, UPPER ARM PIVOT DUST | ||||
| 48633-35010 |
RN2# |
4 | ||
| 48636 - BOLT, UPPER ARM SET | ||||
| 48636-35011 |
RN2# |
4 | ||
| 90101-14477 |
RN2# |
4 | ||
| Common parts | ||||
| 90170-08194 | ||||
| 90170-14180 | ||||
| 90171-14041 | ||||
| 90345-06014 | ||||
| 91111-70822 | ||||
| 94110-40800 | ||||
| 94512-00800 | ||||
| 94512-01400 | ||||
| 95381-03022 | ||||
| Linked diagrams | ||||
| 4801 | ||||

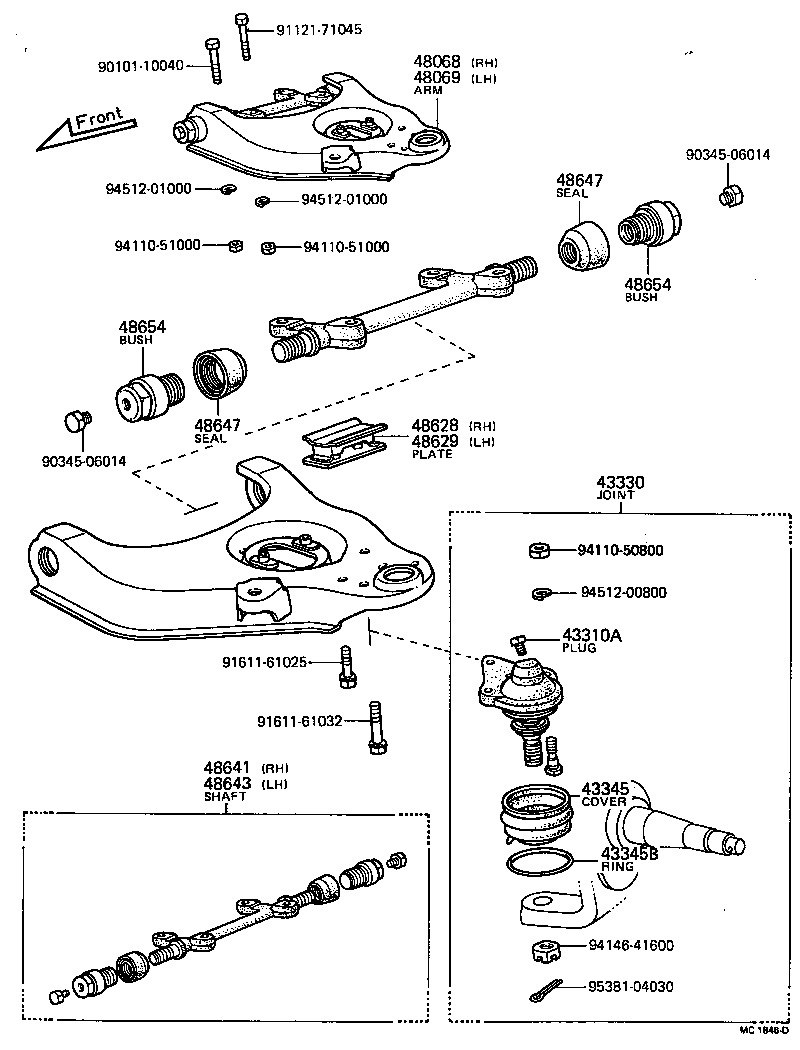

(7205-7807)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
RN2# |
4 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-39045 |
RN2# |
2 | ||
| 43345 - COVER, LOWER BALL JOINT DUST | ||||
| 43345-35010 |
RN2# |
2 | ||
| 43345B - RING, SET (FOR LOWER BALL JOINT DUST COVER) | ||||
| 90522-58039 |
RN2# |
2 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48068-35030 |
RN2# |
1 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48069-35030 |
RN2# |
1 | ||
| 48628 - PLATE, LOWER ARM BUMPER STOPPER, RH | ||||
| 48628-35020 |
RN2# |
1 | ||
| 48628-35030 |
RN2# |
1 | ||
| 48629 - PLATE, LOWER ARM BUMPER STOPPER, LH | ||||
| 48629-35020 |
RN2# |
1 | ||
| 48629-35030 |
RN2# |
1 | ||
| 48641 - SHAFT, LOWER ARM, RH | ||||
| 04486-35020 |
RN2# |
1 | ||
| 48643 - SHAFT, LOWER ARM, LH | ||||
| 04487-35020 |
RN2# |
1 | ||
| 48647 - SEAL, LOWER ARM BUSH DUST | ||||
| 48645-35010 |
RN2# |
4 | ||
| 48647 - SEAL, LOWER ARM BUSH DUST | ||||
| 48645-35010 |
RN2# |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48632-30012 |
RN2# |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48632-30012 |
RN2# |
4 | ||
| Common parts | ||||
| 90101-10040 | ||||
| 90345-06014 | ||||
| 91121-71045 | ||||
| 91611-61025 | ||||
| 91611-61032 | ||||
| 94110-50800 | ||||
| 94110-51000 | ||||
| 94146-41600 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-04030 | ||||
