RN20L-KR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

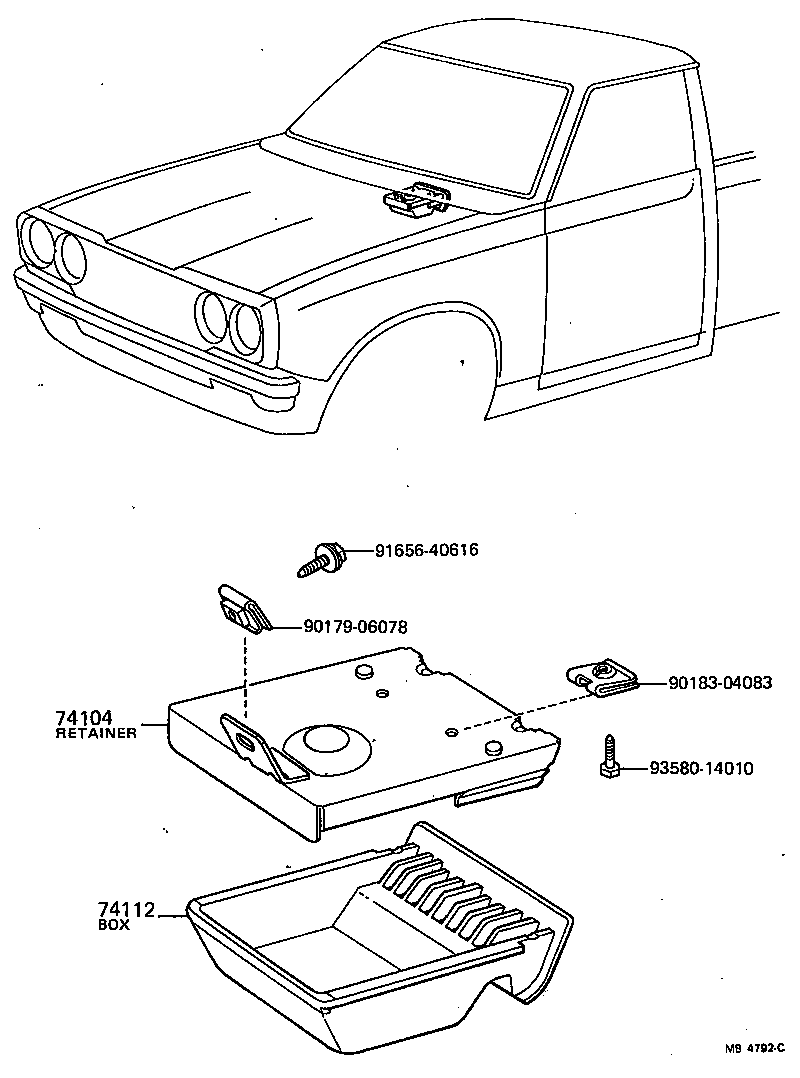

Click highlighted areas on diagram

diagram 74104 74112 9017906078 9018304083 9165640616 9358014010
Part # Description Qty Price
74104 - RETAINER SUB-ASSY, ASH RECEPTACLE, NO.1
74104-89102

RN2#

 1
74104-89103

RN2#

 1
74112 - BOX, ASH RECEPTACLE, NO.1
74112-89101

RN2#

 1
Common parts
90179-06078
90183-04083
91656-40616
93580-14010
