RN20L-KR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

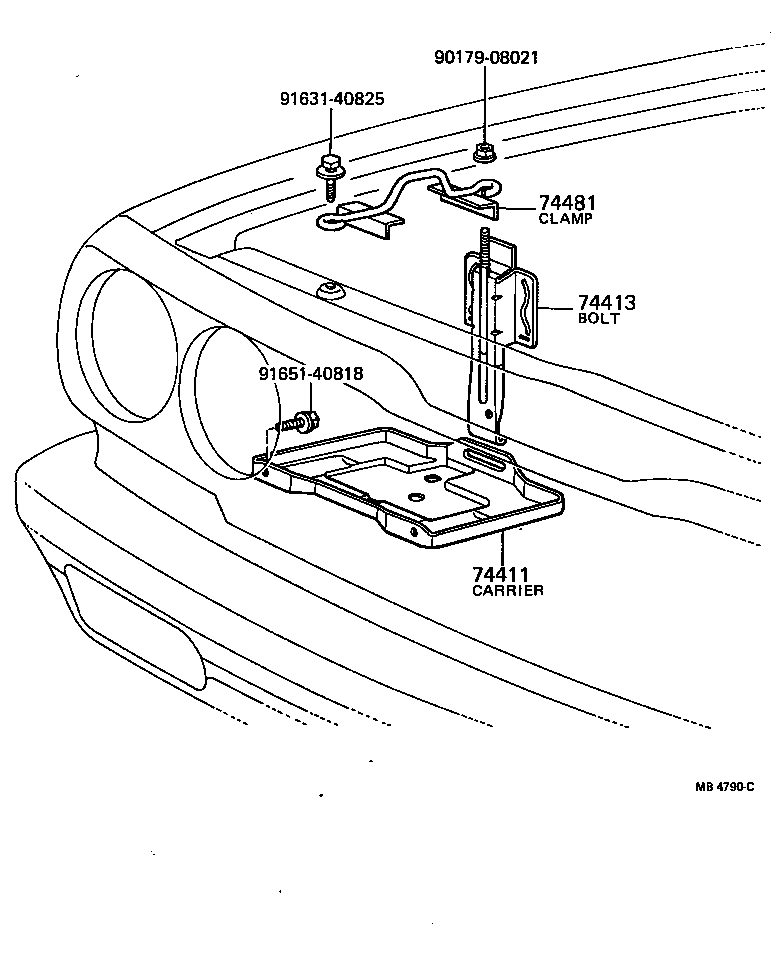

Click highlighted areas on diagram

diagram 74411 74413 74481 9017908021 9163140825 9165140818
Part # Description Qty Price
74411 - CARRIER, BATTERY
74411-89107

RN20,25

FOR N50ZL

 1
74411-20080

RN2#

FOR N40L

 1
74411-20080

RN20,25

FOR N40L

 1
74411-20070

RN2#

FOR N50ZL

 1
74411-20070

RN20,25

FOR N50ZL

 1
74411-20060

RN2#

FOR NS40ZL

 1
74411-89108

RN20,25

FOR N40L

 1
74411-89106

RN2#

FOR NS40ZL

 1
74413 - BOLT, BATTERY CLAMP
74407-89104

RN2#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-20030

RN2#

FOR N40L

 1
74404-89101

RN2#

FOR N40L

 1
74404-20010

RN2#

FOR NS40ZL

 1
74404-89103

RN20,25

FOR N50ZL

 1
74404-20020

RN2#

FOR N50ZL

 1
74404-89102

RN2#

FOR NS40ZL

 1
74404-89101

RN20,25

FOR N40L

 1
74404-89103

RN2#

FOR N50ZL

 1
Common parts
90179-08021
91631-40825
91651-40818
