RN20L-KR (1972)

Toyota Hilux

Production May 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7605)

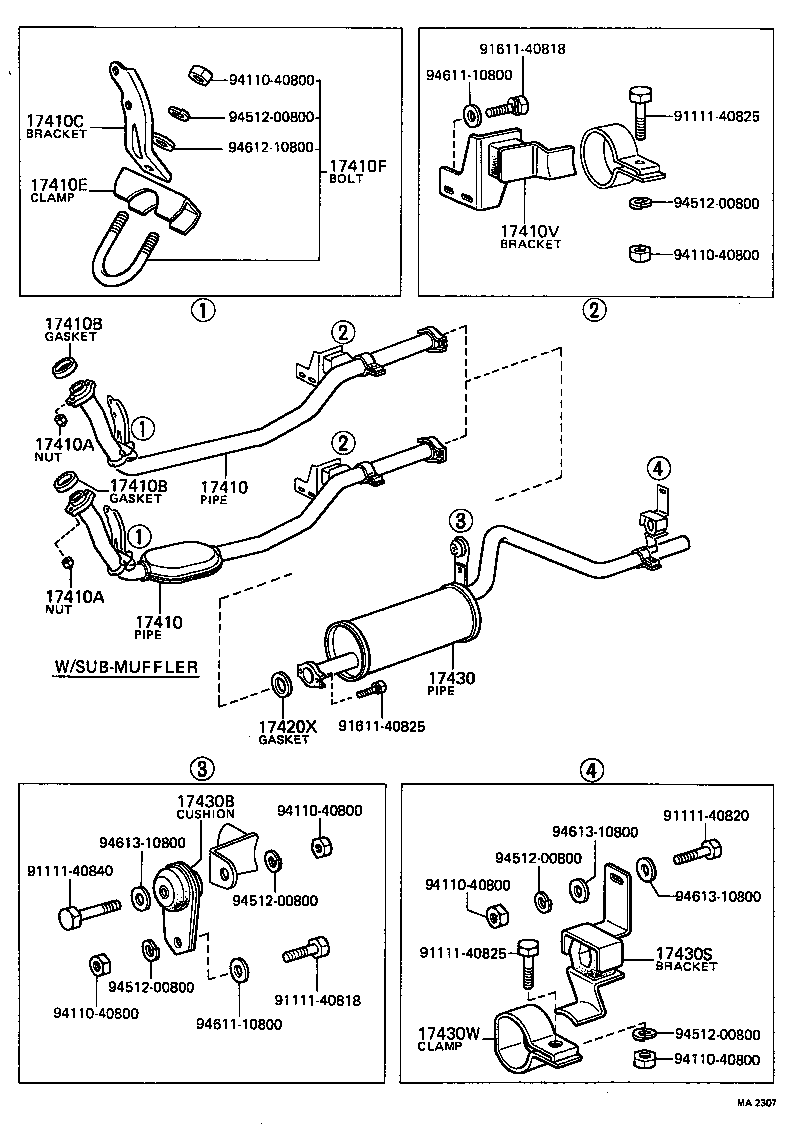

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410C 17410E 17410E 17410F 17410F 17410V 17410Z 17410Z 17420X 17430 17430B 17430S 17430W 9111140818 9111140820 9111140825 9111140825 9111140840 9161140818 9161140825 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800 9461110800 9461110800 9461210800 9461210800 9461310800 9461310800 9461310800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31130

12R#..RN20

 1
17410-31131

12R#..RN20

W/SUB-MUFFLER

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31130

12R#..RN20

 1
17410-31131

12R#..RN20

W/SUB-MUFFLER

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10049

12R,18R..RN2#

 2
90170-10199

12R#,18R..RN2#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10049

12R,18R..RN2#

 2
90170-10199

12R#,18R..RN2#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

12R#..RN20,25

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

12R#..RN20,25

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31070

12R#..RN20,25

 1
17571-31050

12R..RN20,25

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31070

12R#..RN20,25

 1
17571-31050

12R..RN20,25

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04021

12R#,18R..RN2#

 1
90917-04007

12R,18R..RN2#

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04021

12R#,18R..RN2#

 1
90917-04007

12R,18R..RN2#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90999-99002

12R,18R..RN2#

 1
90118-08135

12R#,18R..RN2#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90999-99002

12R,18R..RN2#

 1
90118-08135

12R#,18R..RN2#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17561-31060

12R#..RN20,25

 1
17410Z - CLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)
90461-23204

12R,18R..RN2#

 1
17410Z - CLAMP NO.2, EXHAUST PIPE FRONT (FOR REAR)
90461-23204

12R,18R..RN2#

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

12R#,18R..RN2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31040

12R,18R..RN2#

 1
17430-31040

12R#..RN20,25

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-08004

12R#..RN20,25

 1
90917-08004

12R,18R..RN2#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-31030

12R,18R..RN2#

 1
17563-31030

12R#..RN20,25

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23188

12R#..RN20,25

 1
90461-23188

12R,18R..RN2#

 1
Common parts
91111-40818
91111-40820
91111-40825
91111-40840
91611-40818
91611-40825
94110-40800
94512-00800
94611-10800
94612-10800
94613-10800

(7605-7807)12R#

Click highlighted areas on diagram

diagram 17410 17410 17410A 17410A 17410B 17410B 17410C 17410E 17410F 17410V 17420X 17430 17430B 17430S 17430W 9111140818 9111140820 9111140825 9111140825 9111140840 9161140818 9161140825 9411040800 9411040800 9411040800 9411040800 9411040800 9411040800 9451200800 9451200800 9451200800 9451200800 9451200800 9451200800 9461110800 9461110800 9461210800 9461310800 9461310800 9461310800
Part # Description Qty Price
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31130

12R#..RN20

 1
17410-31131

12R#..RN20

W/SUB-MUFFLER

 1
17410 - PIPE ASSY, EXHAUST, FRONT
17410-31130

12R#..RN20

 1
17410-31131

12R#..RN20

W/SUB-MUFFLER

 1
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10049

12R,18R..RN2#

 2
90170-10199

12R#,18R..RN2#

 2
17410A - NUT, EXHAUST PIPE SET STUD BOLT
90170-10049

12R,18R..RN2#

 2
90170-10199

12R#,18R..RN2#

 2
17410B - GASKET, EXHAUST PIPE
90917-06004

12R#..RN20,25

 1
17410B - GASKET, EXHAUST PIPE
90917-06004

12R#..RN20,25

 1
17410C - BRACKET, EXHAUST PIPE FRONT (FOR FRONT)
17571-31070

12R#..RN20,25

 1
17571-31050

12R..RN20,25

 1
17410E - CLAMP NO.1, EXHAUST PIPE FRONT (FOR FRONT)
90917-04021

12R#,18R..RN2#

 1
90917-04007

12R,18R..RN2#

 1
17410F - BOLT OR RING, EXHAUST PIPE FRONT (FOR FRONT)
90999-99002

12R,18R..RN2#

 1
90118-08135

12R#,18R..RN2#

 1
17410V - BRACKET, EXHAUST PIPE FRONT (FOR REAR)
17561-31060

12R#..RN20,25

 1
17420X - GASKET, EXHAUST PIPE, CENTER
90917-06004

12R#,18R..RN2#

 1
17430 - PIPE ASSY, EXHAUST, TAIL
17430-31040

12R,18R..RN2#

 1
17430-31040

12R#..RN20,25

 1
17430B - CUSHION, EXHAUST TAIL PIPE(FOR FRONT)
90917-08004

12R#..RN20,25

 1
90917-08004

12R,18R..RN2#

 1
17430S - BRACKET, EXHAUST TAIL PIPE (FOR REAR)
17563-31030

12R,18R..RN2#

 1
17563-31030

12R#..RN20,25

 1
17430W - CLAMP NO.2, EXHAUST TAIL PIPE (FOR REAR)
90461-23188

12R#..RN20,25

 1
90461-23188

12R,18R..RN2#

 1
Common parts
91111-40818
91111-40820
91111-40825
91111-40840
91611-40818
91611-40825
94110-40800
94512-00800
94611-10800
94612-10800
94613-10800
