RN20L-KR (1977)

Toyota Hilux

Production Nov 1977 - Jul 1978
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)LHD

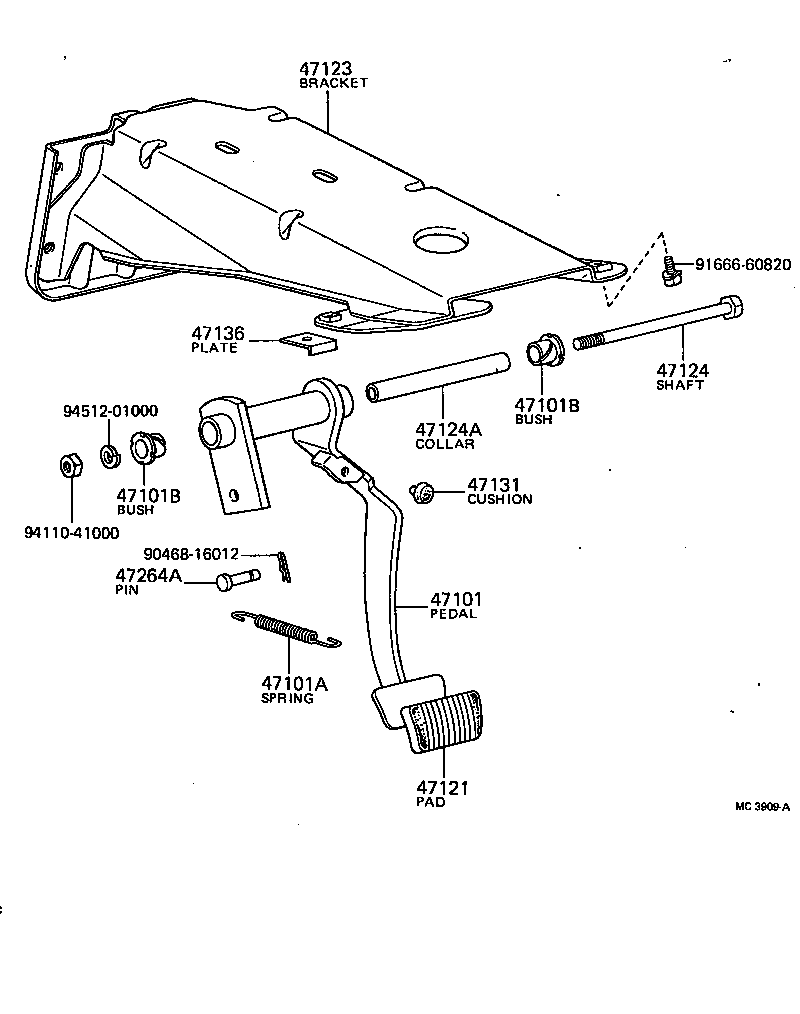

Click highlighted areas on diagram

diagram 47101 47101A 47101B 47101B 47121 47123 47124 47124A 47131 47136 47264A 9046816012 9166660820 9411041000 9451201000
Part # Description Qty Price
47101 - PEDAL SUB-ASSY, BRAKE
47101-35070

RN20,22,25..LHD

 1
47101A - SPRING(FOR BRAKE PEDAL RETURN)
90506-16386

RN2#

 1
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

RN2#

 2
47101B - BUSH(FOR BRAKE PEDAL)
90386-13007

RN2#

 2
47121 - PAD, BRAKE PEDAL
31321-20020

RN2#..MTM

 1
47123 - BRACKET, BRAKE PEDAL
55106-89106

RN2#..4F

 1
47124 - SHAFT, BRAKE PEDAL
90101-10170

RN20,22,25..LHD

 1
47124A - COLLAR(FOR BRAKE PEDAL SHAFT)
47144-35010

RN20,22,25..LHD

 1
47131 - CUSHION(FOR STOP LAMP SWITCH)
90541-06008

RN2#

 1
47136 - PLATE, BRAKE PEDAL BRACKET
55159-89101

RN20,25..LHD

 1
47264A - PIN(FOR PUSH ROD)
90249-10048

RN2#

 1
Common parts
90468-16012
91666-60820
94110-41000
94512-01000
