RN20L-KR (1977)
Toyota Hilux
Production
Nov 1977
-
Jul 1978
Engine
12RM
Transmission
4F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(7205-7807)RN20,25

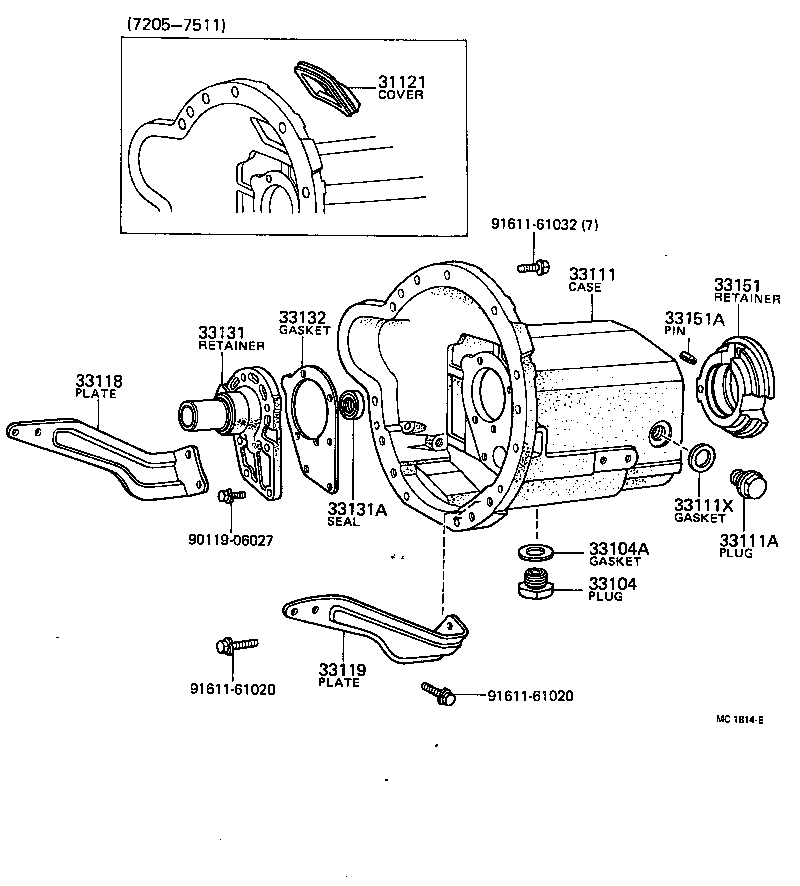

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31121 - COVER, CLUTCH HOUSING, NO.1 | ||||
| 31121-26010 |
RN20,25 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
RN2#..MTM |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 12157-10010 |
RN2#..MTM |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33111-26010 |
RN20,25 |
1 | ||
| 33111-26040 |
RN20,25 |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18002 |
RN2#..MTM |
1 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 12157-10010 |
RN2#..MTM |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-26010 |
RN20,25 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-32106 |
RN2#..4F,4H |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-30020 |
RN20,25 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-26010 |
RN2#..4F,4H |
1 | ||
| 33151A - PIN, SLOTTED SPRING(FOR OUTPUT SHAFT REAR BEARING RETAI | ||||
| 90254-05005 |
RN2#..4F,4H |
1 | ||
| Common parts | ||||
| 90119-06027 | ||||
| 91611-61020 | ||||
| 91611-61032 | ||||
