RN20L-KR (1977)

Toyota Hilux

Production Nov 1977 - Jul 1978
Engine 12RM
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)12R#

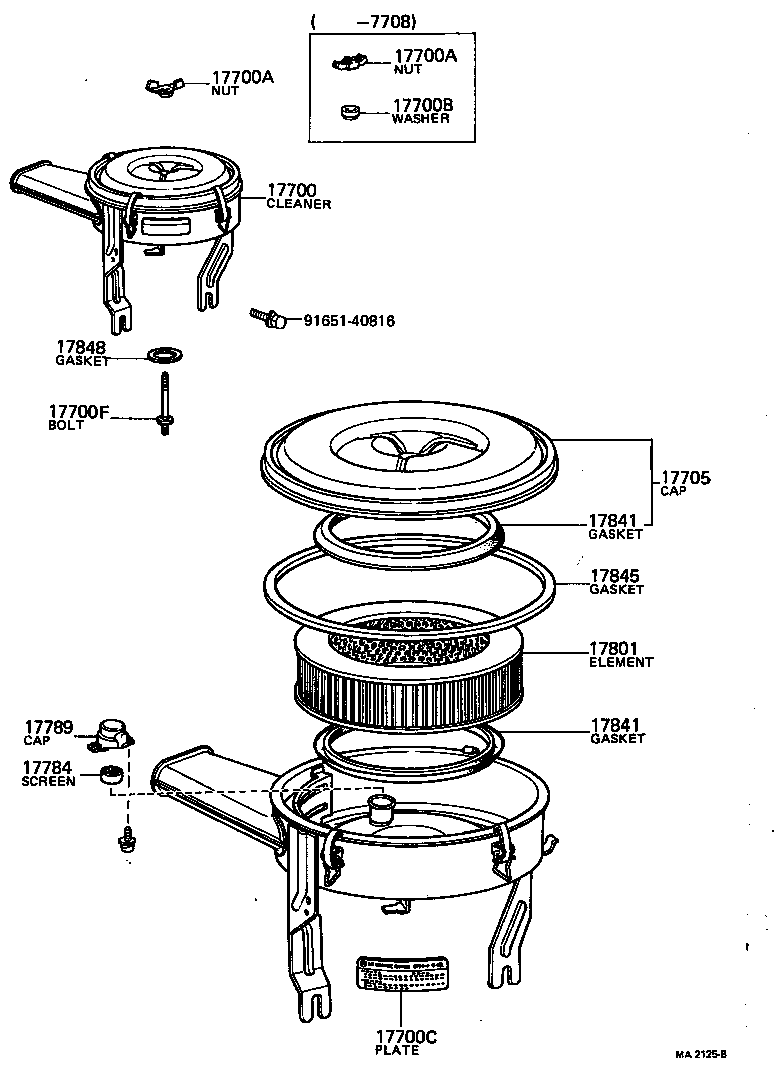

Click highlighted areas on diagram

diagram 17700 17700A 17700A 17700B 17700C 17700F 17705 17784 17789 17801 17841 17841 17845 17848 9165140816
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-31181

12R..RN2#

L/PCV

 1
17700-31161

12R..RN2#

W/PCV

 1
17700-31261

12RM..RN20

 1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00600

12R..RN2#

 1
17700A - NUT, WING(FOR AIR CLEANER)
94270-00600

12R..RN2#

 1
17700B - WASHER, SEAL(FOR AIR CLEANER)
90210-06001

12R..RN2#

 1
17700C - PLATE, AIR CLEANER CAUTION (FOR ENGINE MODEL)
90917-07052

12R..RN2#

 1
17700F - BOLT, STUD(FOR AIR CLEANER SETTING)
90116-06106

12R..RN2#

L=87,S=13&30

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-31031

12R..RN20,25

W/P.C.V.

 1
17705-31030

12R..RN20,25

L/P.C.V.

 1
17784 - SCREEN, AIR CLEANER
17784-31010

12R#,18R..RN2#

 1
17789 - CAP, AIR CLEANER SCREEN
17789-31010

12R,18R..RN2#

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-31010

12R..RN20,25

 1
17841 - GASKET, FILTER ELEMENT
17841-21010

12R..RN20,25

L/PCV CASE SIDE

 1
17841-31020

12R..RN20,25

L/PCV QTY=1 CAP SIDE

 2
17841 - GASKET, FILTER ELEMENT
17841-21010

12R..RN20,25

L/PCV CASE SIDE

 1
17841-31020

12R..RN20,25

L/PCV QTY=1 CAP SIDE

 2
17845 - GASKET, AIR CLEANER CAP
17845-31020

12R#..RN20,25

 1
17848 - GASKET, AIR CLEANER TO CARBURETOR
90430-63187

12R#..RN20,25

 1
Common parts
91651-40816
