RN20-KR (1972)

Toyota Hilux

Production Nov 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

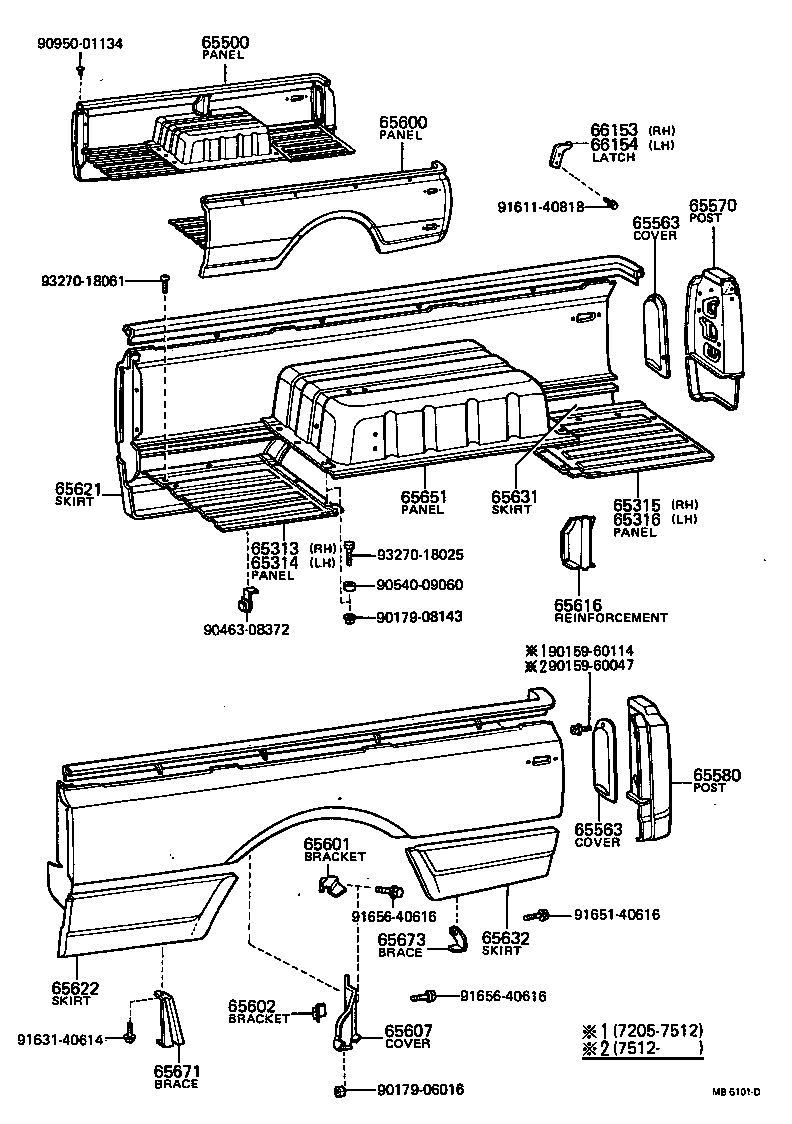

Click highlighted areas on diagram

diagram 65313 65314 65315 65316 65500 65563 65563 65570 65580 65600 65601 65602 65607 65616 65621 65622 65631 65632 65651 65671 65673 66153 66154 9015960047 9015960114 9017906016 9017908143 9046308372 9054009060 9095001134 9161140818 9163140614 9165140616 9165640616 9165640616 9327018025 9327018061
Part # Description Qty Price
65313 - PANEL, FLOOR FRONT CORNER, RH
65313-89104

RN20

 1
65314 - PANEL, FLOOR FRONT CORNER, LH
65314-89106

RN20

 1
65315 - PANEL, FLOOR REAR CORNER, RH
65315-89104

RN20

 1
65316 - PANEL, FLOOR REAR CORNER, LH
65316-89104

RN20

 1
65500 - PANEL ASSY, REAR BODY SIDE, RH
65500-89110

RN20

 1
65563 - COVER, REAR COMBINATION LAMP
65563-89101

RN20,25,27

 2
65563 - COVER, REAR COMBINATION LAMP
65563-89101

RN20,25,27

 2
65570 - POST ASSY, SIDE PANEL REAR END, RH
65550-89102

RN20,25,27

 1
65550-89104

RN20,25..4F

E.C.E. SPEC.

 1
65580 - POST ASSY, SIDE PANEL REAR END, LH
65560-89102

RN20,25,27

 1
65560-89104

RN20,25..4F

E.C.E. SPEC.

 1
65600 - PANEL ASSY, REAR BODY SIDE, LH
65600-89113

RN20

 1
65601 - BRACKET SUB-ASSY, FUEL EXPANSION TANK, NO.1
65628-89102

RN20,25,27

 1
65602 - BRACKET, FUEL EXPANSION TANK, NO.2
65629-89102

RN20,25,27

 1
65607 - COVER SUB-ASSY, FUEL EXPANSION TANK
65620-89102

RN20,25,27

 1
65621 - SKIRT, SIDE PANEL, FRONT RH
65621-89103

RN20

 1
65622 - SKIRT, SIDE PANEL, FRONT LH
65622-89103

RN20

 1
65631 - SKIRT, SIDE PANEL, REAR RH
65631-89103

RN20

 1
65632 - SKIRT, SIDE PANEL, REAR, LH
65632-89103

RN20

 1
65651 - PANEL, WHEEL HOUSE
65651-89103

RN20,25,27

FOR RH.

 1
65652-89105

RN20,25,27

FOR LH.

 1
65671 - BRACE, SIDE PANEL SKIRT, FRONT
65671-89102

RN20,25,27

 2
65673 - BRACE, SIDE PANEL SKIRT, REAR
65673-89102

RN20,25,27

FOR RH.

 1
65674-89102

RN20,25,27

FOR LH.

 1
66153 - LATCH, TAIL GATE FEMALE, RH
66153-89102

RN20,25,27

 1
66154 - LATCH, TAIL GATE FEMALE, LH
66154-89102

RN20,25,27

 1
Common parts
90159-60047
90159-60114
90179-06016
90179-08143
90463-08372
90540-09060
90950-01134
91611-40818
91631-40614
91651-40616
91656-40616
93270-18025
93270-18061
