RN20-KR (1972)

Toyota Hilux

Production Nov 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)RN20,25

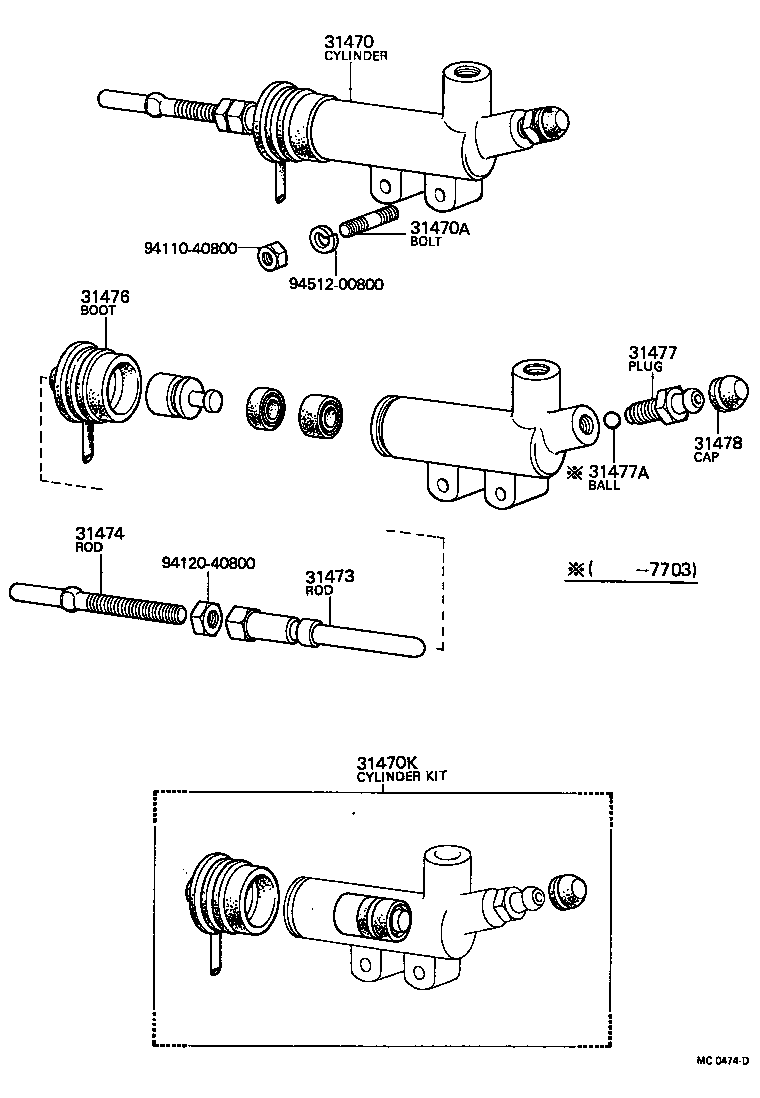

Click highlighted areas on diagram

diagram 31470 31470A 31470K 31473 31474 31476 31477 31477A 31478 9411040800 9412040800 9451200800
Part # Description Qty Price
31470 - CYLINDER ASSY, CLUTCH RELEASE
31470-26010

RN20,25

 1
31470A - BOLT(FOR CLUTCH RELEASE CYLINDER SETTING)
90116-08018

RN20,25

 2
31470K - CYLINDER KIT, CLUTCH RELEASE
04313-30042

RN20,25

 1
31473 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.1
31473-35010

RN20,25

 1
31474 - ROD, CLUTCH RELEASE CYLINDER PUSH, NO.2
31771-20010

RN20,25

 1
31476 - BOOT, CLUTCH RELEASE CYLINDER
31476-30010

RN2#

 1
31476-20030

RN20,25

 1
31477 - PLUG, BLEEDER(FOR RELEASE CYLINDER)
31477-30010

RN20,25

 1
47547-12010

RN2#..MTM

 1
31477A - BALL(FOR RELEASE CYLINDER BLEEDER PLUG)
90360-05006

RN20,25

 1
31478 - CAP, BLEEDER PLUG(FOR RELEASE CYLINDER)
31478-30010

RN2#..MTM

 1
Common parts
94110-40800
94120-40800
94512-00800
