RN20-KR (1972)

Toyota Hilux

Production Nov 1972 - Jul 1978
Engine 12R
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(7205-7807)

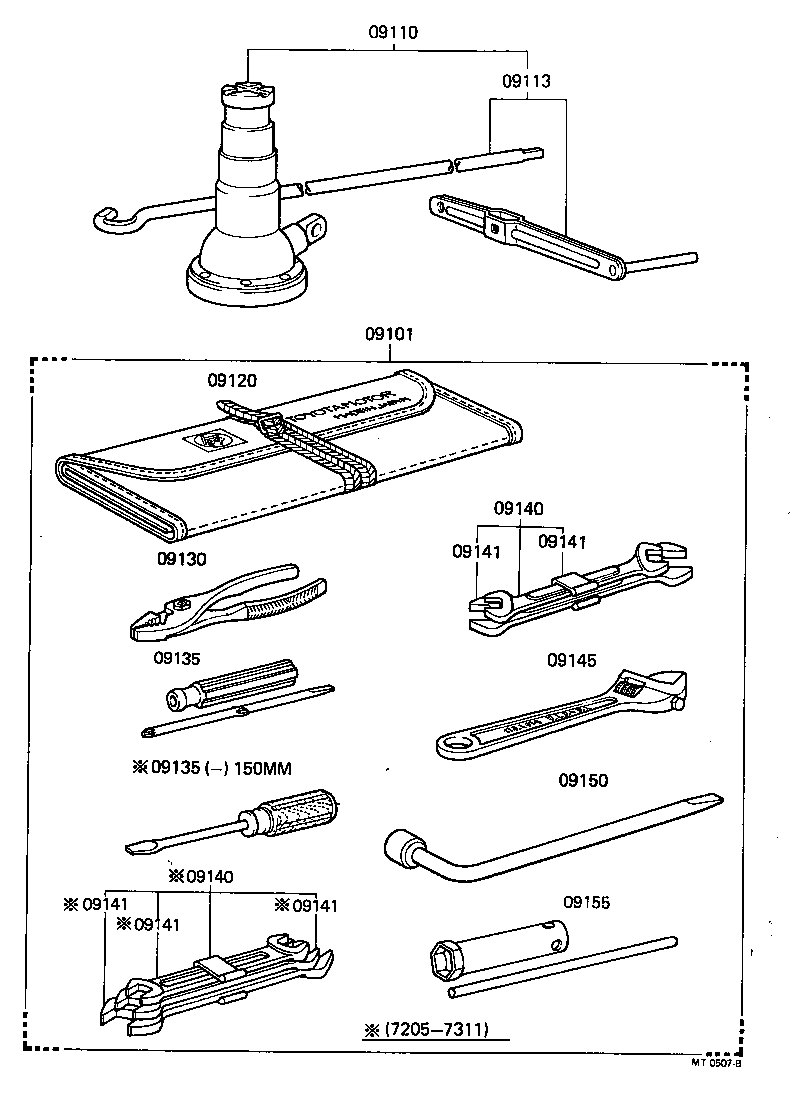

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09130 09135 09135 09140 09140 09141 09141 09141 09141 09141 09145 09150 09155
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-26030

RN2#

 1
09101-26010

RN2#

 1
09110 - JACK ASSY
09110-35040

RN2#

 1
09110-35070

RN2#

 1
09113 - HANDLE, JACK
09113-35030

RN2#

 1
09120 - BAG, TOOL
09120-26021

RN2#

 1
09120-26020

RN2#

 1
09120-26010

RN2#

 1
09130 - PLIERS
09130-00011

RN2#

 1
09135 - DRIVER, SCREW
09135-00060

RN2#

(-) 150

 1
09135-00010

RN2#

(+) (-)

 1
09135 - DRIVER, SCREW
09135-00060

RN2#

(-) 150

 1
09135-00010

RN2#

(+) (-)

 1
09140 - SPANNER SET
09140-22010

RN2#

 1
09140-00013

RN2#

 1
09140 - SPANNER SET
09140-22010

RN2#

 1
09140-00013

RN2#

 1
09141 - SPANNER
09141-00050

RN2#

14X17

 1
09141-00030

RN2#

10X12

 1
09141-00011

RN2#

8X10

 1
09141 - SPANNER
09141-00050

RN2#

14X17

 1
09141-00030

RN2#

10X12

 1
09141-00011

RN2#

8X10

 1
09141 - SPANNER
09141-00050

RN2#

14X17

 1
09141-00030

RN2#

10X12

 1
09141-00011

RN2#

8X10

 1
09141 - SPANNER
09141-00050

RN2#

14X17

 1
09141-00030

RN2#

10X12

 1
09141-00011

RN2#

8X10

 1
09141 - SPANNER
09141-00050

RN2#

14X17

 1
09141-00030

RN2#

10X12

 1
09141-00011

RN2#

8X10

 1
09145 - WRENCH, MONKEY
09145-00020

RN2#

 1
09150 - WRENCH, HUB NUT BOX
09150-30011

RN2#

 1
09155 - WRENCH, SPARK PLUG
09155-36010

RN2#

 1
