LN65R-MRP (1985)

Toyota Hilux

Production Aug 1985 - Dec 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-9508)L,2L

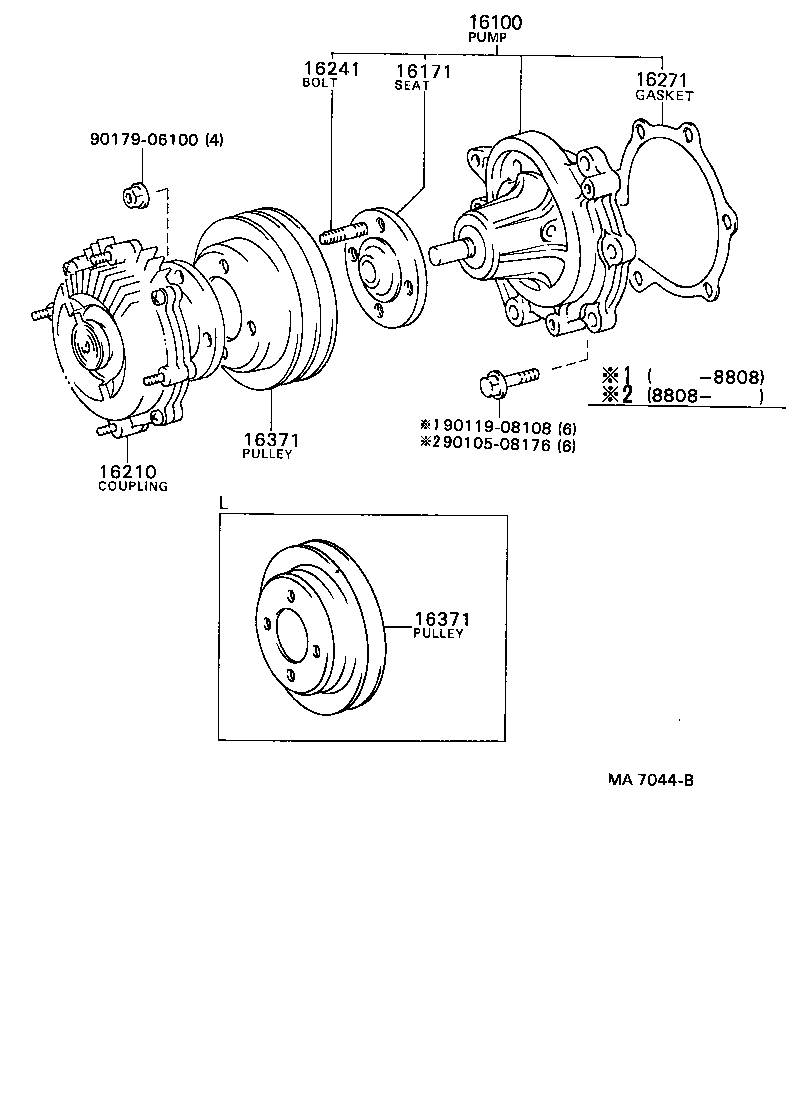

Click highlighted areas on diagram

diagram 16100 16171 16210 16241 16271 16371 16371 9010508176 9011908108 9017906100
Part # Description Qty Price
16100 - PUMP ASSY, ENGINE WATER
16100-59137

2L..LN51,56,6#

 1
16171 - SEAT, WATER PUMP PULLEY
16171-54011

L,2L..LN5#,6#

 1
16210 - COUPLING ASSY, FLUID
16210-54070

L,2L..LN5#,6#

 1
16241 - BOLT, STUD(FOR WATER PUMP COUPLING)
16193-13020

L,2L..LN5#,6#

 4
16271 - GASKET, WATER PUMP
16271-54012

L,2L..LN5#,6#

 1
16371 - PULLEY, FAN
16371-54020

2L..LN51,56,6#

 1
16371 - PULLEY, FAN
16371-54020

2L..LN51,56,6#

 1
Common parts
90105-08176
90119-08108
90179-06100
