LN65R-KR (1983)

Toyota Hilux

Production Aug 1983 - Aug 1985
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )LN60,65,67,RN67,YN60,62,65,67..T1

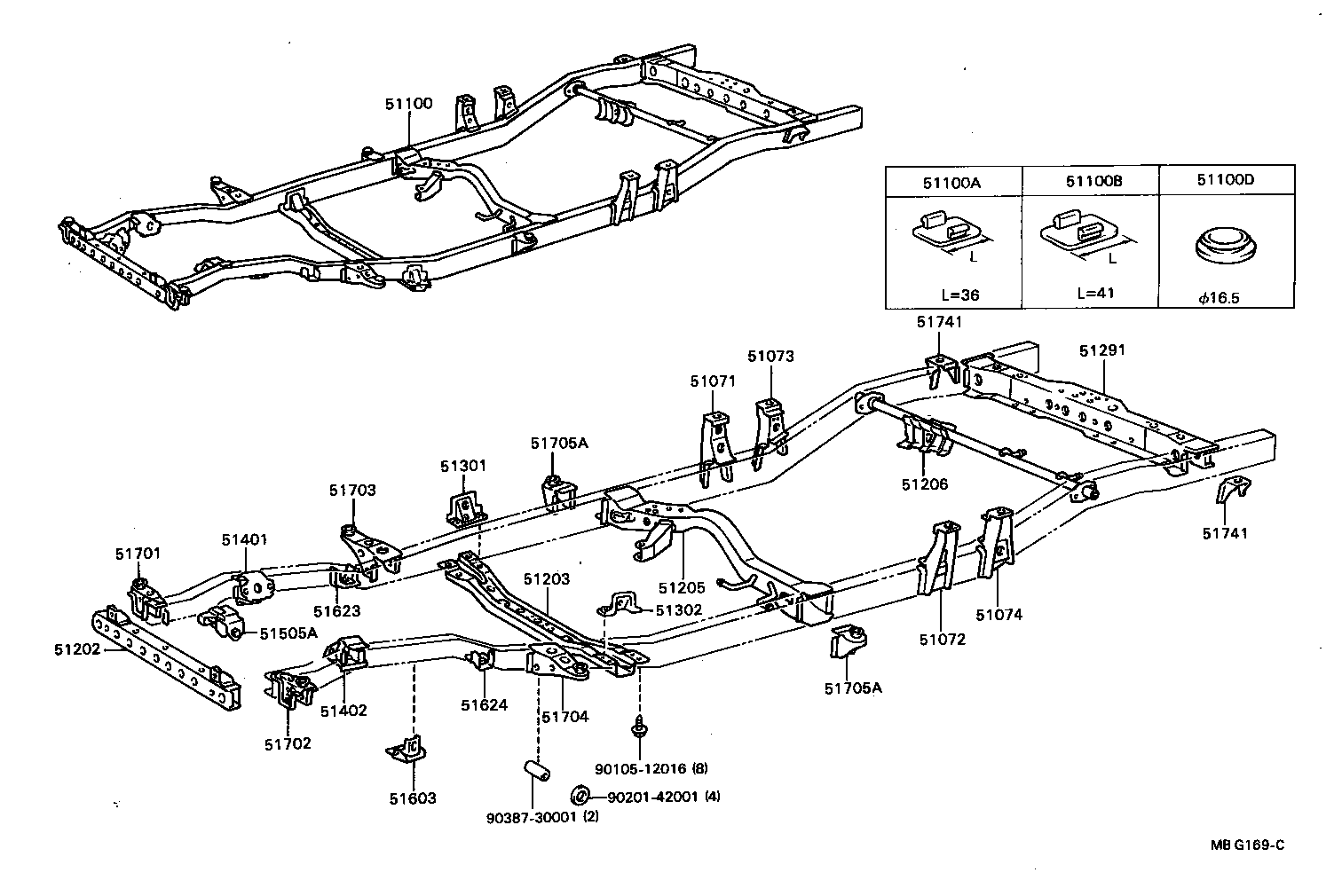

Click highlighted areas on diagram

diagram 51071 51072 51073 51074 51100 51100A 51100B 51100D 51202 51203 51205 51206 51291 51301 51302 51401 51402 51505A 51603 51623 51624 51701 51702 51703 51704 51705A 51705A 51741 51741 9010512016 9020142001 9038730001
Part # Description Qty Price
51071 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 RH
51071-35020

LN55,56,57,65,RN55,58,YN55,56,57,58,65,67..RCB

 1
51072 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.1 LH
51071-35020

LN55,56,57,65,RN55,58,YN55,56,57,58,65,67..RCB

 1
51073 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 RH
51073-35010

LN5#,60,65,RN5#,YN5#,60,62,65,67..RCB,XTR

 1
51074 - BRACKET SUB-ASSY, REAR BODY MOUNTING, NO.2 LH
51074-35010

LN5#,60,65,RN5#,YN5#,60,62,65,67..RCB,XTR

 1
51100 - FRAME ASSY
51002-35440

LN65..RHD..RCB..(ARL,GEN)

 1
51100A - PLUG, HOLE(FOR FRAME)
90950-01394

LN5#,6#,YN5#,6#

 4
51100B - PLUG, HOLE(FOR FRAME)
90950-01395

LN5#,6#,YN5#,6#

 2
51100D - PLUG, HOLE(FOR FRAME)
90950-01233

LN65,RN67..T1

 1
51202 - CROSSMEMBER SUB-ASSY, FRAME, NO.1
51201-35110

LN60,65,RN67,YN60,62,65,67..ARL,GEN,ME,SA

 1
51203 - CROSSMEMBER SUB-ASSY, FRAME, NO.2
51202-35170

LN6#,YN6#

 1
51205 - CROSSMEMBER SUB-ASSY, FRAME, NO.4
51204-35250

LN60,65,YN60,62,65,67..T1,TW

 1
51206 - CROSSMEMBER SUB-ASSY, FRAME, NO.5
51205-35130

LN6#,YN6#..T1,TW

 1
51291 - CROSSMEMBER, FRAME, REAR
51209-35090

LN6#,YN6#..(T1,TW)..(ARL,GEN,ME,SA)

 1
51301 - BRACKET, FRAME NO.2 CROSSMEMBER, RH
51321-35050

LN6#,YN6#

 1
51302 - BRACKET, FRAME NO.2 CROSSMEMBER, LH
51321-35050

LN6#,YN6#

 1
51401 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, RH
51401-35190

YN60,62,65,67

 1
51401-35200

LN60,65,RN67

 1
51402 - BRACKET SUB-ASSY, ENGINE FRONT MOUNTING, LH
51402-35190

LN60,65,RN67

 1
51401-35190

YN60,62,65,67

 1
51505A - SUPPORT SUB-ASSY, UPPER CONTROL ARM
51505-35050

LN60,65,RN67,YN60,65,67..RHD

 1
51603 - BRACKET SUB-ASSY, FRONT SUSPENSION BOUND
51603-35020

LN60,61,RN67,YN60,62,65,67

 2
51623 - BRACKET, FRONT SPRING BOUND STOPPER, RH
51623-35020

LN60,61,RN67,YN60,62,65,67

 1
51624 - BRACKET, FRONT SPRING BOUND STOPPER, LH
51624-35020

LN60,61,RN67,YN60,62,65,67

 1
51701 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 RH
51701-35090

LN60,65,RN67,YN60,62,65,67

 1
51702 - BRACKET SUB-ASSY, CAB MOUNTING, NO.1 LH
51701-35090

LN60,65,RN67,YN60,62,65,67

 1
51703 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2, RH
51703-35040

LN5#,6#,YN5#,6#

 1
51704 - BRACKET SUB-ASSY, CAB MOUNTING, NO.2 LH
51704-35060

LN5#,6#,YN5#,6#

 1
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-35080

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 2
51705A - BRACKET SUB-ASSY, CAB MOUNTING, NO.3
51705-35080

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6#

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-35050

LN5#,6#,YN5#,6#..ARL,EUR,GEN,ME

 2
51741-35050

LN5#,6#,YN5#,6#..T1..(ARL,EUR,GEN,ME)

 2
51741 - BRACKET, REAR BODY MOUNTING, NO.1
51741-35050

LN5#,6#,YN5#,6#..ARL,EUR,GEN,ME

 2
51741-35050

LN5#,6#,YN5#,6#..T1..(ARL,EUR,GEN,ME)

 2
Common parts
90105-12016
90201-42001
90387-30001
