LN65L-MRW (1983)

Toyota Hilux

Production Aug 1983 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

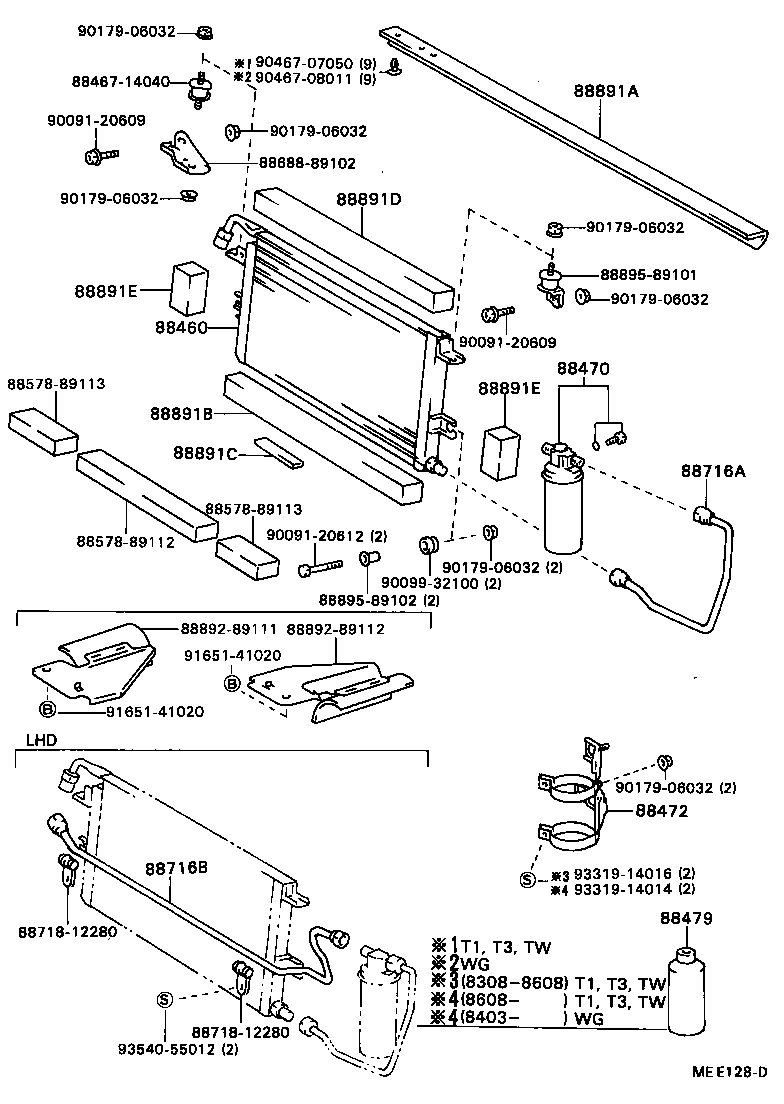

(8308-8408)YN50,52,55,57,6#..T1,T3,TW..ARL,GEN,ME,SA ; (8403-8408)YN60..ARL ; (8408

Click highlighted areas on diagram

diagram 88460 8846714040 88470 88472 88479 8857889112 8857889113 8857889113 8868889102 88716A 88716B 8871812280 8871812280 88891A 88891B 88891C 88891D 88891E 88891E 8889289111 8889289112 8889589101 8889589102 9009120609 9009120609 9009120612 9009932100 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9046707050 9046708011 9165141020 9165141020 9331914014 9331914016 9354055012
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-89112

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-89101

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-89152

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89147

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88891A - PACKING A (FOR COOLER)
53381-89103

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR

 1
88891B - PACKING B (FOR COOLER)
88578-89109

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR

 1
Common parts
88467-14040
88578-89112
88578-89113
88688-89102
88718-12280
88892-89111
88892-89112
88895-89101
88895-89102
90091-20609
90091-20612
90099-32100
90179-06032
90467-07050
90467-08011
91651-41020
93319-14014
93319-14016
93540-55012

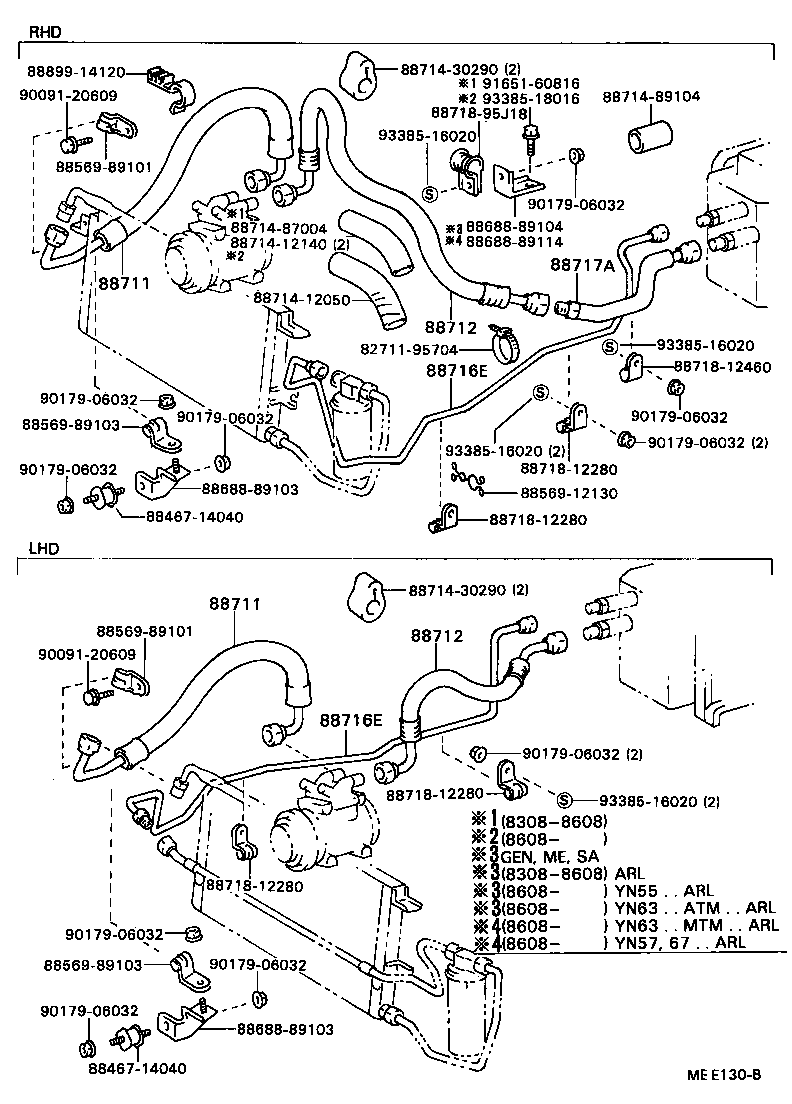

(8308-8408)YN50,52,55,57,6#..T1,T3,TW..ARL,GEN,ME,SA ; (8403-8408)YN60..ARL ; (8408

Click highlighted areas on diagram

diagram 8271195704 8846714040 8846714040 8856912130 8856989101 8856989101 8856989103 8856989103 8868889103 8868889103 8868889104 8868889114 88711 88711 88712 88712 8871412050 8871412140 8871430290 8871430290 8871487004 8871489104 88716E 88716E 88717A 8871812280 8871812280 8871812280 8871812280 8871812460 8871895J18 8889914120 9009120609 9009120609 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9017906032 9165160816 9338516020 9338516020 9338516020 9338516020 9338518016
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88720-89103

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88720-89103

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89121

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89121

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89141

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89141

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
Common parts
82711-95704
88467-14040
88569-12130
88569-89101
88569-89103
88688-89103
88688-89104
88688-89114
88714-12050
88714-12140
88714-30290
88714-87004
88714-89104
88718-12280
88718-12460
88718-95J18
88899-14120
90091-20609
90179-06032
91651-60816
93385-16020
93385-18016

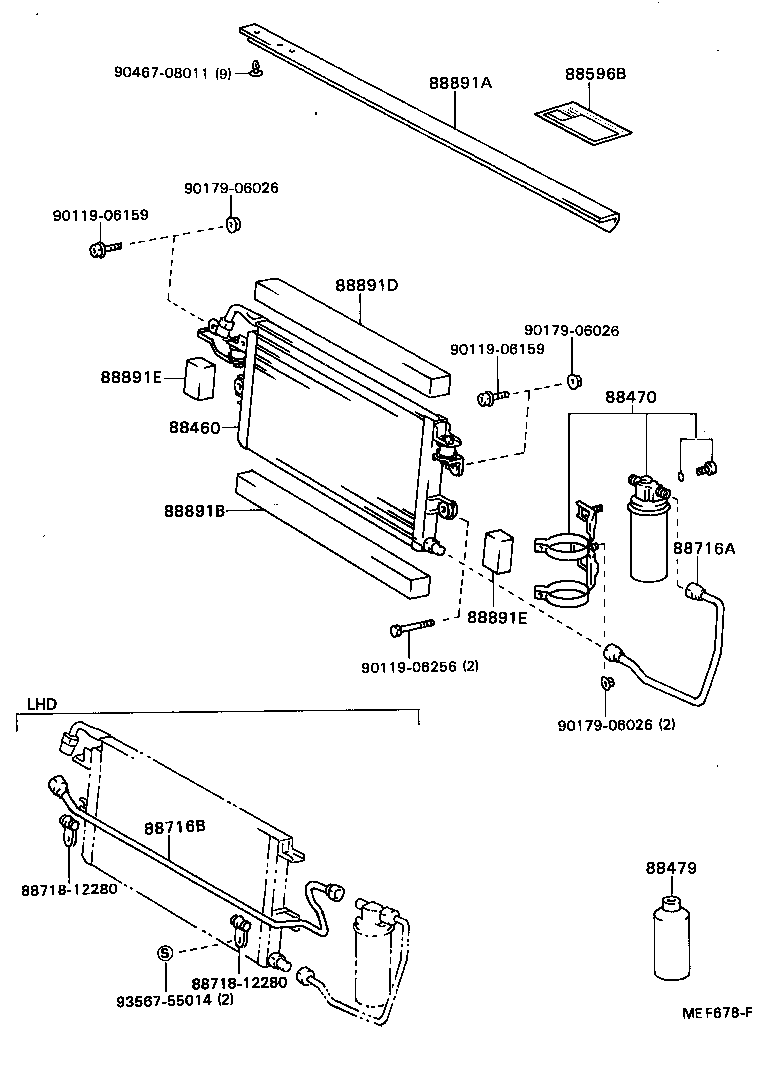

(8403-8408)SR5..ME ; (8408- )RN50,55,YN50,52,55,57,6#..GEN,ME ; (8708-8808)YN56,

Click highlighted areas on diagram

diagram 88460 88470 88479 88596B 88716A 88716B 8871812280 8871812280 88891A 88891B 88891D 88891E 88891E 9011906159 9011906159 9011906256 9017906026 9017906026 9017906026 9046708011 9356755014
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-89112

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-89101

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-89152

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89147

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88891A - PACKING A (FOR COOLER)
53381-89103

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR

 1
88891B - PACKING B (FOR COOLER)
88578-89109

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR

 1
Common parts
88718-12280
90119-06159
90119-06256
90179-06026
90467-08011
93567-55014

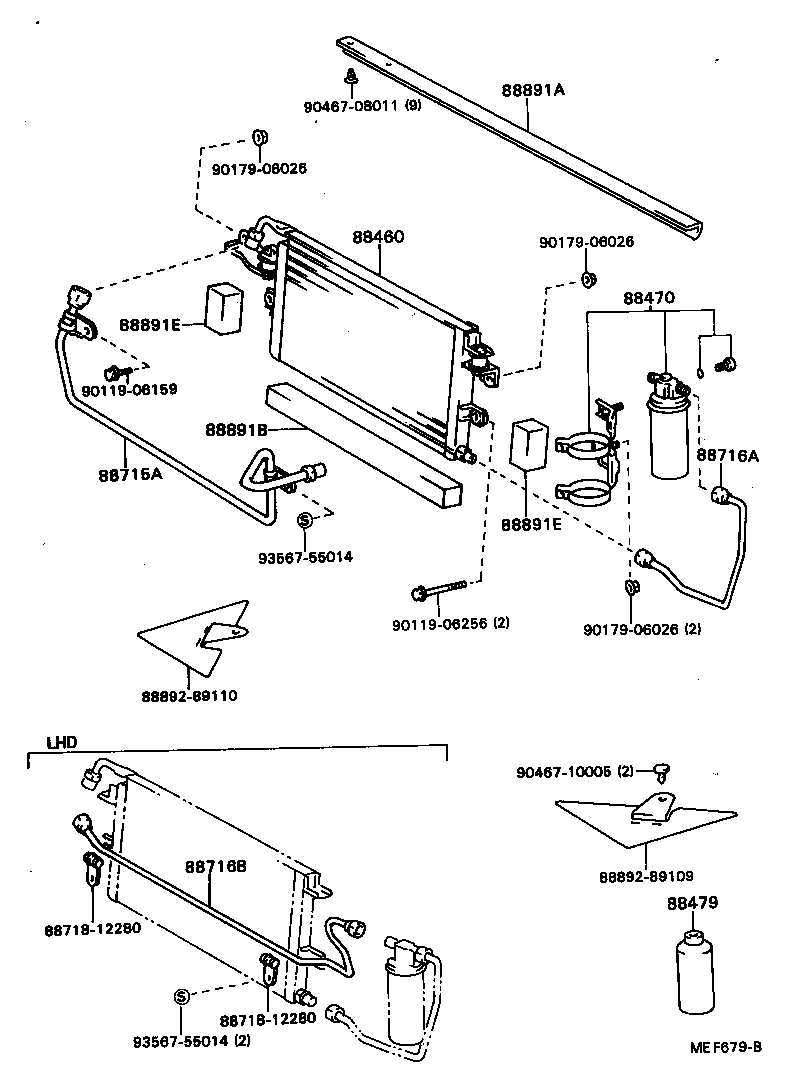

(8408- )LN51,56,60,65..GEN ; (8708-8808)LN56,65..LHD..EUR

Click highlighted areas on diagram

diagram 88460 88470 88479 88715A 88716A 88716B 8871812280 8871812280 88891A 88891B 88891E 88891E 8889289109 8889289110 9011906159 9011906256 9017906026 9017906026 9017906026 9046708011 9046710005 9356755014 9356755014
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-89112

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88470 - RECEIVER & DRYER ASSY, COOLER
88470-89101

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-89152

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88716-89147

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88891A - PACKING A (FOR COOLER)
53381-89103

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR

 1
88891B - PACKING B (FOR COOLER)
88578-89109

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,RN61,YN56,67..LHD..EUR

 1
Common parts
88718-12280
88892-89109
88892-89110
90119-06159
90119-06256
90179-06026
90467-08011
90467-10005
93567-55014

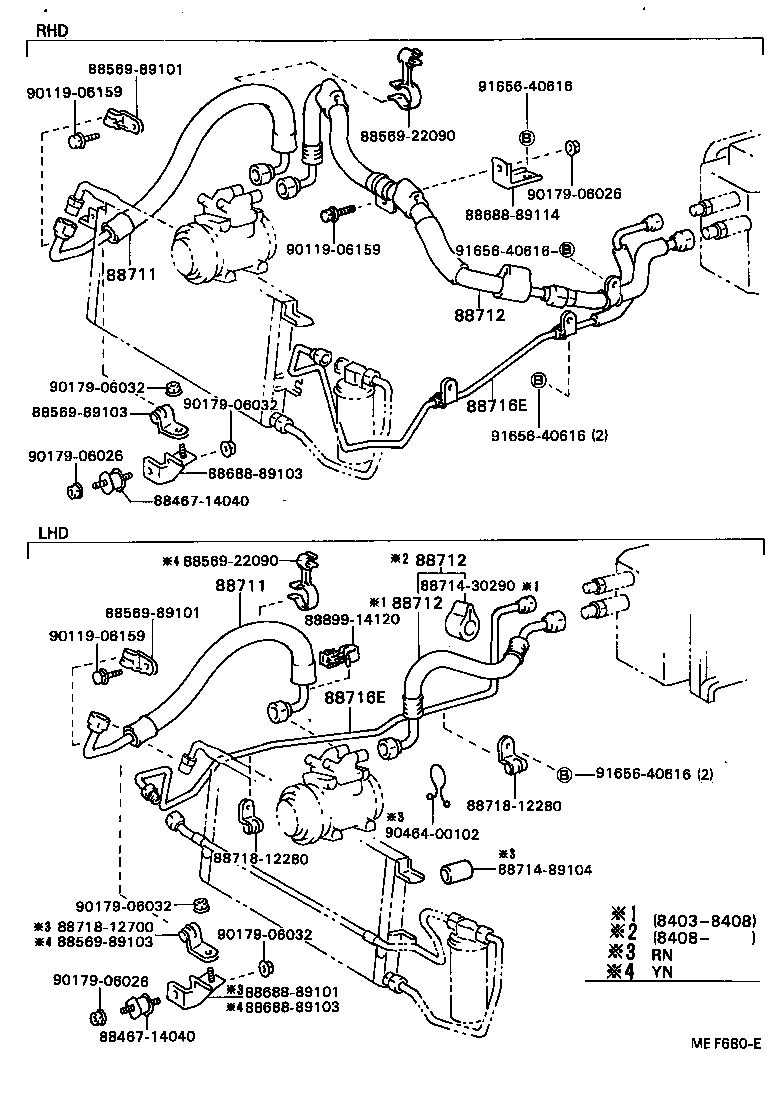

(8403-8408)SR5..ME ; (8408- )RN50,55,YN50,52,55,57,6#..GEN,ME ; (8708-8808)YN56,

Click highlighted areas on diagram

diagram 8846714040 8846714040 8856922090 8856922090 8856989101 8856989101 8856989103 8856989103 8868889101 8868889103 8868889103 8868889114 88711 88711 88712 88712 88712 8871430290 8871489104 88716E 88716E 8871812280 8871812280 8871812700 8889914120 9011906159 9011906159 9011906159 9017906026 9017906026 9017906026 9017906032 9017906032 9017906032 9017906032 9046400102 9165640616 9165640616 9165640616 9165640616
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88720-89103

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88720-89103

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89121

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89121

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89121

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89141

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89141

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
Common parts
88467-14040
88569-22090
88569-89101
88569-89103
88688-89101
88688-89103
88688-89114
88714-30290
88714-89104
88718-12280
88718-12700
88899-14120
90119-06159
90179-06026
90179-06032
90464-00102
91656-40616

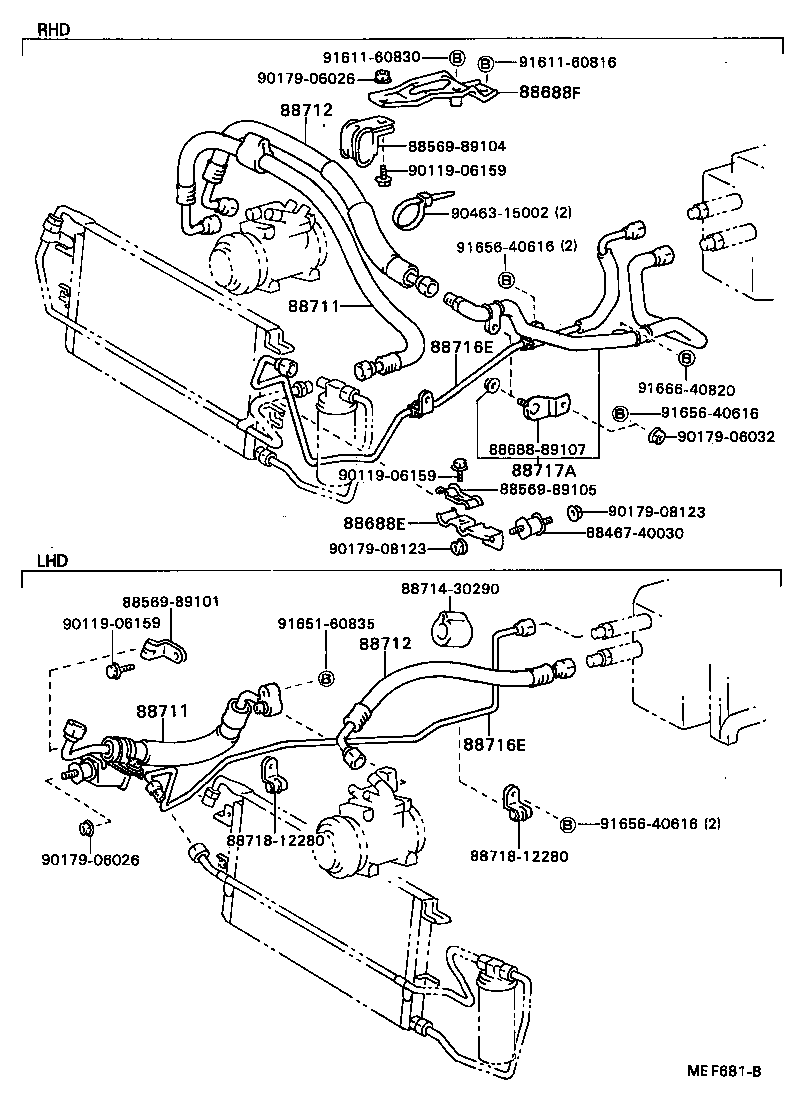

(8408- )LN51,56,60,65..GEN ; (8708-8808)LN56,65..LHD..EUR

Click highlighted areas on diagram

diagram 8846740030 8856989101 8856989104 8856989105 8868889107 88688E 88688F 88711 88711 88712 88712 8871430290 88716E 88716E 88717A 8871812280 8871812280 9011906159 9011906159 9011906159 9017906026 9017906026 9017906032 9017908123 9017908123 9046315002 9161160816 9161160830 9165160835 9165640616 9165640616 9165640616 9166640820
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88720-89103

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88720-89103

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89121

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-89121

LN56..DLX;LN51,65..LHD;LN56..EUR..IV;LN56..TW..EUR;LN56..LHD..STD..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89141

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89141

LN56..EUR..IV;LN56..TW..EUR;LN56..DLX..EUR;LN65,YN56,67..LHD..EUR

 1
Common parts
88467-40030
88569-89101
88569-89104
88569-89105
88688-89107
88714-30290
88718-12280
90119-06159
90179-06026
90179-06032
90179-08123
90463-15002
91611-60816
91611-60830
91651-60835
91656-40616
91666-40820
