LN65L-MRPW (1985)

Toyota Hilux

Production Aug 1985 - Aug 1988
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8808)LN56..LHD..EUR..CBU ; (8508-9508)LN61; (8508-9508)LN65..EUR,GEN,SA

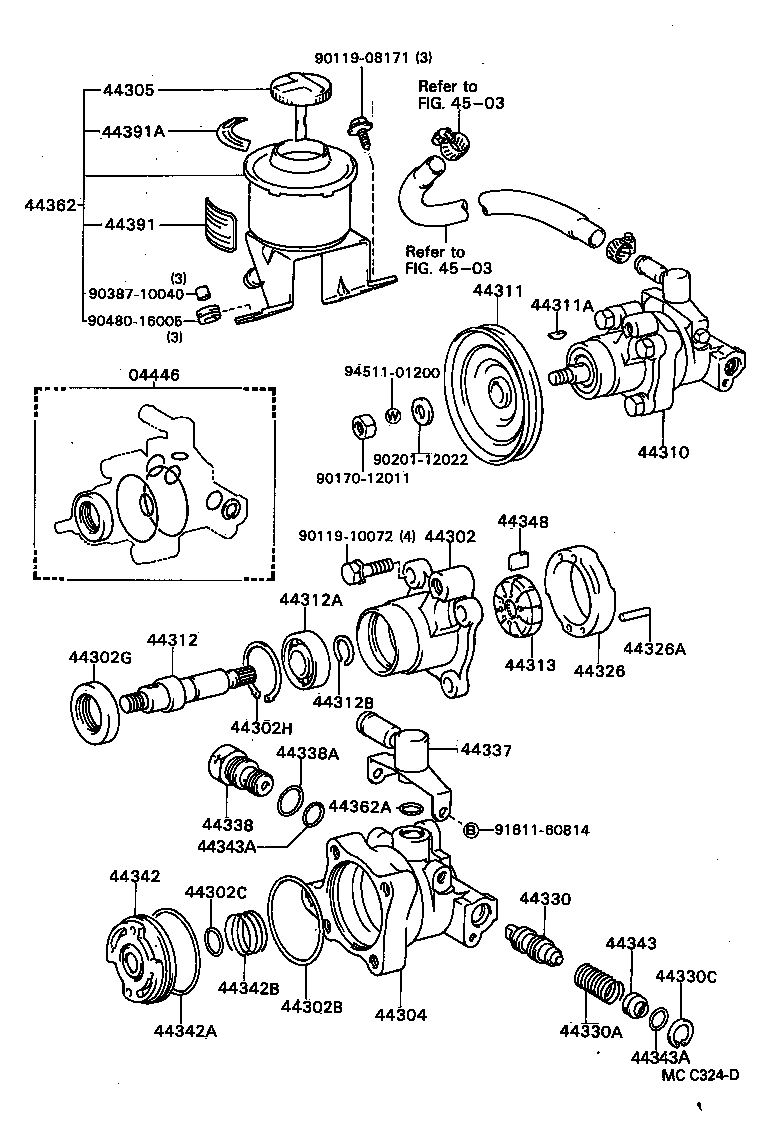

Click highlighted areas on diagram

diagram 04446 44302 44302B 44302C 44302G 44302H 44304 44305 44310 44311 44311A 44312 44312A 44312B 44313 44326 44326A 44330 44330A 44330C 44337 44338 44338A 44342 44342A 44342B 44343 44343A 44343A 44348 44362 44362A 44391 44391A 4503 4503 9011908171 9011910072 9017012011 9020112022 9038710040 9048016005 9161160814 9451101200
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-35010

LN65..LHD

 1
04446-35010

YN67..SR5;YN67..GEN,ME,SA;YN62,63,65..CBU

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-14010

YN67..SR5;YN67..GEN,ME,SA;YN62,63,65..CBU

 1
44302B - RING, O, NO.1(FOR VANE PUMP HOUSING)
90301-60001

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44302C - RING, O, NO.2(FOR VANE PUMP HOUSING)
96711-19016

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-24001

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44302H - RING, SNAP, NO.1(FOR VANE PUMP HOUSING)
90521-44002

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44304 - HOUSING SUB-ASSY, VANE PUMP, REAR
44304-28020

YN67..SR5;YN67..GEN,ME,SA;YN62,63,65..CBU

 1
44304-35040

LN65..LHD

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-30020

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44310 - PUMP ASSY, VANE
44320-35101

YN62,63,65,67..LHD..CBU

 1
44311 - PULLEY, VANE PUMP
44311-12010

YN67..SR5;YN67..GEN,ME,SA;YN62,63,65..CBU

 1
44311A - KEY, VANE PUMP PULLEY
90280-05008

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44312 - SHAFT, VANE PUMP
44312-12010

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17004

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-15001

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44313 - ROTOR, VANE PUMP
44313-12020

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK 1,MARK 1

 1
44313-12030

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK 2,MARK 2

 1
44313-12010

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

NO MARK

 1
44313-12050

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK 4,MARK 4

 1
44313-12040

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK 3,MARK 3

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-12020

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK 1,MARK 1

 1
44325-12010

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

NO MARK

 1
44325-12040

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK 3,MARK 3

 1
44325-12050

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK 4,MARK 4

 1
44325-12030

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK 2,MARK 2

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-05008

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

L=25,OD=5.0

 2
44330 - VALVE ASSY, FLOW CONTROL
44330-35080

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK B,MARK B

 1
44330-35110

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK E,MARK E

 1
44330-35100

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK D,MARK D

 1
44330-35070

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK A,MARK A

 1
44330-35090

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK C,MARK C

 1
44330-35120

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

MARK F,MARK F

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12447

LN65..EUR;YN67..EUR..CBU

 1
90501-12447

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44338 - UNION, PRESSURE PORT
44308-35020

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-22001

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

OD=25.5,ID=22.5,OD=25.5

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44341-12010

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-53002

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44342B - SPRING, COMPRESSION(FOR VANE PUMP SIDE PLATE REAR)
90501-23014

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44343 - SEAT, FLOW CONTROL SPRING
44343-12010

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44343-12010

LN65..EUR;YN67..EUR..CBU

 1
44348 - PLATE, VANE PUMP
44345-12050

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

L=14.989,ROTOR MARK 4

 10
44345-12040

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

L=14.991,ROTOR MARK 3

 10
44345-12030

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

L=14.993,ROTOR MARK 2

 10
44345-12010

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

L=14.997,ROTOR NO MARK

 10
44345-12020

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

L=14.995,ROTOR MARK 1

 10
44362 - RESERVOIR, OIL(FOR VANE PUMP)
44306-30110

YN62,63,65,67..LHD..CBU

 1
44362A - RING, O(FOR VANE PUMP OIL RESERVOIR)
96711-19013

YN67..SR5;LN61,YN62,63,65..CBU;LN65,YN67..EUR,GEN,ME,SA

 1
44391 - PLATE, POWER STEERING OIL RESERVOIR CAUTION
44391-30020

YN67..SR5;YN67..GEN,ME,SA;YN62,63,65..CBU

 1
44391-12010

LN65..LHD

 1
44391A - PLATE, OIL RESERVOIR CAUTION
44391-20010

LN65..EUR,GEN;LN6#..(DLX,SR5)..ARL

 1
44391-20010

LN61;LN65..EUR,GEN

 1
Common parts
90119-08171
90119-10072
90170-12011
90201-12022
90387-10040
90480-16005
91611-60814
94511-01200
Linked diagrams
4503
