LN65L-KRP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1985
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312-8411)TW

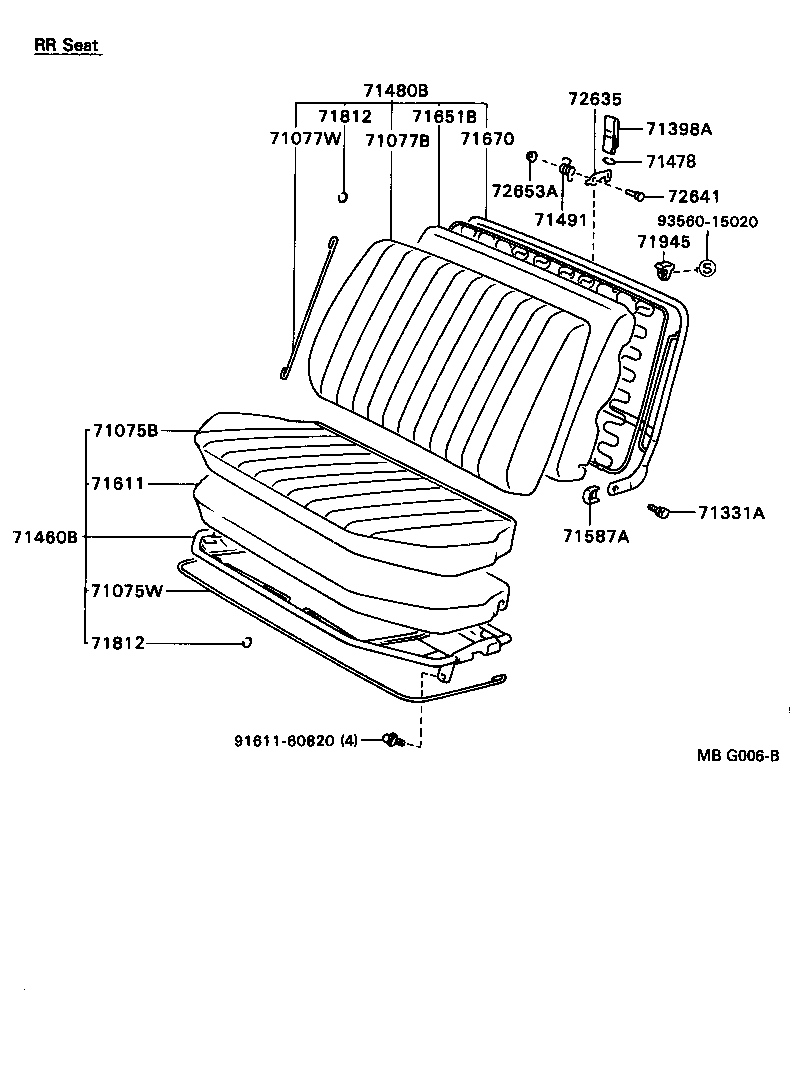

Click highlighted areas on diagram

diagram 71075B 71075W 71077B 71077W 71331A 71398A 71460B 71478 71480B 71491 71587A 71611 71651B 71670 71812 71812 71945 72635 72641 72653A 9161160820 9356015020
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-8911503

LN65,YN65..TW

F-VL,T=1.5,GRAY,GRAY,TRIM1#

 1
71075-8911504

LN65,YN65..TW

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71075-8911506

LN65,YN65..TW

F-VL,T=1.5,BROWN,BROWN,TRIM4#

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-16028

LN55,56,65,YN55,57,65..TW

L=1600

 1
90580-16025

LN55,56,65,YN55,57,65..TW

L=1100

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-8911506

LN65,YN65..TW

F-VL,T=1.5,BROWN,BROWN,TRIM4#

 1
71077-8911503

LN65,YN65..TW

F-VL,T=1.5,GRAY,GRAY,TRIM1#

 1
71077-8911504

LN65,YN65..TW

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-16007

LN55,56,65,YN55,57,65..TW

L=1180

 1
90580-16004

LN56,65,YN55,57,65..TW

L=1050

 1
90580-16041

LN55,56,65,YN55,57,65..TW

L=440

 2
90580-16014

LN55,56,65,YN55,57,65..TW

L=580

 2
90580-16003

LN56,65,YN55,57,65..TW

L=400

 2
90580-16025

LN56,65,YN55,57,65..TW

L=1100

 1
71398A - HOLDER, REAR SEAT BACK
71398-8910103

LN55,56,65,YN55,57,65..TW

LIGHT GRAY,GRAY,TRIM1#,8#

 1
71398-8910104

LN55,56,65,YN55,57,65..TW

LIGHT BLUE,BLUE,TRIM8#

 1
71398-8910106

LN55,56,65,YN55,57,65..TW

LIGHT BROWN,BROWN,TRIM4#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-8911503

LN65,YN65..TW

F-VL,T=1.5,GRAY,GRAY,TRIM1#

 1
71460-8911504

LN65,YN65..TW

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71460-8911506

LN65,YN65..TW

F-VL,T=1.5,BROWN,BROWN,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-8911506

LN65,YN65..TW

F-VL,T=1.5,BROWN,BROWN,TRIM4#

 1
71480-8911504

LN65,YN65..TW

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71480-8911503

LN65,YN65..TW

F-VL,T=1.5,GRAY,GRAY,TRIM1#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN6#

 1
Common parts
91611-60820
93560-15020

(8411- )TW

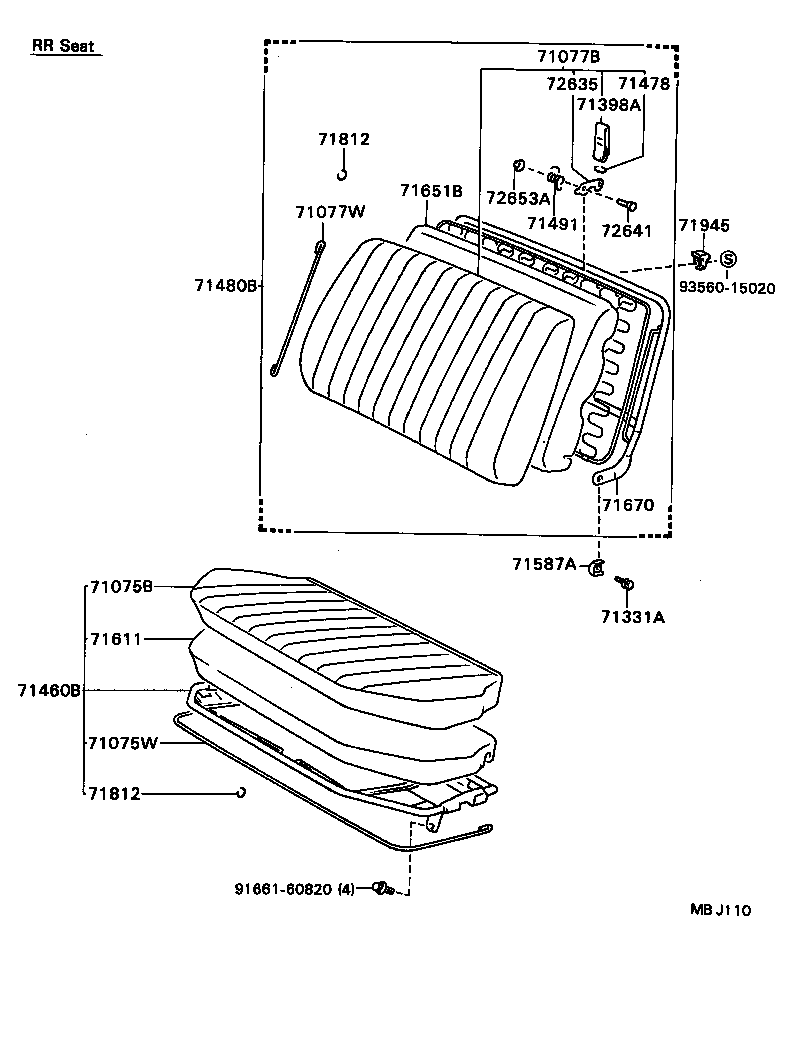

Click highlighted areas on diagram

diagram 71075B 71075W 71077B 71077W 71331A 71398A 71460B 71478 71480B 71491 71587A 71611 71651B 71670 71812 71812 71945 72635 72641 72653A 9166160820 9356015020
Part # Description Qty Price
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-8911503

LN65,YN65..TW

F-VL,T=1.5,GRAY,GRAY,TRIM1#

 1
71075-8911504

LN65,YN65..TW

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71075-8911506

LN65,YN65..TW

F-VL,T=1.5,BROWN,BROWN,TRIM4#

 1
71075W - WIRE, REAR SEAT CUSHION COVER
90580-16028

LN55,56,65,YN55,57,65..TW

L=1600

 1
90580-16025

LN55,56,65,YN55,57,65..TW

L=1100

 1
71077B - COVER, REAR SEAT BACK (FOR BENCH TYPE)
71077-8911506

LN65,YN65..TW

F-VL,T=1.5,BROWN,BROWN,TRIM4#

 1
71077-8911503

LN65,YN65..TW

F-VL,T=1.5,GRAY,GRAY,TRIM1#

 1
71077-8911504

LN65,YN65..TW

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71077W - WIRE, REAR SEAT BACK COVER
90580-16007

LN55,56,65,YN55,57,65..TW

L=1180

 1
90580-16004

LN56,65,YN55,57,65..TW

L=1050

 1
90580-16041

LN55,56,65,YN55,57,65..TW

L=440

 2
90580-16014

LN55,56,65,YN55,57,65..TW

L=580

 2
90580-16003

LN56,65,YN55,57,65..TW

L=400

 2
90580-16025

LN56,65,YN55,57,65..TW

L=1100

 1
71398A - HOLDER, REAR SEAT BACK
71398-8910103

LN55,56,65,YN55,57,65..TW

LIGHT GRAY,GRAY,TRIM1#,8#

 1
71398-8910104

LN55,56,65,YN55,57,65..TW

LIGHT BLUE,BLUE,TRIM8#

 1
71398-8910106

LN55,56,65,YN55,57,65..TW

LIGHT BROWN,BROWN,TRIM4#

 1
71460B - CUSHION ASSY, REAR SEAT (FOR BENCH TYPE)
71460-8911503

LN65,YN65..TW

F-VL,T=1.5,GRAY,GRAY,TRIM1#

 1
71460-8911504

LN65,YN65..TW

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71460-8911506

LN65,YN65..TW

F-VL,T=1.5,BROWN,BROWN,TRIM4#

 1
71480B - BACK ASSY, REAR SEAT (FOR BENCH TYPE)
71480-8911506

LN65,YN65..TW

F-VL,T=1.5,BROWN,BROWN,TRIM4#

 1
71480-8911504

LN65,YN65..TW

F-VL,T=1.5,BLUE,BLUE,TRIM8#

 1
71480-8911503

LN65,YN65..TW

F-VL,T=1.5,GRAY,GRAY,TRIM1#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN6#

 1
71812 - CLIP (FOR FRONT SEAT CUSHION COVER)
90468-18071

RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN6#

 1
Common parts
91661-60820
93560-15020
