LN65L-KRP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1985
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )TW

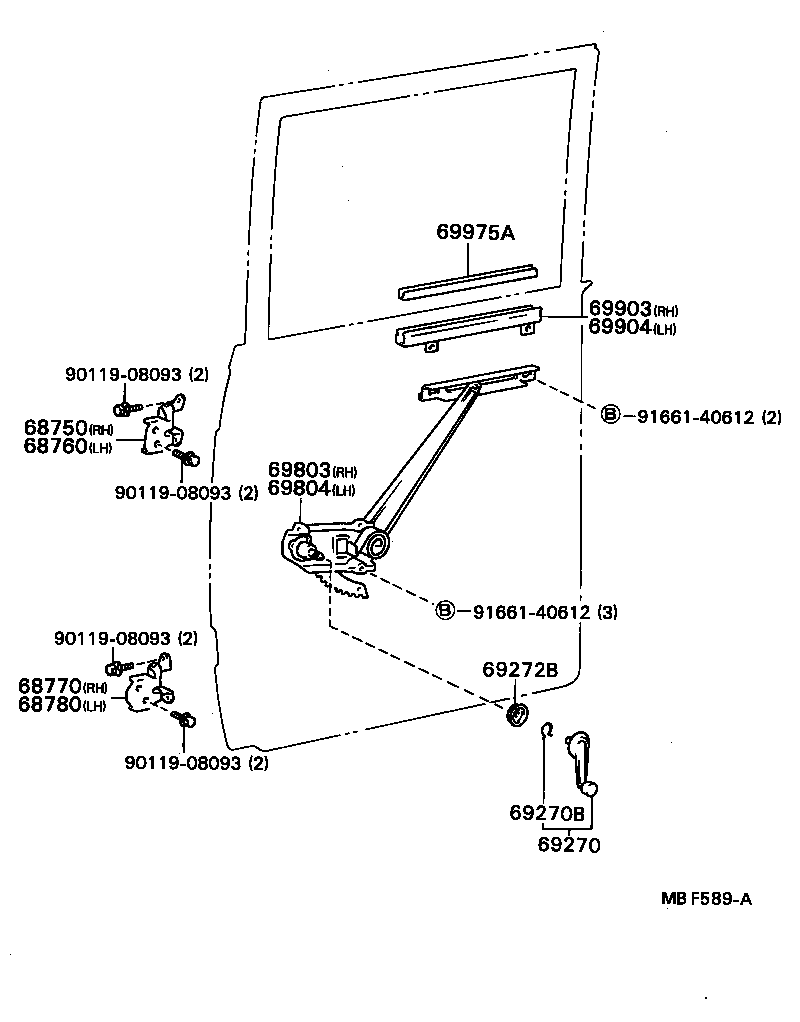

Click highlighted areas on diagram

diagram 68750 68760 68770 68780 69270 69270B 69272B 69803 69804 69903 69904 69975A 9011908093 9011908093 9011908093 9011908093 9166140612 9166140612
Part # Description Qty Price
69270 - HANDLE ASSY, REAR DOOR WINDOW REGULATOR
69260-1004056

LN55,56,65,YN55,57,65..TW

BROWN,BROWN,TRIM4#

 2
69260-1004013

LN55,56,65,YN55,57,65..TW

GRAY,GRAY,TRIM1#

 2
69260-1004014

LN55,56,65,YN55,57,65..TW

BLUE,BLUE,TRIM8#

 2
69272B - PLATE, REAR DOOR REGULATOR INSIDE HANDLE
69266-22010

LN55,56,65,YN55,57,65..TW

 2
Common parts
90119-08093
91661-40612
