LN65L-KRP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1985
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )LN65,RN67,YN65,67..TW

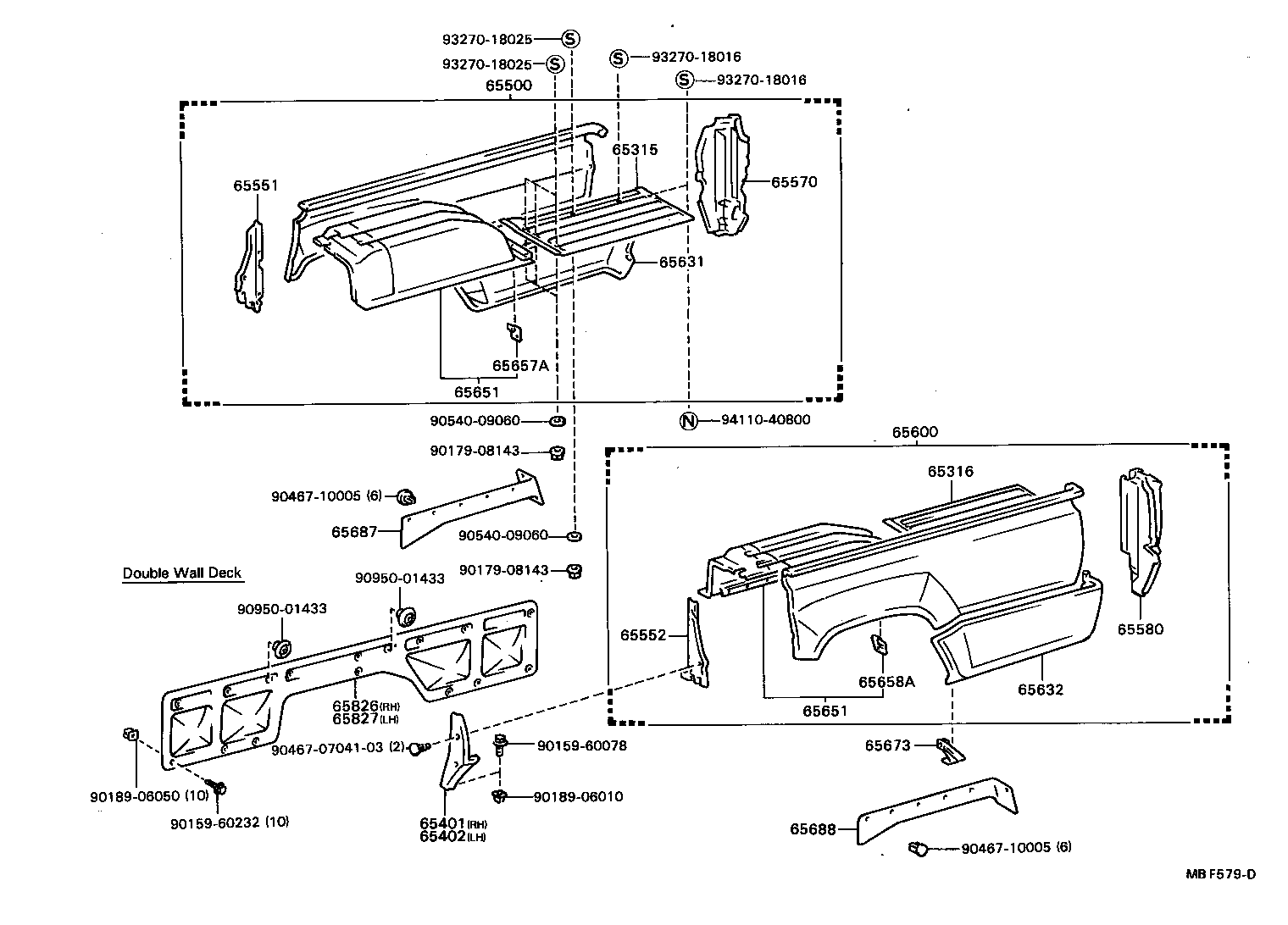

Click highlighted areas on diagram

diagram 65315 65316 65401 65402 65500 65551 65552 65570 65580 65600 65631 65632 65651 65651 65657A 65658A 65673 65687 65688 65826 65827 9015960078 9015960232 9017908143 9017908143 9018906010 9018906050 904670704103 9046710005 9046710005 9054009060 9054009060 9095001433 9095001433 9327018016 9327018016 9327018025 9327018025 9411040800
Part # Description Qty Price
65570 - POST ASSY, SIDE PANEL REAR END, RH
65505-89101

LN56..LHD..(T1,TW)..GEN..CBU;LN56..RHD..(T1,TW)..STD..(EUR,GEN,SA)..CBU;LN50,51,55,6#,YN5#,6#..(T1,TW)..(DLX,STD)..(EUR,GEN,ME,SA)..CBU

 1
65580 - POST ASSY, SIDE PANEL REAR END, LH
65506-89101

LN56..LHD..(T1,TW)..GEN..CBU;LN56..RHD..(T1,TW)..STD..(EUR,GEN,SA)..CBU;LN50,51,55,6#,YN5#,6#..(T1,TW)..(DLX,STD)..(EUR,GEN,ME,SA)..CBU

 1
65631 - SKIRT, SIDE PANEL, REAR RH
65623-89120

LN65,YN65..TW..(ARL,GEN,ME)

 1
65632 - SKIRT, SIDE PANEL, REAR, LH
65624-89121

LN65,YN65..TW..(ARL,GEN,ME)

 1
65657A - BRACKET, WHEEL HOUSE SEAL, REAR RH
65657-89101

LN60,65,67,RN67,YN60,62,65,67..(T1,TW)..CBU

 1
65658A - BRACKET, WHEEL HOUSE SEAL, REAR LH
65658-89102

LN60,65,67,RN67,YN60,62,65,67..(T1,TW)..CBU

 1
65673 - BRACE, SIDE PANEL SKIRT, REAR
65673-89104

LN60,65,67,RN67,YN60,62,65,67..(T1,TW)..CBU

RH

 1
65674-89104

LN60,65,67,RN67,YN60,62,65,67..(T1,TW)..CBU

LH

 1
Common parts
90159-60078
90159-60232
90179-08143
90189-06010
90189-06050
90467-0704103
90467-10005
90540-09060
90950-01433
93270-18016
93270-18025
94110-40800
