LN65L-KRP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1985
Engine 2L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )TW

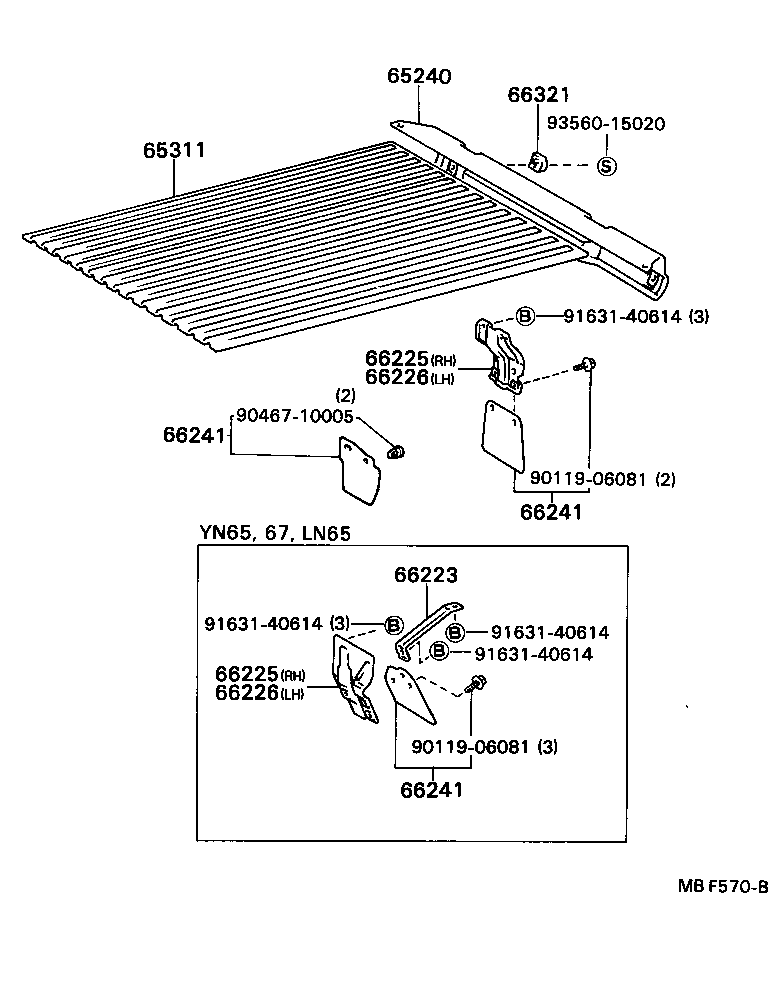

Click highlighted areas on diagram

diagram 65240 65311 66223 66225 66225 66226 66226 66241 66241 66241 66321 9011906081 9011906081 9046710005 9163140614 9163140614 9163140614 9163140614 9356015020
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-89117

LN5#,6#,YN50,52,55,57,6#..(T1,TW)..(ARL,GEN,ME,SA)..CBU

 1
65240-89120

LN56..LHD..EUR..CBU;LN5#,6#,YN50,52,55,57,6#..(T1,TW)..(ARL,GEN,ME,SA)..CBU

 1
66223 - STAY, REAR FENDER REAR PLATE
66299-89101

LN60,65,RN67,YN60,62,65,67..(T1,TW)..CBU

 2
66225 - SUPPORT, REAR MUDGUARD, RH
76647-89102

LN60,65,RN67,YN60,62,65,67..(T1,TW)..CBU

 1
66225 - SUPPORT, REAR MUDGUARD, RH
76647-89102

LN60,65,RN67,YN60,62,65,67..(T1,TW)..CBU

 1
66226 - SUPPORT, REAR MUDGUARD, LH
76648-89102

LN60,65,RN67,YN60,62,65,67..(T1,TW)..CBU

 1
66226 - SUPPORT, REAR MUDGUARD, LH
76648-89102

LN60,65,RN67,YN60,62,65,67..(T1,TW)..CBU

 1
66321 - BUMPER, GATE RUBBER
65739-89101

LN50,55,6#,YN50,52,55,57,6#..(T1,TW)..(GEN,ME)..CBU

W/RR BUMPER

 2
Common parts
90119-06081
90467-10005
91631-40614
93560-15020
