LN61RG-MSQ (1985)
Toyota Hilux
ILLUST NO. 1 OF 2(8308-9201)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16080 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35320 |
LN5#,6# AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35550 |
LN61 AISIN,8INCHES |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35500 |
LN5#,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35460 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35790 |
LN61 AISIN,8INCHES |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
RN5#,61 |
1 | ||
| 44730-60040 |
LN5#,6# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35080 |
RN5#,61 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||
ILLUST NO. 1 OF 2(8308-9407) ; (9407- )LN5#,6#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04443 - BOOSTER KIT, BRAKE | ||||
| 04443-16080 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35320 |
LN5#,6# AISIN,8INCHES,FR DISC |
1 | ||
| 04443-35550 |
LN61 AISIN,8INCHES |
1 | ||
| 44608 - PUSH ROD SUB-ASSY, BOOSTER | ||||
| 44606-12520 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-35500 |
LN5#,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35460 |
YN50,55,56,57,6#..RHD AISIN,8INCHES,FR DISC |
1 | ||
| 44610-35790 |
LN61 AISIN,8INCHES |
1 | ||
| 44618 - SEAL, BOOSTER BODY | ||||
| 44621-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# |
1 | ||
| 44629 - RING, CIRCULAR INTERNAL | ||||
| 44628-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44642 - PISTON, BRAKE BOOSTER | ||||
| 44642-16050 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# AISIN,8INCHES |
1 | ||
| 44642-12520 |
LN61,RN61,YN63 |
1 | ||
| 44663 - KEY, VALVE STOPPER | ||||
| 44635-28120 |
YN56..RHD;LN5#,6#,YN50,52,55,57,6# |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
RN5#,61 |
1 | ||
| 44730-60040 |
LN5#,6# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35080 |
RN5#,61 |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08038 | ||||

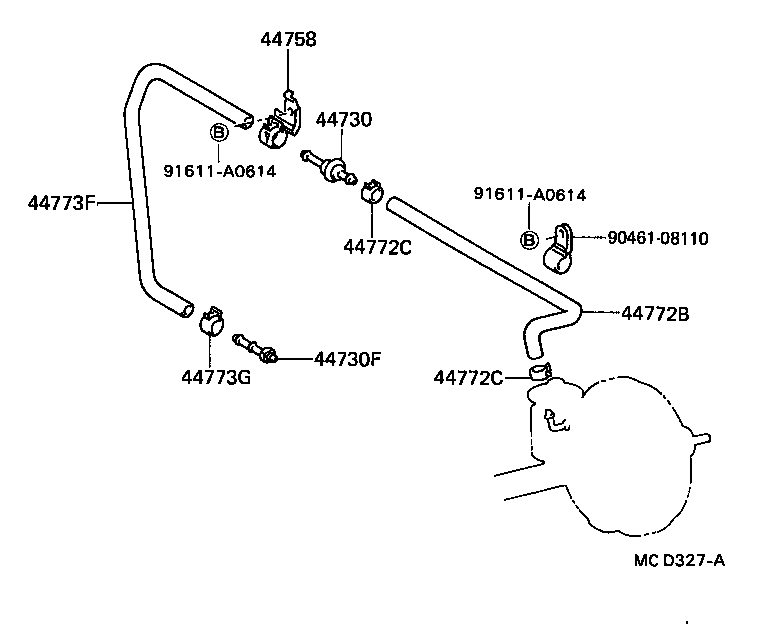

ILLUST NO. 2 OF 2(8601-8903)RN5#,61
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-10010 |
RN5#,61 |
1 | ||
| 44730-60040 |
LN5#,6# |
1 | ||
| 44758 - BRACKET, VACUUM CHECK VALVE | ||||
| 44758-35080 |
RN5#,61 |
1 | ||
| 44772B - HOSE, CHECK VALVE TO BRAKE BOOSTER | ||||
| 44772-35050 |
YN50,55,56,57,6#..RHD W/TANDEM MASTER CYLINDER |
1 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
RN58..SR5;RN50,55,6#,YN5#,6# |
2 | ||
| 44772C - CLIP(FOR CHECK VALVE TO BRAKE BOOSTER HOSE) | ||||
| 90467-16002 |
RN58..SR5;RN50,55,6#,YN5#,6# |
2 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-35270 |
LN61 |
1 | ||
| 44773G - CLIP(FOR UNION TO CHECK VALVE HOSE) | ||||
| 90467-16002 |
LN5#,6#,RN5#,6#,YN5#,6# |
2 | ||
| Common parts | ||||
| 90461-08110 | ||||
| 91611-A0614 | ||||
