LN61RG-MDQ (1985)

Toyota Hilux

Production Aug 1985 - Mar 1989
Engine 2L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508-8903)LN61,YN63..DLX

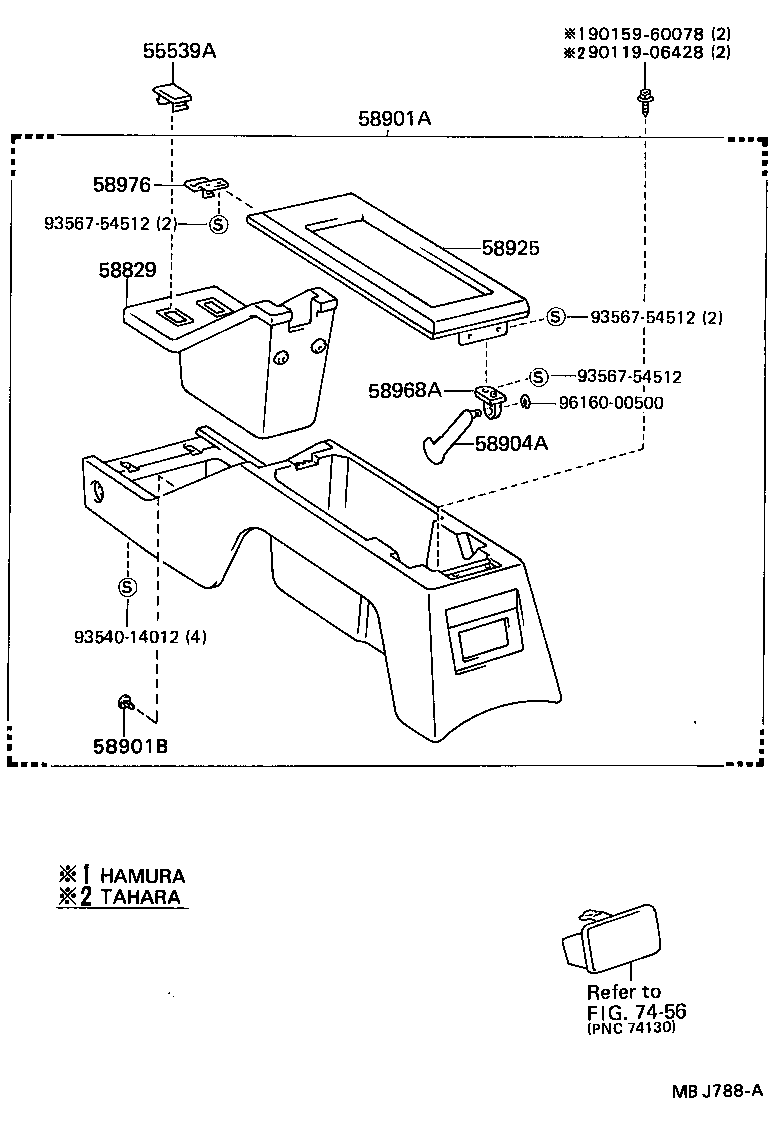

Click highlighted areas on diagram

diagram 55539A 58829 58901A 58901B 58904A 58925 58968A 58976 7456 9011906428 9015960078 9354014012 9356754512 9356754512 9356754512 9616000500
Part # Description Qty Price
55539A - COVER, SPARE SWITCH HOLE
55539-2002001

LN61,YN63..DLX

W/O RR WIPER,BLACK,BLACK

 1
58901A - BOX SUB-ASSY, CONSOLE, REAR
58901-8911406

LN61,YN63..DLX

BROWN,BROWN,TRIM4#

 1
58901-8911403

LN61,YN63..DLX

GRAY,GRAY,TRIM1#

 1
58901-8911404

LN61,YN63..DLX

BLUE,BLUE,TRIM8#

 1
58901B - PLUG, HOLE(FOR REAR CONSOLE BOX)
90950-0145701

LN61,YN63..DLX

BLACK,BLACK

 2
58925 - LID, REAR CONSOLE ARMREST
58925-8910103

LN61,YN63..DLX

GRAY,GRAY,TRIM1#

 1
58925-8910104

LN61,YN63..DLX

BLUE,BLUE,TRIM8#

 1
58925-8910106

LN61,YN63..DLX

BROWN,BROWN,TRIM4#

 1
Common parts
90119-06428
90159-60078
93540-14012
93567-54512
96160-00500
Linked diagrams
7456
