LN57R-MDPN (1995)

Toyota Hilux

Production Aug 1995 - Jul 1998
Engine 3L
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9508- )2L,3L

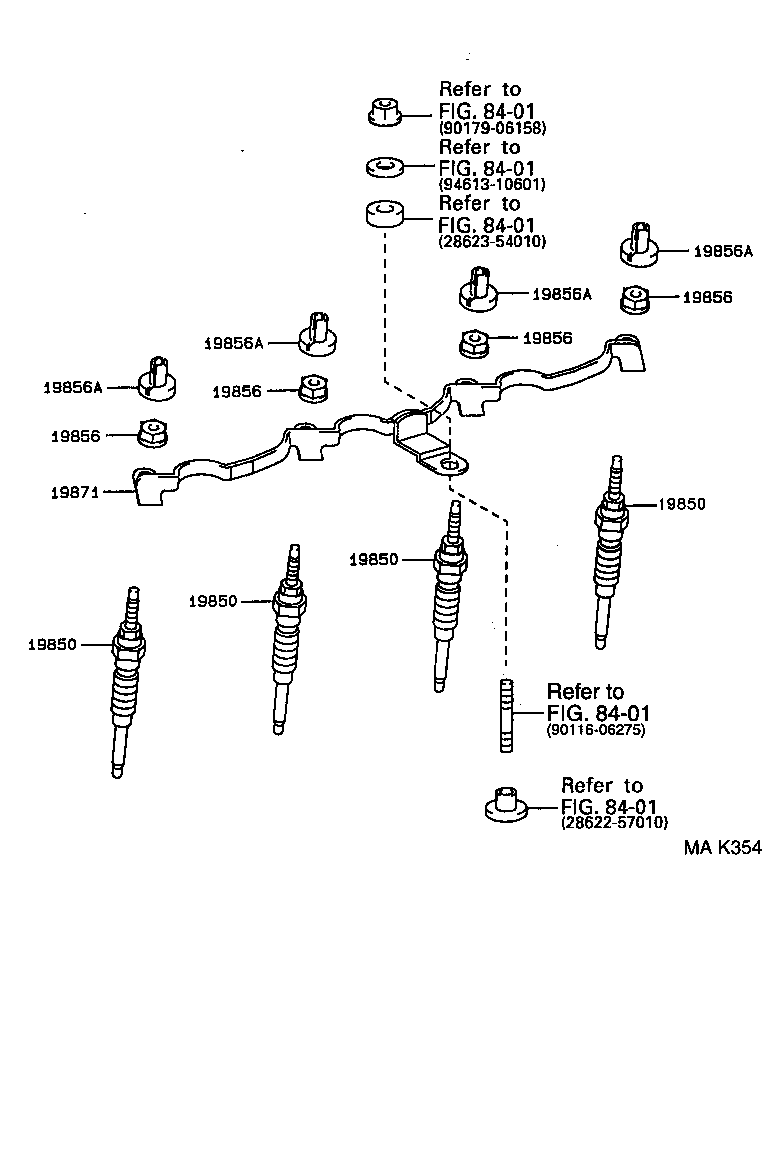

Click highlighted areas on diagram

diagram 19850 19850 19850 19850 19856 19856 19856 19856 19856A 19856A 19856A 19856A 19871 8401 8401 8401 8401 8401
Part # Description Qty Price
19850 - PLUG ASSY, GLOW
19850-54030

2L..LN56..LHD..EUR..CBU;L,2L..LN5#,6#..ARL,GEN,SA

*12V-11V

 4
19850-54090

2L,3L..LN5#,67

*BV-GV=12V-11V,*12V-11V

 4
19850 - PLUG ASSY, GLOW
19850-54030

2L..LN56..LHD..EUR..CBU;L,2L..LN5#,6#..ARL,GEN,SA

*12V-11V

 4
19850-54090

2L,3L..LN5#,67

*BV-GV=12V-11V,*12V-11V

 4
19850 - PLUG ASSY, GLOW
19850-54030

2L..LN56..LHD..EUR..CBU;L,2L..LN5#,6#..ARL,GEN,SA

*12V-11V

 4
19850-54090

2L,3L..LN5#,67

*BV-GV=12V-11V,*12V-11V

 4
19850 - PLUG ASSY, GLOW
19850-54030

2L..LN56..LHD..EUR..CBU;L,2L..LN5#,6#..ARL,GEN,SA

*12V-11V

 4
19850-54090

2L,3L..LN5#,67

*BV-GV=12V-11V,*12V-11V

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

2L,3L..LN5#,67

 4
90170-04002

L,2L..LN5#,6#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

2L,3L..LN5#,67

 4
90170-04002

L,2L..LN5#,6#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

2L,3L..LN5#,67

 4
90170-04002

L,2L..LN5#,6#

 4
19856 - NUT, CONNECTING(FOR GLOW PLUG)
90179-04030

2L,3L..LN5#,67

 4
90170-04002

L,2L..LN5#,6#

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

2L,3L..LN5#,67

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

2L,3L..LN5#,67

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

2L,3L..LN5#,67

 4
19856A - GROMMET, SCREW(FOR, GLOW PLUG CONNECTOR)
90189-04024

2L,3L..LN5#,67

 4
19871 - CONNECTOR, GLOW PLUG NO.1
19871-54010

L,2L..LN5#,6#

 1
19871-54020

2L,3L..LN5#,67

 1
Linked diagrams
8401
