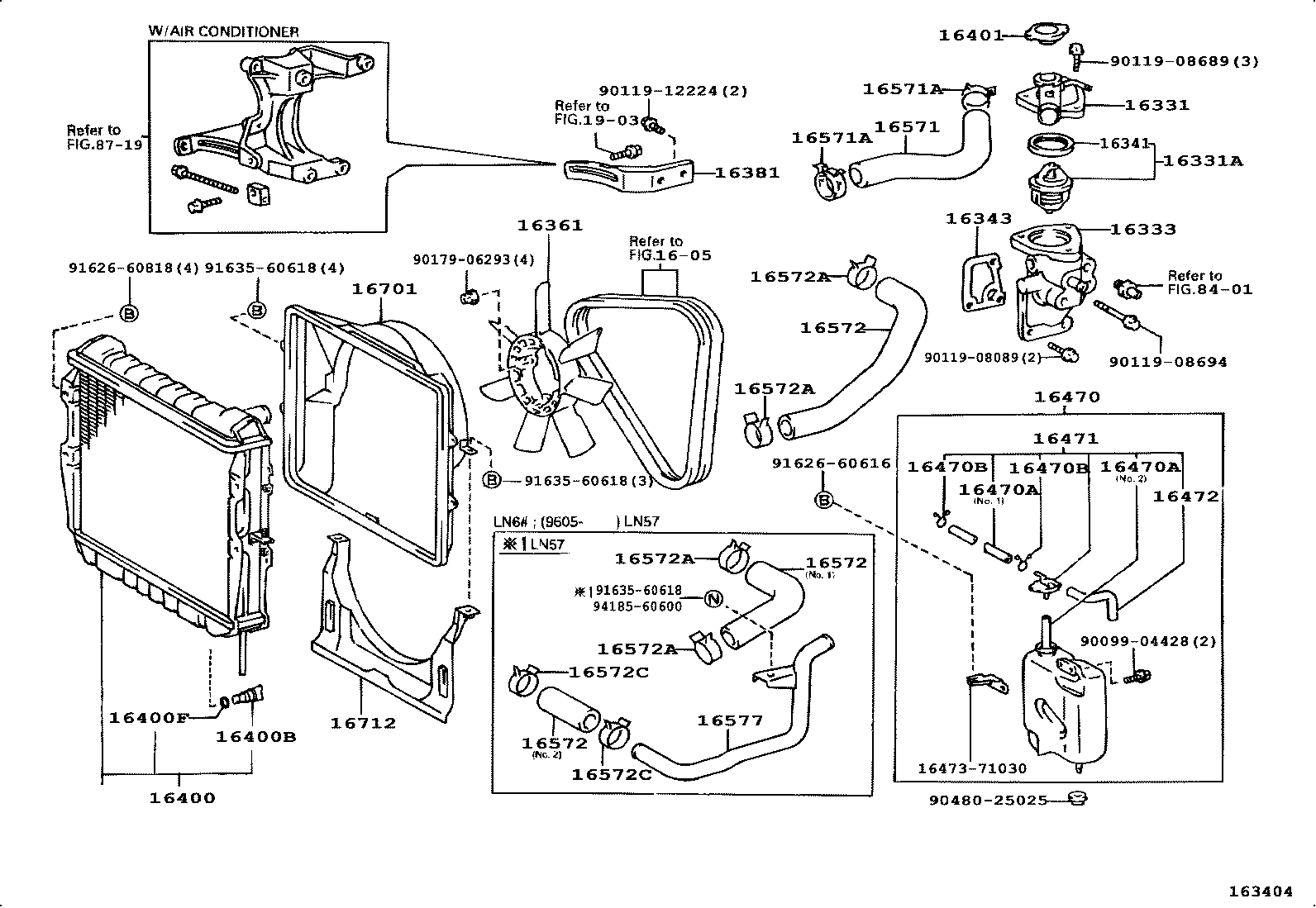

LN57R-MDN (1995)
Toyota Hilux
(9508- )2L,3L
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 16331 - OUTLET, WATER | ||||
| 16331-54180 |
2L,3L..LN5#,67 |
1 | ||
| 16331-54030 |
L,2L..LN5#,6# |
1 | ||
| 16331A - THERMOSTAT | ||||
| 90916-03062 |
L,2L..LN5#,6# *WAX 88-100 |
1 | ||
| 16340-54010 |
2L,3L..LN5#,67 *WAX 88-100 |
1 | ||
| 16340-54040 |
2L,3L..LN5#,67 *WAX 82-95,THAILAND SPEC |
1 | ||
| 16333 - HOUSING, WATER OUTLET | ||||
| 16333-54200 |
2L,3L..LN5#,67 |
1 | ||
| 16333-54050 |
L,2L..LN5#,6# |
1 | ||
| 16341 - GASKET, WATER OUTLET | ||||
| 16341-54011 |
L,2L..LN5#,6# |
1 | ||
| 16341-35010 |
2L,3L..LN5#,67 |
1 | ||
| 16343 - GASKET, WATER OUTLET HOUSING | ||||
| 16343-54011 |
L,2L..LN5#,6# |
1 | ||
| 16343-54040 |
2L,3L..LN5#,67 |
1 | ||
| 16361 - FAN | ||||
| 16361-54040 |
2L,3L..LN5#,67 |
1 | ||
| 16381 - BAR, FAN BELT ADJUSTING | ||||
| 16381-54060 |
2L,3L..LN5#,67 |
1 | ||
| 16381-54011 |
L,2L..LN5#,6# |
1 | ||
| 16400 - RADIATOR ASSY | ||||
| 16400-5B180 |
2L,3L..LN5# W/O CAP |
1 | ||
| 16400-5B430 |
3L..LN57 |
1 | ||
| 16400B - PLUG, RADIATOR DRAIN COCK | ||||
| 90910-09099 |
3L..LN57 |
1 | ||
| 90910-09054 |
L,2L,3L..LN5#,6# |
1 | ||
| 16400F - PACKING(FOR RADIATOR DRAIN COCK) | ||||
| 96711-19007 |
L,2L,3L..LN5#,6# |
1 | ||
| 16401 - CAP SUB-ASSY, RADIATOR | ||||
| 16401-36011 |
L,2L..LN5#,6# |
1 | ||
| 16470 - TANK ASSY, RADIATOR RESERVE | ||||
| 16470-54270 |
2L,3L..LN5#,67 |
1 | ||
| 16470-54060 |
L,2L..LN5#,6# |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12049 |
L,2L..LN5#,6# NO.1 |
1 | ||
| 90445-12078 |
2L,3L..LN5#,67 *H,L=430,NO.1 |
1 | ||
| 16470A - HOSE OR PIPE(FOR RADIATOR RESERVE TANK) | ||||
| 90445-12049 |
L,2L..LN5#,6# NO.1 |
1 | ||
| 90445-12078 |
2L,3L..LN5#,67 *H,L=430,NO.1 |
1 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L,3L..LN5#,6# |
2 | ||
| 16470B - CLAMP OR CLIP(FOR RADIATOR RESERVE TANK HOSE) | ||||
| 90467-11085 |
L,2L,3L..LN5#,6# |
2 | ||
| 16471 - CAP SUB-ASSY, RESERVE TANK | ||||
| 16405-54240 |
2L,3L..LN5#,67 |
1 | ||
| 16405-54070 |
L,2L..LN5#,6# |
1 | ||
| 16571 - HOSE, RADIATOR, INLET | ||||
| 16571-54130 |
L,2L..LN5#,6# |
1 | ||
| 16571-54440 |
2L,3L..LN5#,67 |
1 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LN5#,6# |
2 | ||
| 16571A - CLAMP OR CLIP, HOSE(FOR RADIATOR INLET) | ||||
| 90467-37001 |
L,2L..LN5#,6# |
2 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54100 |
L,2L..LN5# |
1 | ||
| 16572-54250 |
2L,3L..LN5# |
1 | ||
| 16572-54390 |
3L..LN57 NO.1 |
1 | ||
| 16573-54100 |
3L..LN57 NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54100 |
L,2L..LN5# |
1 | ||
| 16572-54250 |
2L,3L..LN5# |
1 | ||
| 16572-54390 |
3L..LN57 NO.1 |
1 | ||
| 16573-54100 |
3L..LN57 NO.2 |
1 | ||
| 16572 - HOSE, RADIATOR, OUTLET | ||||
| 16572-54100 |
L,2L..LN5# |
1 | ||
| 16572-54250 |
2L,3L..LN5# |
1 | ||
| 16572-54390 |
3L..LN57 NO.1 |
1 | ||
| 16573-54100 |
3L..LN57 NO.2 |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-41001 |
2L,3L..LN5#,67 WATER PUMP SIDE |
1 | ||
| 90467-37002 |
2L,3L..LN5#,67 RADIATOR SIDE |
1 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-41001 |
2L,3L..LN5#,67 WATER PUMP SIDE |
1 | ||
| 90467-37002 |
2L,3L..LN5#,67 RADIATOR SIDE |
1 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-41001 |
2L,3L..LN5#,67 WATER PUMP SIDE |
1 | ||
| 90467-37002 |
2L,3L..LN5#,67 RADIATOR SIDE |
1 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572A - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1) | ||||
| 96111-10460 |
L,2L..LN5#,6# RADIATOR SIDE |
1 | ||
| 90467-41001 |
2L,3L..LN5#,67 WATER PUMP SIDE |
1 | ||
| 90467-37002 |
2L,3L..LN5#,67 RADIATOR SIDE |
1 | ||
| 96111-10500 |
L,2L..LN5#,6# WATER PUMP SIDE |
1 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-37002 |
3L..LN57 |
2 | ||
| 16572C - CLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.2) | ||||
| 90467-37002 |
3L..LN57 |
2 | ||
| 16577 - PIPE, RADIATOR, NO.7 | ||||
| 16577-54150 |
3L..LN57 |
1 | ||
| 16701 - SHROUD SUB-ASSY, FAN | ||||
| 16711-54110 |
L,2L..LN5# |
1 | ||
| 16711-54270 |
2L,3L..LN5# |
1 | ||
| 16711-54420 |
3L..LN57 |
1 | ||
| 16712 - SHROUD, FAN, NO.2 | ||||
| 16712-54190 |
2L,3L..LN5# W/COOLER |
1 | ||
| 16712-54290 |
3L..LN57 W/COOLER |
1 | ||
| 16712-54080 |
2L..LN65..STD..ARL;L,2L..LN5#..ARL,GEN,SA;2L..LN56..LHD..RCB..EUR..CBU W/COOLER OR THAILAND SPEC |
1 | ||
| Common parts | ||||
| 16473-71030 | ||||
| 90099-04428 | ||||
| 90119-08089 | ||||
| 90119-08689 | ||||
| 90119-08694 | ||||
| 90119-12224 | ||||
| 90179-06293 | ||||
| 90480-25025 | ||||
| 91626-60616 | ||||
| 91626-60818 | ||||
| 91635-60618 | ||||
| 94185-60600 | ||||
| Linked diagrams | ||||
| 1605 | ||||
| 1903 | ||||
| 8401 | ||||
| 8719 | ||||
