LN55R-MRN (1983)
Toyota Hilux
(8308- )LN5#,RN5#,YN5#

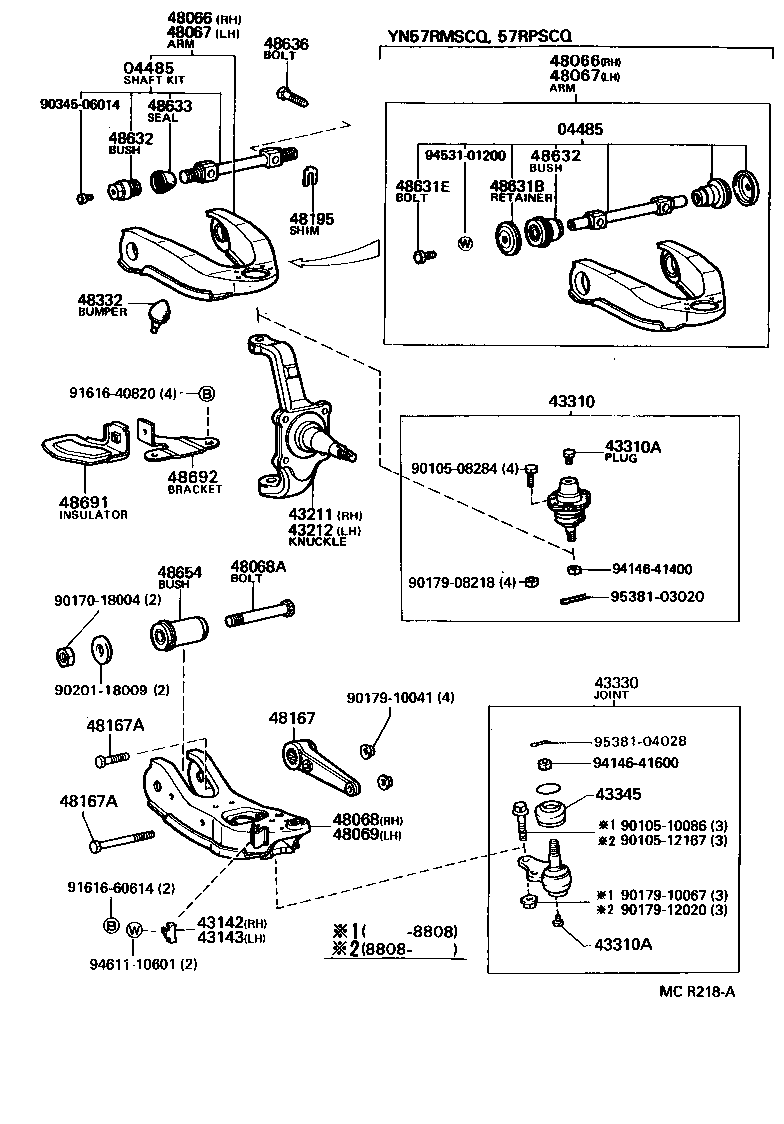

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-35020 |
YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F |
2 | ||
| 04485 - SHAFT KIT, UPPER SUSPENSION ARM | ||||
| 04485-35020 |
YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F |
2 | ||
| 43211 - KNUCKLE, STEERING, RH | ||||
| 43211-35070 |
LN5#,RN5#,YN5# FR DISC BRAKE |
1 | ||
| 43212 - KNUCKLE, STEERING, LH | ||||
| 43212-35040 |
LN5#,RN5#,YN5# FR DISC BRAKE |
1 | ||
| 43310 - JOINT ASSY, UPPER BALL | ||||
| 43350-39035 |
LN5#,RN5#,YN5# |
2 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F |
2 | ||
| 43310A - PLUG (FOR BALL JOINT) | ||||
| 90345-06014 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,61,RN50,55,61,YN50,51,52,55,56,57,63..4F,4FC,4H,5F |
2 | ||
| 43330 - JOINT ASSY, LOWER BALL, FRONT | ||||
| 43330-39165 |
LN5#,RN5#,YN5# RH |
1 | ||
| 43340-39145 |
LN5#,RN5#,YN5# LH |
1 | ||
| 43345 - COVER, LOWER BALL JOINT DUST | ||||
| 43345-26010 |
LN50,51,55,56,YN50,52,55,56,57..4F,4FC,4H,5F |
2 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-35050 |
YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F |
1 | ||
| 48066 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER RH | ||||
| 48066-35050 |
YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48066-35050 |
YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F |
1 | ||
| 48067 - ARM SUB-ASSY, FRONT SUSPENSION, UPPER LH | ||||
| 48066-35050 |
YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F |
1 | ||
| 48068 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 RH | ||||
| 48605-35060 |
LN5#,YN5# |
1 | ||
| 48068A - BOLT(FOR FRONT SUSPENSION LOWER ARM) | ||||
| 90114-18003 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
2 | ||
| 48069 - ARM SUB-ASSY, FRONT SUSPENSION, LOWER NO.1 LH | ||||
| 48606-35060 |
LN5#,YN5# |
1 | ||
| 48167 - ARM, TORQUE | ||||
| 48167-35020 |
LN5#,RN5#,YN5# |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-10087 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F L=127 |
2 | ||
| 90105-10088 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F L=26 |
2 | ||
| 48167A - BOLT(FOR TORQUE ARM SETTING) | ||||
| 90105-10087 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F L=127 |
2 | ||
| 90105-10088 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F L=26 |
2 | ||
| 48195 - SHIM, CAMBER ADJUST | ||||
| 90565-12004 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F T=4.0,T=4.0 |
8 | ||
| 90565-12009 |
LN5#,RN5#,YN5# T=1.2,T=1.2 |
12 | ||
| 90565-12008 |
LN5#,RN5#,YN5# T=1.6,T=1.6 |
12 | ||
| 48332 - BUMPER, FRONT SPRING, NO.2 | ||||
| 48332-35020 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
4 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30012 |
YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F |
2 | ||
| 48632 - BUSH, UPPER ARM | ||||
| 48632-30012 |
YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F |
2 | ||
| 48633 - SEAL, UPPER ARM PIVOT DUST | ||||
| 48633-35010 |
YN58..4F;YN58..SR5,STD;YN57..DLX,STD;YN57..4FC..SR5;YN57..SR5..(GEN,SA);LN50,51,55,56,RN50,55,YN50,51,52,55,56..4F,4FC,4H,5F |
2 | ||
| 48636 - BOLT, UPPER ARM SET | ||||
| 90105-12080 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
4 | ||
| 48654 - BUSH, LOWER ARM | ||||
| 48654-35030 |
LN5#,YN5# |
2 | ||
| 48691 - INSULATOR, UPPER ARM BUSH, HEAT | ||||
| 48691-35010 |
YN50,52,55,57 |
1 | ||
| 48692 - BRACKET, UPPER ARM BUSH INSULATOR | ||||
| 48692-35010 |
YN50,52,55,57 |
1 | ||
| Common parts | ||||
| 90105-08284 | ||||
| 90105-10086 | ||||
| 90105-12167 | ||||
| 90170-18004 | ||||
| 90179-08218 | ||||
| 90179-10041 | ||||
| 90179-10067 | ||||
| 90179-12020 | ||||
| 90201-18009 | ||||
| 90345-06014 | ||||
| 91616-40820 | ||||
| 91616-60614 | ||||
| 94146-41400 | ||||
| 94146-41600 | ||||
| 94531-01200 | ||||
| 94611-10601 | ||||
| 95381-03020 | ||||
| 95381-04028 | ||||
