LN55R-MRN (1983)
Toyota Hilux
(8308-8508)LN5#,6#,YN56,6#..5F ; (8508-8903)LN5#,6#,RN5#,YN51,52,56,57,58,6#..5F ;

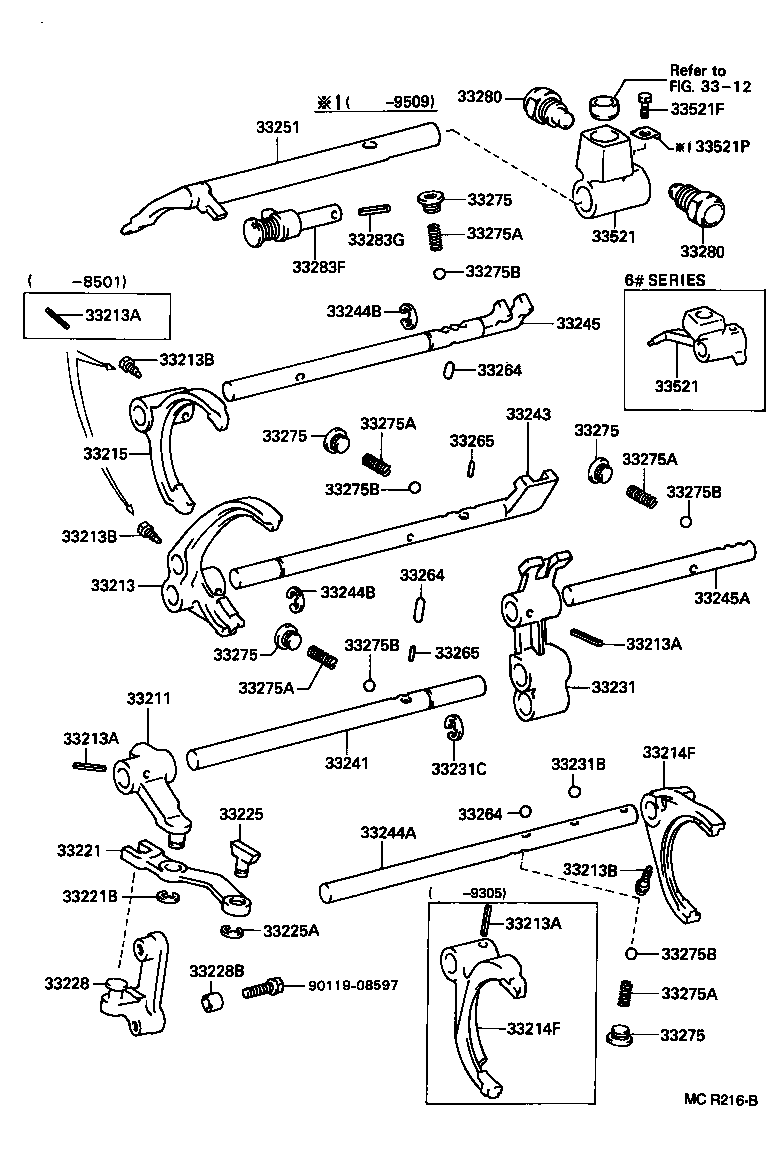

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33211 - FORK, REVERSE SHIFT | ||||
| 33211-28010 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33213 - FORK, 1ST & 2ND SHIFT | ||||
| 33212-35022 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33213A - PIN, SLOTTED SPRING(FOR SHIFT FORK SET) | ||||
| 90254-05001 |
LN5#,6#,YN5#,6#..MTM |
5 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33214F - FORK, 5TH SHIFT | ||||
| 33214-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33215 - FORK, 3RD & 4TH SHIFT | ||||
| 33213-35031 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33221 - ARM, REVERSE SHIFT | ||||
| 33221-28010 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33221B - RING, E(FOR REVERSE SHIFT ARM) | ||||
| 96160-01000 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33225A - RING, SHAFT SNAP(FOR SHIFT ARM SHOE) | ||||
| 96160-00800 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33228 - BRACKET, REVERSE SHIFT ARM | ||||
| 33228-28010 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33228B - PIN, RING(FOR REVERSE SHIFT ARM BRACKET) | ||||
| 90253-11001 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33231 - HEAD, REVERSE SHIFT | ||||
| 33231-35040 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33231B - BALL, REVERSE SHIFT RESTRICT | ||||
| 90360-10003 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33231C - RING(FOR REVERSE SHIFT HEAD) | ||||
| 90523-12001 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33241 - SHAFT, REVERSE SHIFT FORK | ||||
| 33244-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33243 - SHAFT, 1ST & 2ND SHIFT FORK | ||||
| 33242-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33244A - SHAFT, 5TH SHIFT FORK | ||||
| 33245-35040 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90523-12001 |
LN5#,6#,YN56,6#..5F |
2 | ||
| 33244B - RING, SHAFT SNAP (FOR SHIFT FORK SHAFT) | ||||
| 90523-12001 |
LN5#,6#,YN56,6#..5F |
2 | ||
| 33245 - SHAFT, 3RD & 4TH SHIFT FORK | ||||
| 33243-35040 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33245A - SHAFT, 5TH SHIFT ARM | ||||
| 33246-35020 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33251 - LEVER, SHIFT & SELECT | ||||
| 33251-35060 |
LN5#,YN56..5F |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LN5#,6#,YN56,6#..5F L=13.6,OD=9.5,PIN,L=13.6 |
1 | ||
| 90360-10003 |
LN5#,6#,YN56,6#..5F OD=9.52,STEEL,BALL |
1 | ||
| 90361-10002 |
LN5#,6#,YN56,6#..5F L=21.6,PIN,PIN,L=21.6 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LN5#,6#,YN56,6#..5F L=13.6,OD=9.5,PIN,L=13.6 |
1 | ||
| 90360-10003 |
LN5#,6#,YN56,6#..5F OD=9.52,STEEL,BALL |
1 | ||
| 90361-10002 |
LN5#,6#,YN56,6#..5F L=21.6,PIN,PIN,L=21.6 |
1 | ||
| 33264 - PIN, OR BALL, SHIFT INTER LOCK, NO.1 | ||||
| 90361-10003 |
LN5#,6#,YN56,6#..5F L=13.6,OD=9.5,PIN,L=13.6 |
1 | ||
| 90360-10003 |
LN5#,6#,YN56,6#..5F OD=9.52,STEEL,BALL |
1 | ||
| 90361-10002 |
LN5#,6#,YN56,6#..5F L=21.6,PIN,PIN,L=21.6 |
1 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LN5#,6#,YN56,6#..5F L=11.1,OD=4.8 |
2 | ||
| 33265 - PIN, SHIFT INTER LOCK, NO.2 | ||||
| 90250-05020 |
LN5#,6#,YN56,6#..5F L=11.1,OD=4.8 |
2 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN5#,6#,YN56,6#..5F OD=18 |
5 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN5#,6#,YN56,6#..5F OD=18 |
5 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN5#,6#,YN56,6#..5F OD=18 |
5 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN5#,6#,YN56,6#..5F OD=18 |
5 | ||
| 33275 - SEAT, SHIFT DETENT BALL SPRING, NO.1 | ||||
| 90341-12008 |
LN5#,6#,YN56,6#..5F OD=18 |
5 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-10061 |
LN5#,6#,YN56,6#..5F L=22.1,L=22.1 |
1 | ||
| 90501-14062 |
LN5#,6#,YN56,6#..5F L=30.6,L=30.6 |
1 | ||
| 90501-14061 |
LN5#,6#,YN56,6#..5F L=18.3,L=18.3 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-10061 |
LN5#,6#,YN56,6#..5F L=22.1,L=22.1 |
1 | ||
| 90501-14062 |
LN5#,6#,YN56,6#..5F L=30.6,L=30.6 |
1 | ||
| 90501-14061 |
LN5#,6#,YN56,6#..5F L=18.3,L=18.3 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-10061 |
LN5#,6#,YN56,6#..5F L=22.1,L=22.1 |
1 | ||
| 90501-14062 |
LN5#,6#,YN56,6#..5F L=30.6,L=30.6 |
1 | ||
| 90501-14061 |
LN5#,6#,YN56,6#..5F L=18.3,L=18.3 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-10061 |
LN5#,6#,YN56,6#..5F L=22.1,L=22.1 |
1 | ||
| 90501-14062 |
LN5#,6#,YN56,6#..5F L=30.6,L=30.6 |
1 | ||
| 90501-14061 |
LN5#,6#,YN56,6#..5F L=18.3,L=18.3 |
1 | ||
| 33275A - SPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE) | ||||
| 90501-10061 |
LN5#,6#,YN56,6#..5F L=22.1,L=22.1 |
1 | ||
| 90501-14062 |
LN5#,6#,YN56,6#..5F L=30.6,L=30.6 |
1 | ||
| 90501-14061 |
LN5#,6#,YN56,6#..5F L=18.3,L=18.3 |
1 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN56,6#..5F |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN56,6#..5F |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN56,6#..5F |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN56,6#..5F |
5 | ||
| 33275B - BALL, SHAFT DETENT | ||||
| 90360-10003 |
LN5#,6#,YN56,6#..5F |
5 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35020 |
LN5#,6#,YN56,6#..5F RH |
1 | ||
| 33280-35030 |
LN5#,6#,YN56,6#..5F LH |
1 | ||
| 33280 - PIN ASSY, REVERSE RESTRICT | ||||
| 33280-35020 |
LN5#,6#,YN56,6#..5F RH |
1 | ||
| 33280-35030 |
LN5#,6#,YN56,6#..5F LH |
1 | ||
| 33283F - PIN, REVERSE RESTRICT | ||||
| 33280-35040 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33283G - PIN, SLOTTED SPRING (FOR REVERSE RESTRICT PIN) | ||||
| 90254-05001 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35070 |
LN5#,YN56..5F |
1 | ||
| 33521 - HOUSING, SHIFT LEVER | ||||
| 33521-35070 |
LN5#,YN56..5F |
1 | ||
| 33521F - PIN OR BOLT (FOR SHIFT LEVER HOUSING) | ||||
| 90113-08001 |
LN5#,6#,YN56,6#..5F |
1 | ||
| 33521P - WASHER, LOCK (FOR SHIFT LEVER HOUSING) | ||||
| 90215-09003 |
LN5#,6#,YN56,6#..5F |
1 | ||
| Common parts | ||||
| 90119-08597 | ||||
| Linked diagrams | ||||
| 3312 | ||||
