LN55R-MR3 (1983)
Toyota Hilux
(8308-8408)L..ARL,GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

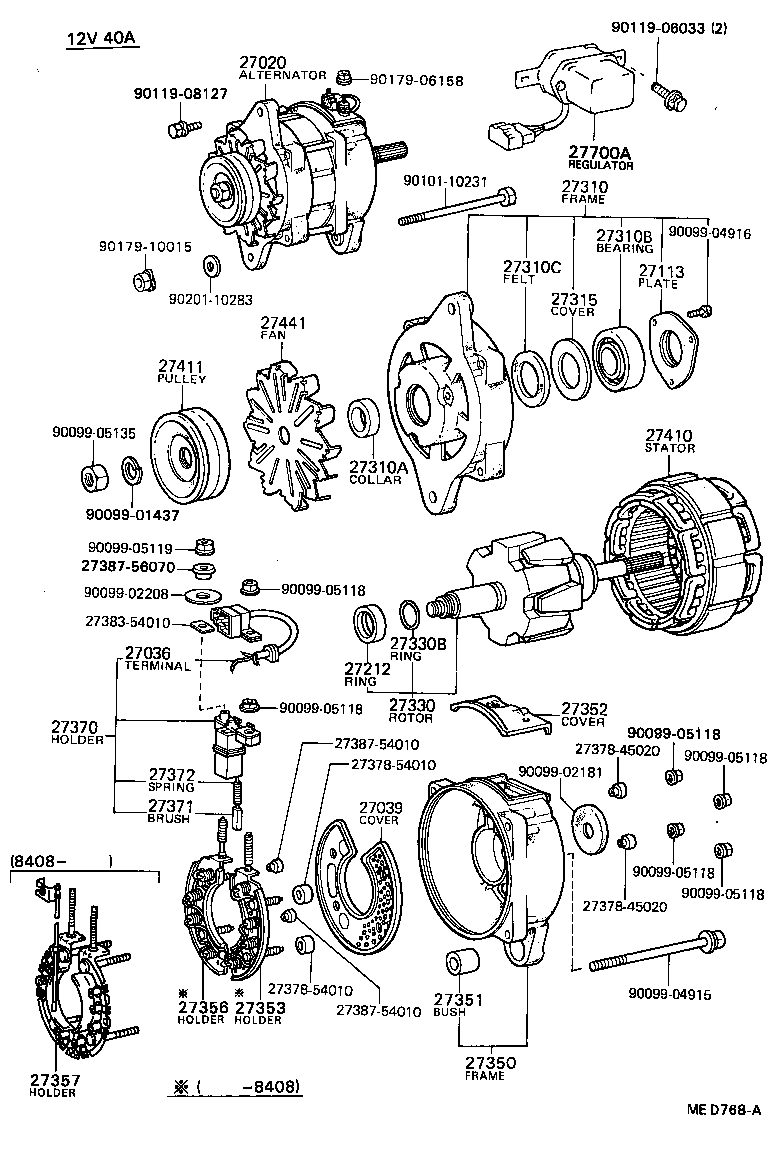

| 27020 - ALTERNATOR ASSY | ||||
| 27020-54021 |
L..LN50,55..ARL,GEN,SA 12V 40A,12V 40A |
1 | ||
| 27036 - TERMINAL SUB-ASSY, LEAD WIRE, ALTERNATOR | ||||
| 27036-54010 |
L,2L..LN5#,6# 12V 40A,55A |
1 | ||
| 27039 - COVER, ALTERNATOR REAR END | ||||
| 27039-56090 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27113 - PLATE, BEARING RETAINER, ALTERNATOR | ||||
| 27312-56070 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27212 - RING, SPACE(FOR ALTERNATOR ROTOR) | ||||
| 27412-54040 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27310 - FRAME ASSY, DRIVE END, ALTERNATOR | ||||
| 27310-54012 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27310A - COLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-19251 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-10120 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27310C - FELT(FOR ALTERNATOR DRIVE END FRAME) | ||||
| 90099-02207 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27315 - COVER, ALTERNATOR FELT, INNER NO.1 | ||||
| 27315-56070 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27330 - ROTOR ASSY, ALTERNATOR | ||||
| 27330-54040 |
L..LN50,55..ARL,GEN,SA 12V 40A |
1 | ||
| 27330B - RING, SNAP(FOR ALTERNATOR ROTOR) | ||||
| 90099-07108 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27350 - FRAME ASSY, RECTIFIER END | ||||
| 27350-54010 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27351 - BUSH(FOR ALTERNATOR RECTIFIER END FRAME) | ||||
| 27351-56013 |
L,2L,3L..LN5#,6# 12V 40A,55A,60A |
1 | ||
| 27352 - COVER, FRAME BRUSH | ||||
| 27388-56090 |
L..LN50,55..ARL,GEN,SA 12V 40A |
1 | ||
| 27353 - HOLDER, W/RECTIFIER POSITIVE, ALTERNATOR | ||||
| 27353-54020 |
L,2L..LN5#,6#..ARL,GEN,SA 12V 40A |
1 | ||
| 27356 - HOLDER, W/RECTIFIER NEGATIVE, ALTERNATOR | ||||
| 27356-54020 |
L,2L..LN5#,6#..ARL,GEN,SA 12V 40A |
1 | ||
| 27370 - HOLDER ASSY, ALTERNATOR BRUSH | ||||
| 27370-54010 |
L,2L..LN5#,6# 12V 40A,55A |
1 | ||
| 27371 - BRUSH, ALTERNATOR | ||||
| 27371-56070 |
L,2L..LN5#,6# 12V 40A,55A,60A |
2 | ||
| 27372 - SPRING, ALTERNATOR BRUSH | ||||
| 27372-56070 |
L,2L,3L..LN5#,6# 12V 40A,55A,60A |
2 | ||
| 27410 - STATOR ASSY, ALTERNATOR | ||||
| 27410-54020 |
L..LN50,55..ARL,GEN,SA 12V 40A |
1 | ||
| 27410-54021 |
L..LN50,55..ARL,GEN,SA 12V 40A |
1 | ||
| 27411 - PULLEY, ALTERNATOR | ||||
| 27411-54020 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27441 - FAN, ALTERNATOR | ||||
| 27441-54040 |
L..LN50,55 12V 40A,55A |
1 | ||
| 27700A - REGULATOR ASSY, GENERATOR | ||||
| 27700-72030 |
L,22R,2L,1Y#,2Y#,3Y,4Y,4YC..LN5#,6#,RN5#,YN5#,6# |
1 | ||
| Common parts | ||||
| 27378-45020 | ||||
| 27378-54010 | ||||
| 27383-54010 | ||||
| 27387-54010 | ||||
| 27387-56070 | ||||
| 90099-01437 | ||||
| 90099-02181 | ||||
| 90099-02208 | ||||
| 90099-04915 | ||||
| 90099-04916 | ||||
| 90099-05118 | ||||
| 90099-05119 | ||||
| 90099-05135 | ||||
| 90101-10231 | ||||
| 90119-06033 | ||||
| 90119-08127 | ||||
| 90179-06158 | ||||
| 90179-10015 | ||||
| 90201-10283 | ||||
