LN55R-KRP (1983)

Toyota Hilux

Production Dec 1983 - Aug 1984
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8312- )TW

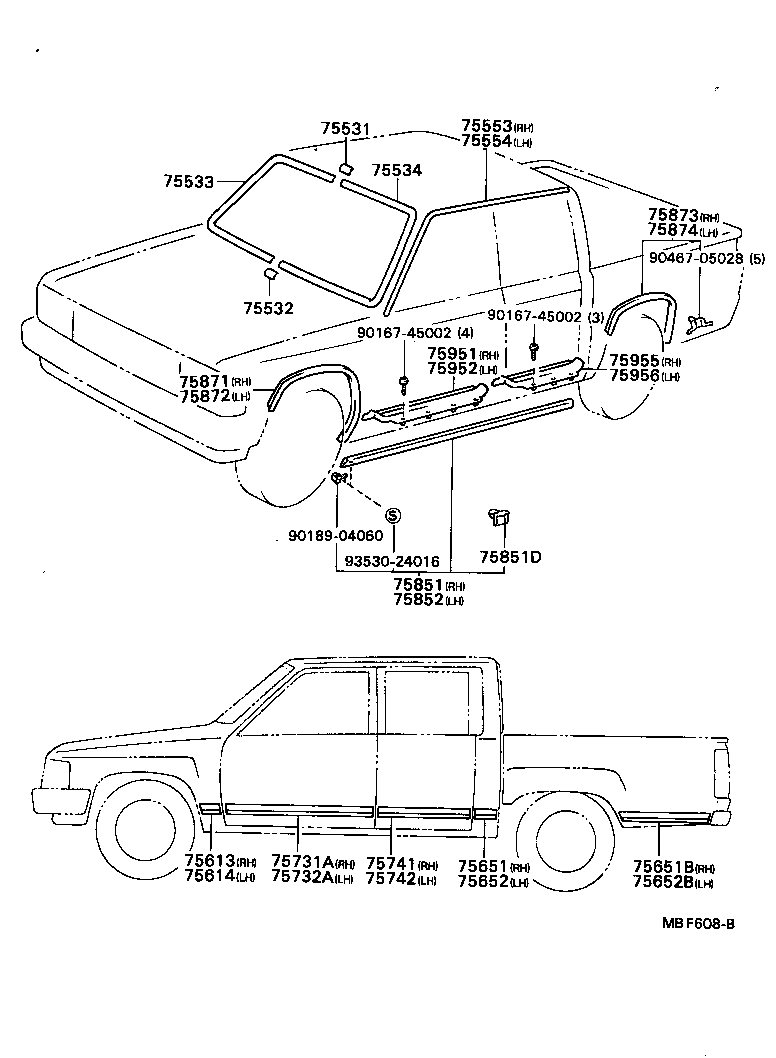

Click highlighted areas on diagram

diagram 75531 75532 75533 75534 75553 75554 75613 75614 75651 75651B 75652 75652B 75731A 75732A 75741 75742 75851 75851D 75852 75871 75872 75873 75874 75951 75952 75955 75956 9016745002 9016745002 9018904060 9046705028 9353024016
Part # Description Qty Price
75531 - MOULDING, WINDSHIELD, OUTER UPPER
75581-10010

LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)

 1
75532 - MOULDING, WINDSHIELD, LOWER
75581-10010

LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)

 1
75533 - MOULDING, WINDSHIELD, OUTSIDE RH
75533-89105

LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)

 1
75534 - MOULDING, WINDSHIELD, OUTSIDE LH
75534-89103

LN50,55,6#,YN50,52,55,57,6#..(T1,T3,TW)..(GEN,ME)

 1
75951 - PLATE, FRONT DOOR SCUFF, OUTSIDE RH
67913-8910206

LN5#,6#,RN5#,YN5#,6#

BROWN,BROWN,TRIM4#

 1
67913-8910204

LN5#,6#,RN5#,YN5#,6#

BLUE,BLUE,TRIM8#

 1
67913-8910203

LN5#,6#,RN5#,YN5#,6#

GRAY,GRAY,TRIM1#

 1
75952 - PLATE, FRONT DOOR SCUFF, OUTSIDE LH
67913-8910203

LN5#,6#,RN5#,YN5#,6#

GRAY,GRAY,TRIM1#

 1
67913-8910204

LN5#,6#,RN5#,YN5#,6#

BLUE,BLUE,TRIM8#

 1
67913-8910206

LN5#,6#,RN5#,YN5#,6#

BROWN,BROWN,TRIM4#

 1
Common parts
90167-45002
90189-04060
90467-05028
93530-24016
