LN55R-KR (1983)
Toyota Hilux
(8308-8408)LN5#,YN50,55,56,57..EUR,GEN,SA ; (8408- )LN5#,RN5#,YN5#

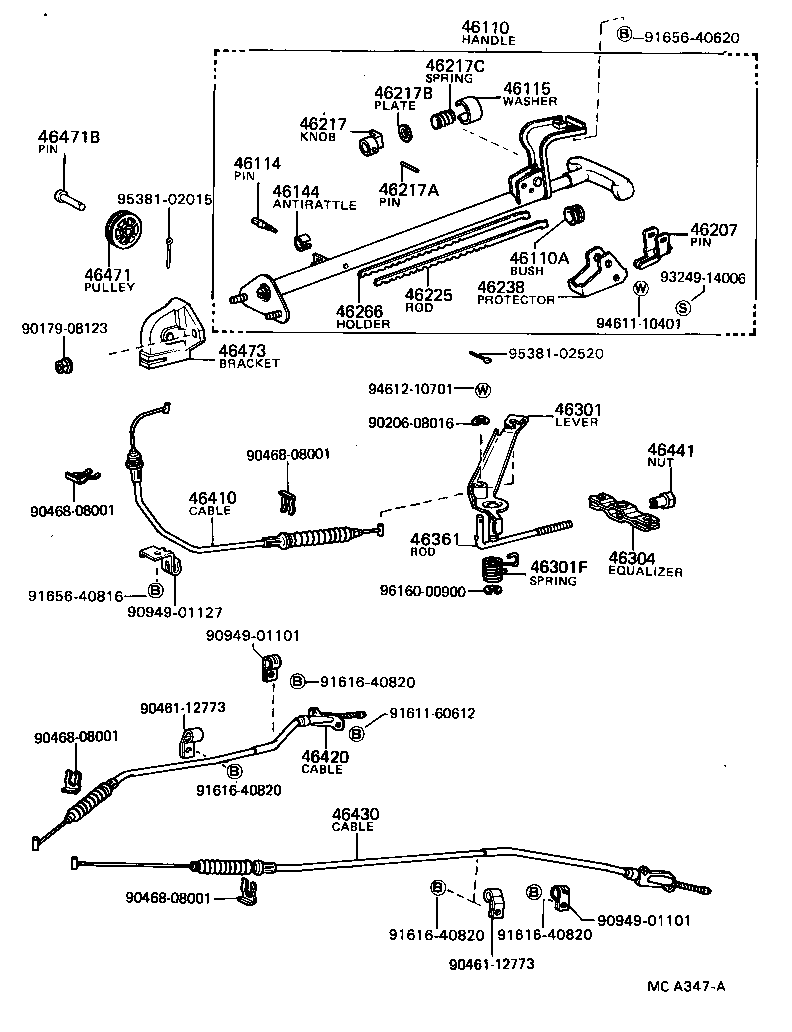

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46110-35150 |
LN5#,6#,YN50,55,56,57,65..RHD..(EUR,GEN,SA) |
1 | ||
| 46110-35170 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-35130 |
LN5#,RN58,YN50,51,55,56,57,58..RHD |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-32008 |
LN5#,RN58,YN50,51,55,56,57,58..RHD |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-22020 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-35050 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-35230 |
RN58,YN50,51,55,56,57,58..RHD |
1 | ||
| 46410-35240 |
LN5#..RHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-35230 |
LN55,56,RN55,YN55,56,58 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-35200 |
LN55,56,RN55,YN55,56,58 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08070 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 46473 - BRACKET, PULLEY | ||||
| 46473-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 90206-08016 | ||||
| 90461-12773 | ||||
| 90468-08001 | ||||
| 90949-01101 | ||||
| 90949-01127 | ||||
| 91611-60612 | ||||
| 91616-40820 | ||||
| 91651-60618 | ||||
| 91651-60814 | ||||
| 94612-10701 | ||||
| 95381-02015 | ||||
| 95381-02520 | ||||
| 96160-00900 | ||||
(8308-8408)LN55,YN57 ; (8308-8408)LN56,YN55..ARL
NEW ZEALAND SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46110 - HANDLE ASSY, PARKING BRAKE CONTROL | ||||
| 46110-35150 |
LN5#,6#,YN50,55,56,57,65..RHD..(EUR,GEN,SA) |
1 | ||
| 46110-35170 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46110A - BUSH OR RING, O (FOR PARKING BRAKE PLUNGER) | ||||
| 90386-12048 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 46114 - PIN, PARKING BRAKE PLUNGER | ||||
| 46114-20010 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 46115 - WASHER, PARKING BRAKE PLUNGER | ||||
| 46115-36010 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46115-35010 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46144 - ANTI-RATTLE, PARKING BRAKE PLUNGER | ||||
| 46144-20010 |
LN5#,6#,RN5#,61,YN5#,6# |
1 | ||
| 46207 - PIN SUB-ASSY, PLUNGER LOCK | ||||
| 46207-35010 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-35010 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46217A - PIN, SLOTTED SPRING(FOR PARKING BRAKE RELEASE ROD KNOB) | ||||
| 90254-02002 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46217B - WASHER, PLATE(FOR PARKING BRAKE RELEASE ROD KNOB) | ||||
| 90201-12017 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46217C - SPRING, COMPRESSION(FOR PARKING BRAKE RELEASE ROD KNOB) | ||||
| 90501-10023 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46225 - ROD, PARKING BRAKE PAWL RELEASE | ||||
| 46225-35030 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46238 - PROTECTOR, PLUNGER LOCK PIN | ||||
| 46238-35010 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46266 - HOLDER, PLUNGER LOCK PIN | ||||
| 46266-35010 |
LN55,YN57..RHD..GEN NEW ZEALAND SPEC |
1 | ||
| 46301 - LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE | ||||
| 46301-35130 |
LN5#,RN58,YN50,51,55,56,57,58..RHD |
1 | ||
| 46301F - SPRING, TORSION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90508-32008 |
LN5#,RN58,YN50,51,55,56,57,58..RHD |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-22020 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-35050 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-35230 |
RN58,YN50,51,55,56,57,58..RHD |
1 | ||
| 46410-35240 |
LN5#..RHD |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-35230 |
LN55,56,RN55,YN55,56,58 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-35200 |
LN55,56,RN55,YN55,56,58 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
1 | ||
| 46471 - PULLEY, WIRE | ||||
| 46471-20010 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 46471B - PIN, W/HOLE(FOR WIRE PULLEY SET) | ||||
| 90240-08070 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| 46473 - BRACKET, PULLEY | ||||
| 46473-35020 |
RN58..SR5;LN50,51,55,56,60,61,65,RN50,55,6#,YN5#,6# |
1 | ||
| Common parts | ||||
| 90179-08123 | ||||
| 90206-08016 | ||||
| 90461-12773 | ||||
| 90468-08001 | ||||
| 90949-01101 | ||||
| 90949-01127 | ||||
| 91611-60612 | ||||
| 91616-40820 | ||||
| 91656-40620 | ||||
| 91656-40816 | ||||
| 93249-14006 | ||||
| 94611-10401 | ||||
| 94612-10701 | ||||
| 95381-02015 | ||||
| 95381-02520 | ||||
| 96160-00900 | ||||
