LN55L-KRB (1983)

Toyota Hilux

Production Aug 1983 - Aug 1984
Engine L
Transmission 4F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )T3

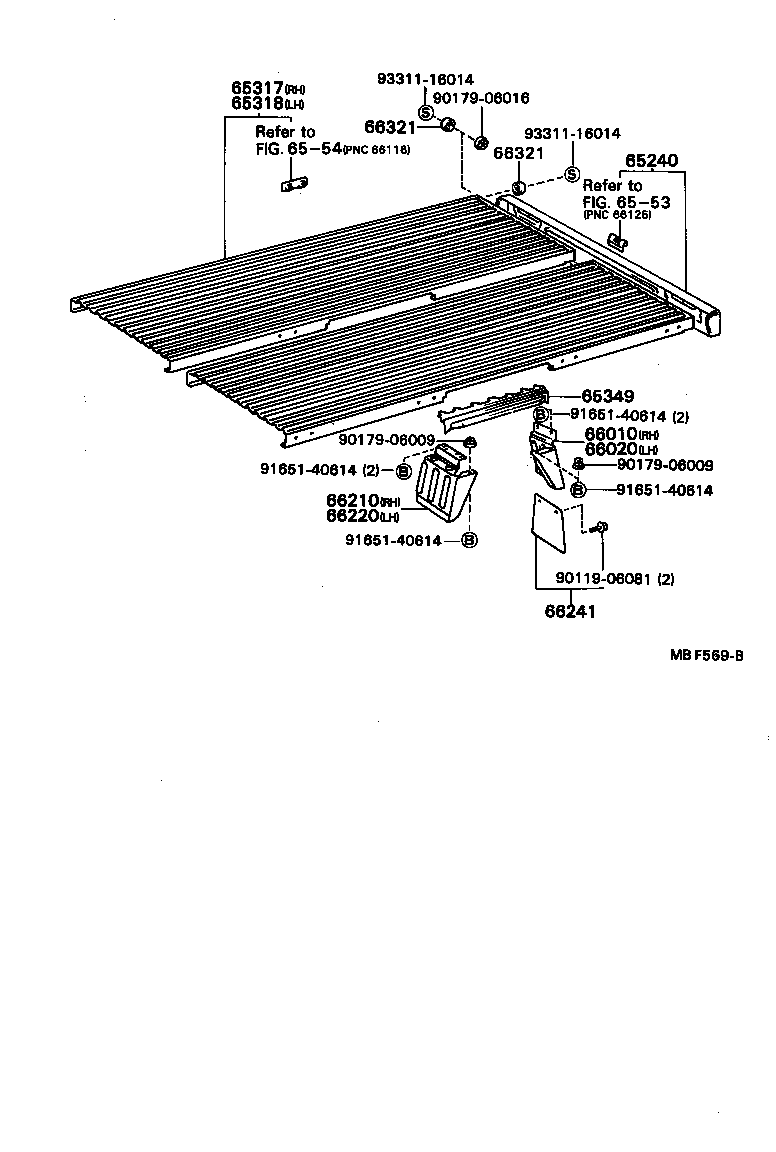

Click highlighted areas on diagram

diagram 65240 65317 65318 65349 6553 6554 66010 66020 66210 66220 66241 66321 66321 9011906081 9017906009 9017906009 9017906016 9165140614 9165140614 9165140614 9165140614 9331116014 9331116014
Part # Description Qty Price
65240 - CROSSMEMBER, REAR BODY FLOOR, TAIL
65240-95701

LN55,56,YN55..T3

 1
65317 - PANEL, FLOOR SIDE, RH
65037-89101

LN55,56,YN55..T3

 1
65318 - PANEL, FLOOR SIDE, LH
65038-89101

LN55,56,YN55..T3

 1
65349 - FENDER, FLOOR SIDE
65349-95701

LN55,56,YN55..T3

 2
66010 - FENDER ASSY, REAR BODY, REAR RH
66210-89101

LN55,56,YN55..T3

 1
66020 - FENDER ASSY, REAR BODY, REAR LH
66220-89101

LN55,56,YN55..T3

 1
66210 - FENDER ASSY, REAR BODY, FRONT RH
66010-89101

LN55,56,YN55..T3

 1
66220 - FENDER ASSY, REAR BODY, FRONT LH
66020-89101

LN55,56,YN55..T3

 1
66241 - MUDGUARD, REAR
66241-39015

LN5#,YN5#..(RCB,XTR)..CBU

 2
66321 - BUMPER, GATE RUBBER
66303-87403

LN55,56,YN55..T3

 4
66321 - BUMPER, GATE RUBBER
66303-87403

LN55,56,YN55..T3

 4
Common parts
90119-06081
90179-06009
90179-06016
91651-40614
93311-16014
Linked diagrams
6553
6554
