LN50R-MR3 (1983)
Toyota Hilux

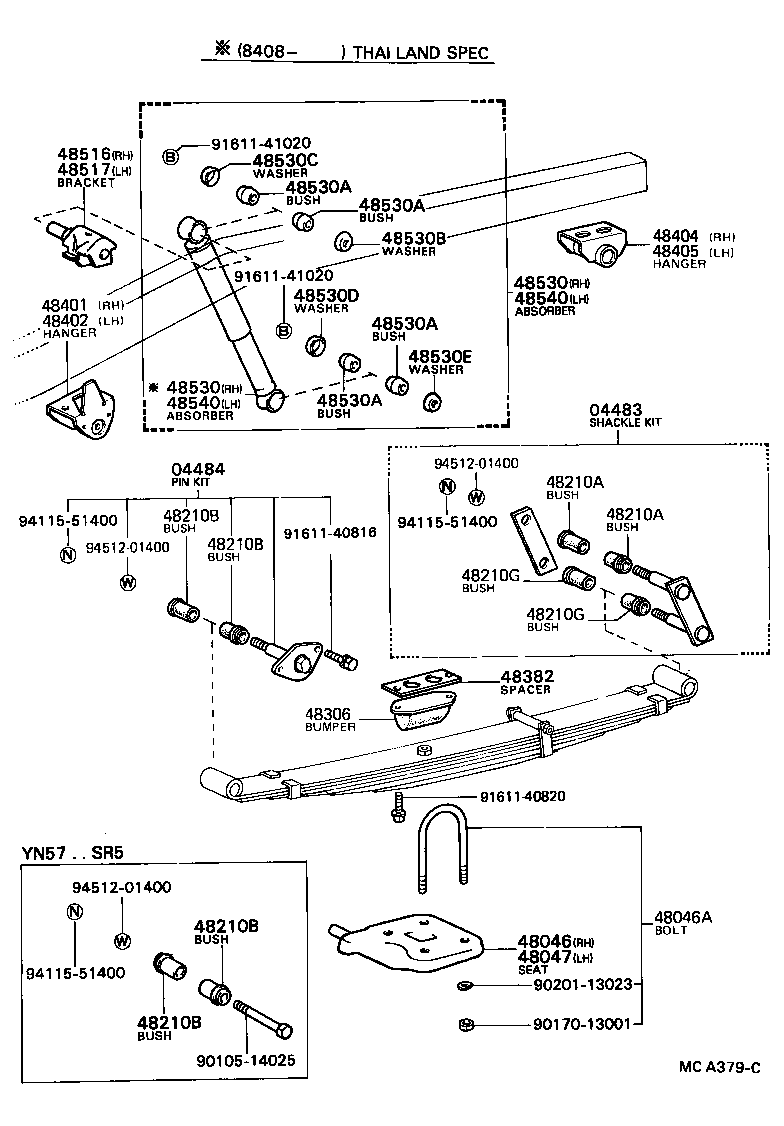

ILLUST NO. 1 OF 2(8308- )LN5#,RN5#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483 - SHACKLE KIT, REAR SPRING | ||||
| 04483-35040 |
LN5#,6#,RN5#,61,YN5#,6# |
2 | ||
| 04484 - PIN KIT, REAR SPRING | ||||
| 04482-35030 |
LN56,YN57..DLX,STD;LN50,51,55,6#,YN50,52,55,56,6# |
2 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-35080 |
LN5#,YN5# |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90118-13215 |
LN56,YN57..(T1,TW)..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,YN50,52,55,56..(T1,TW)..(ARL,EUR,GEN,ME) |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-35080 |
LN5#,YN5# |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LN5#,6#,RN5#,61,YN5#,6# |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-18046 |
LN5#,6#,RN5#,61,YN5#,6# |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
YN57..SR5..GEN;LN56,YN57,58..DLX,STD;LN50,51,55,RN50,55,67,YN50,52,55,56 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
YN57..SR5..GEN;LN56,YN57,58..DLX,STD;LN50,51,55,RN50,55,67,YN50,52,55,56 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
YN57..SR5..GEN;LN56,YN57,58..DLX,STD;LN50,51,55,RN50,55,67,YN50,52,55,56 |
4 | ||
| 48210B - BUSH(FOR REAR SPRING PIN) | ||||
| 90385-18046 |
YN57..SR5..GEN;LN56,YN57,58..DLX,STD;LN50,51,55,RN50,55,67,YN50,52,55,56 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-18046 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,60,61,65,RN50,55,61,YN50,51,52,55,56,57,6#..4F,4FC,4H,5F |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48341-35030 |
LN50,51,YN50,55,57..(T1,TW)..GEN;LN55,56..(T1,TW)..(DLX,STD)..GEN W/6.00-14-6,RR6.50-14-8 TIRE |
1 | ||
| 48341-35040 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
2 | ||
| 48401 - BRACKET SUB-ASSY, REAR SPRING, FRONT RH | ||||
| 48414-35100 |
LN50,55,YN5#..(T1,TW)..(DLX,STD)..(EUR,GEN,ME,SA) HEAVY DUTY SPEC |
1 | ||
| 48414-35070 |
LN50,55,YN5#..(T1,TW)..(EUR,GEN,ME,SA) |
1 | ||
| 48402 - BRACKET SUB-ASSY, REAR SPRING, FRONT LH | ||||
| 48414-35070 |
LN50,55,YN5#..(T1,TW)..(EUR,GEN,ME,SA) |
1 | ||
| 48414-35100 |
LN50,55,YN5#..(T1,TW)..(DLX,STD)..(EUR,GEN,ME,SA) HEAVY DUTY SPEC |
1 | ||
| 48404 - BRACKET SUB-ASSY, REAR SPRING, REAR RH | ||||
| 48416-35050 |
LN56..EUR..IV;LN56..LHD..(T1,TW)..GEN;LN56..RHD..(T1,TW)..(EUR,GEN,SA);LN50,51,55,YN5#..(T1,TW)..(EUR,GEN,ME,SA) |
1 | ||
| 48405 - BRACKET SUB-ASSY, REAR SPRING, REAR LH | ||||
| 48416-35050 |
LN56..EUR..IV;LN56..LHD..(T1,TW)..GEN;LN56..RHD..(T1,TW)..(EUR,GEN,SA);LN50,51,55,YN5#..(T1,TW)..(EUR,GEN,ME,SA) |
1 | ||
| 48516 - BRACKET, REAR SHOCK ABSORBER, UPPER RH | ||||
| 48505-35020 |
LN5#,YN5# |
1 | ||
| 48517 - BRACKET, REAR SHOCK ABSORBER, UPPER LH | ||||
| 48506-35020 |
LN5#,YN5# |
1 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39615 |
LN55,YN57..(DLX,STD)..(ARL,GEN,ME);LN50,51,56,RN5#,YN50,52,55,56..ARL,GEN,ME |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-39615 |
LN55,YN57..(DLX,STD)..(ARL,GEN,ME);LN50,51,56,RN5#,YN50,52,55,56..ARL,GEN,ME |
2 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
8 | ||
| 48530A - BUSH(FOR REAR SHOCK ABSORBER) | ||||
| 90385-16007 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
8 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-03004 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-03012 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
4 | ||
| 48530D - WASHER, REAR SHOCK ABSORBER CUSHION, NO.3 | ||||
| 90948-03012 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
4 | ||
| 48530E - WASHER, REAR SHOCK ABSORBER CUSHION, NO.4 | ||||
| 90948-03004 |
YN58..4F;YN58..SR5,STD;LN50,51,55,56,RN50,55,YN50,51,52,55,56,57..4F,4FC,4H,5F |
4 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39615 |
LN56,YN57..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,RN5#,YN50,52,55,56..ARL,EUR,GEN,ME |
1 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48531-39615 |
LN56,YN57..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,RN5#,YN50,52,55,56..ARL,EUR,GEN,ME |
1 | ||
| Common parts | ||||
| 90105-14025 | ||||
| 90170-13001 | ||||
| 90201-13023 | ||||
| 91611-40816 | ||||
| 91611-40820 | ||||
| 91611-41020 | ||||
| 94115-51400 | ||||
| 94512-01400 | ||||

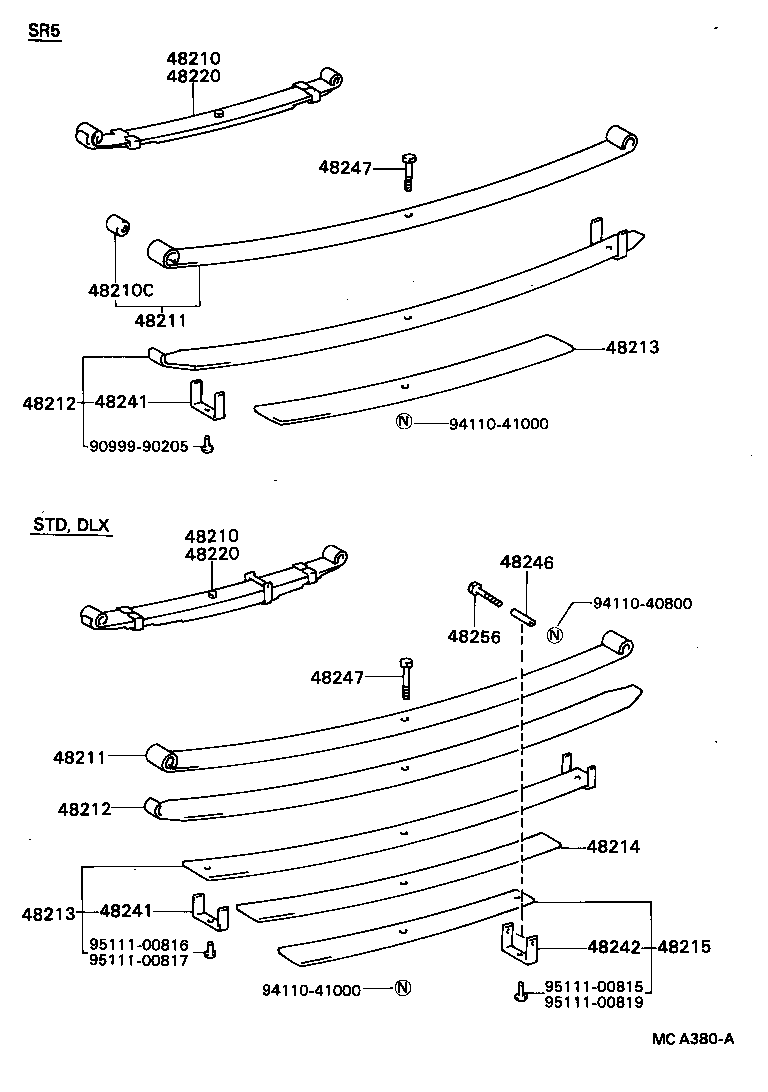

ILLUST NO. 2 OF 2(8308- )LN5#,RN5#,YN5#
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
1 | ||
| 48210-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
1 | ||
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
1 | ||
| 48210-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
1 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
2 | ||
| 48211-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
2 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
2 | ||
| 48211-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
2 | ||
| 48212-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
2 | ||
| 48212-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48201-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
2 | ||
| 48201-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48201-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
2 | ||
| 48201-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
2 | ||
| 48214-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48202-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
2 | ||
| 48202-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
1 | ||
| 48210-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
1 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-35300 |
LN50,55,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/FR6.00-14-6,RR6.50-14-8 TIRE |
1 | ||
| 48210-35310 |
LN5#,YN50,55,57..(T1,TW)..(DLX,STD)..GEN W/6.50-14-8 OR 185R14C-8 TIRE |
1 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48243-35120 |
LN56,YN57..(T1,TW)..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,RN5#,YN50,52,55,56..(T1,TW)..(ARL,EUR,GEN,ME) |
4 | ||
| 48241 - CLIP, REAR SPRING, NO.1 | ||||
| 48243-35120 |
LN56,YN57..(T1,TW)..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,RN5#,YN50,52,55,56..(T1,TW)..(ARL,EUR,GEN,ME) |
4 | ||
| 48242 - CLIP, REAR SPRING, NO.2 | ||||
| 48242-35290 |
LN56,YN57..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,RN5#,YN50,52,55,56..ARL,EUR,GEN,ME |
2 | ||
| 48246 - CASE, REAR SPRING CLIP BOLT | ||||
| 48246-35040 |
LN56,YN57..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,RN5#,YN50,52,55,56..ARL,EUR,GEN,ME |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35070 |
LN56,YN57..(T1,TW)..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,RN5#,YN50,52,55,56..(T1,TW)..(ARL,EUR,GEN,ME) |
2 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-35070 |
LN56,YN57..(T1,TW)..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,RN5#,YN50,52,55,56..(T1,TW)..(ARL,EUR,GEN,ME) |
2 | ||
| 48256 - BOLT, HEXAGON(FOR REAR SPRING CLIP SET) | ||||
| 48256-35040 |
LN56,YN57..(DLX,STD)..(ARL,EUR,GEN,ME);LN50,51,55,RN5#,YN50,52,55,56..ARL,EUR,GEN,ME |
2 | ||
| Common parts | ||||
| 90999-90205 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 95111-00815 | ||||
| 95111-00816 | ||||
| 95111-00817 | ||||
| 95111-00819 | ||||
