LN46L-KR (1981)

Toyota Hilux

Production Mar 1981 - Jul 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(8103-8108)LN36,46

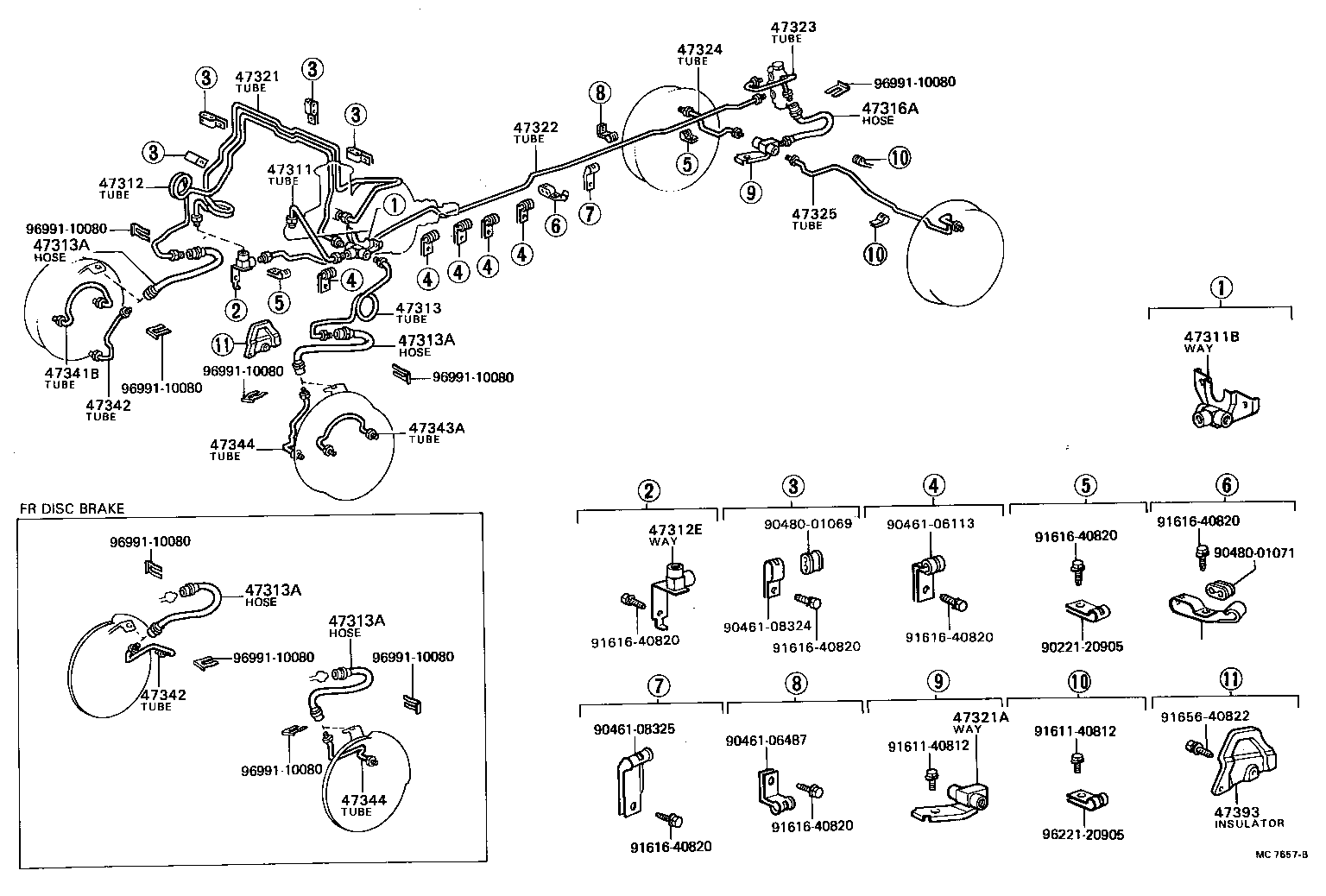

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312 47312E 47313 47313 47313 47313A 47313A 47313A 47313A 47314 47314 47316A 47321A 47322 47323 47324 47325 47341B 47341B 47342 47342 47343A 47343A 47344 47344 47393 9046106112 9046106113 9046106487 9046108324 9046108325 9046108456 9046110469 9048001069 9048001069 9048001071 9161140812 9161140812 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9165640822 9622120905 9622120905 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35260

RN30,36,40,46..GEN,PHL,SA

SINGLE MASTER CYLINDER

 1
47311-35340

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

FR DISC BRAKE

 1
47311-35330

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

TANDEM MASTER CYLINDER,FR DRUM

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10067

LN3#,4#,RN30,36,40,46..GEN,PHL,SA

SINGLE MASTER CYLINDER

 1
90413-10058

RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)

TANDEM MASTER CYLINDER

 1
90413-10111

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

TANDEM MASTER CYLINDER

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35170

RN30,36,40,46..LHD..(GEN,PHL)

SINGLE MASTER CYLINDER

 1
47312-35350

LN36,46..LHD

TANDEM MASTER CYLINDER

 1
47312-35280

RN36,46..LHD

TANDEM MASTER CYLINDER

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35170

RN30,36,40,46..LHD..(GEN,PHL)

SINGLE MASTER CYLINDER

 1
47312-35350

LN36,46..LHD

TANDEM MASTER CYLINDER

 1
47312-35280

RN36,46..LHD

TANDEM MASTER CYLINDER

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10057

LN3#,4#,RN30,36,40,46..GEN,PHL,SA

SINGLE MASTER CYLINDER

 1
90412-10049

LN3#,4#,RN3#,4#

TANDEM MASTER CYLINDER

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35230

LN36,46,RN36,46..LHD

TANDEM MASTER CYLINDER

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35230

LN36,46,RN36,46..LHD

TANDEM MASTER CYLINDER

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35230

LN36,46,RN36,46..LHD

TANDEM MASTER CYLINDER

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96910-31443

RN3#,4#

W/O LSPV

 1
96910-31403

RN3#,4#..EUR,GEN,PHL,SA

W/LSPV

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35150

LN46,RN46..T1

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35040

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

 1
Common parts
90461-06112
90461-06113
90461-06487
90461-08324
90461-08325
90461-08456
90461-10469
90480-01069
90480-01071
91611-40812
91616-40820
91656-40822
96221-20905
96991-10080

(8103-8307)LN36,46..LHD

Click highlighted areas on diagram

diagram 47311 47311B 47312 47312E 47313 47313A 47313A 47313A 47313A 47316A 47321 47321A 47322 47323 47324 47325 47341B 47342 47342 47343A 47344 47344 47393 9022120905 9046106113 9046106487 9046108324 9046108325 9048001069 9048001071 9161140812 9161140812 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9161640820 9165640822 9622120905 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47311 - TUBE, FRONT BRAKE, NO.1
47311-35260

RN30,36,40,46..GEN,PHL,SA

SINGLE MASTER CYLINDER

 1
47311-35340

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

FR DISC BRAKE

 1
47311-35330

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

TANDEM MASTER CYLINDER,FR DRUM

 1
47311B - WAY, NO.1(FOR FRONT BRAKE TUBE)
90413-10067

LN3#,4#,RN30,36,40,46..GEN,PHL,SA

SINGLE MASTER CYLINDER

 1
90413-10058

RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA)

TANDEM MASTER CYLINDER

 1
90413-10111

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

TANDEM MASTER CYLINDER

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-35170

RN30,36,40,46..LHD..(GEN,PHL)

SINGLE MASTER CYLINDER

 1
47312-35350

LN36,46..LHD

TANDEM MASTER CYLINDER

 1
47312-35280

RN36,46..LHD

TANDEM MASTER CYLINDER

 1
47312E - WAY, NO.2(FOR FRONT BRAKE TUBE)
90413-10057

LN3#,4#,RN30,36,40,46..GEN,PHL,SA

SINGLE MASTER CYLINDER

 1
90412-10049

LN3#,4#,RN3#,4#

TANDEM MASTER CYLINDER

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-35230

LN36,46,RN36,46..LHD

TANDEM MASTER CYLINDER

 1
47316A - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE)
96910-31443

RN3#,4#

W/O LSPV

 1
96910-31403

RN3#,4#..EUR,GEN,PHL,SA

W/LSPV

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-35170

LN36,46..LHD

TANDEM MASTER CYLINDER

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-35150

LN46,RN46..T1

 1
47393 - INSULATOR, BRAKE TUBE HEAT
47393-35040

LN46..TW;LN46..ARL..IV3;RN46..ARL..CBU;LN36,46..T1..(EUR,GEN)

 1
Common parts
90221-20905
90461-06113
90461-06487
90461-08324
90461-08325
90480-01069
90480-01071
91611-40812
91616-40820
91656-40822
96221-20905
96991-10080
