LN40R-QRW (1980)

Toyota Hilux

Production Aug 1980 - Jul 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8307)EUR

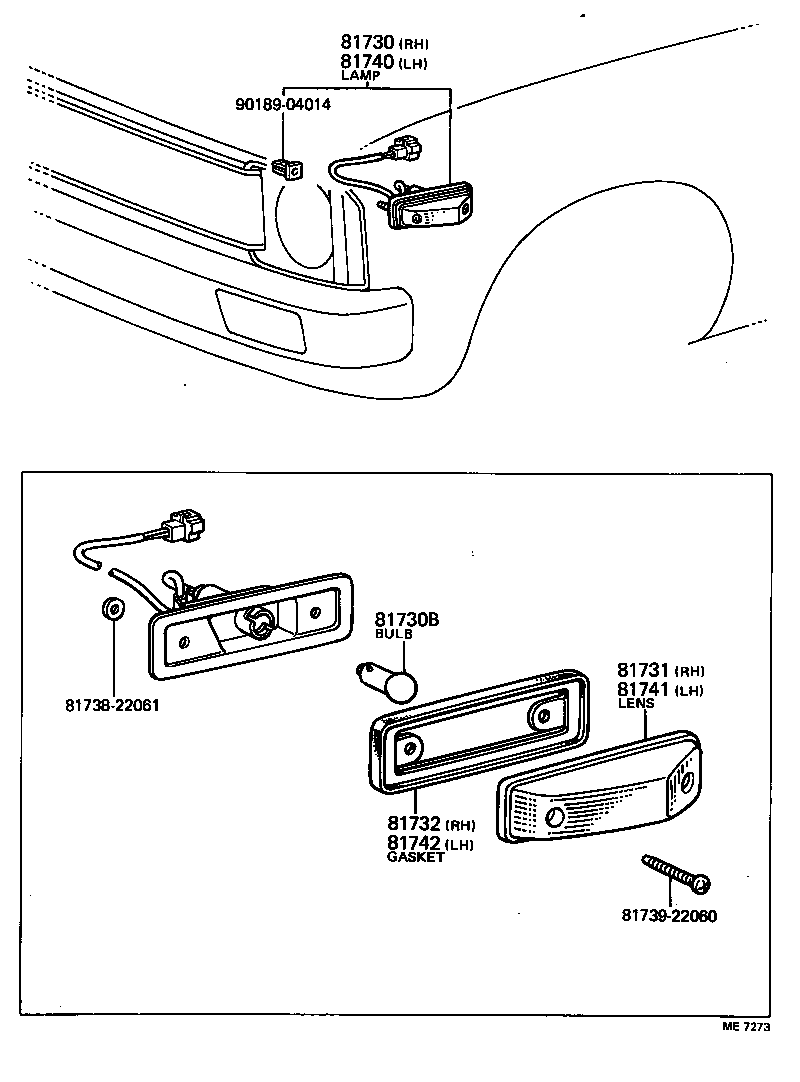

Click highlighted areas on diagram

diagram 81730 81730B 81731 81732 8173822061 8173922060 81740 81741 81742 9018904014
Part # Description Qty Price
81730 - LAMP ASSY, SIDE TURN SIGNAL, RH
81730-39115

LN40,RN30,40..EUR

 1
81730B - BULB (FOR SIDE TURN SIGNAL LAMP)
99132-11050

LN36,4#,RN30,36,40,46..EUR

12V 5W,12V 5W

 2
81731 - LENS, SIDE TURN SIGNAL LAMP, RH
81731-14100

LN36,4#,RN30,36,40,46..EUR

 1
81732 - GASKET, SIDE TURN SIGNAL LAMP LENS, RH
81732-14100

LN36,4#,RN30,36,40,46..EUR

 1
81740 - LAMP ASSY, SIDE TURN SIGNAL, LH
81740-39115

LN40,RN30,40..EUR

 1
81741 - LENS, SIDE TURN SIGNAL LAMP, LH
81741-14100

LN36,4#,RN30,36,40,46..EUR

 1
81742 - GASKET, SIDE TURN SIGNAL LAMP LENS, LH
81742-14100

LN36,4#,RN30,36,40,46..EUR

 1
Common parts
81738-22061
81739-22060
90189-04014
