LN40L-MRS (1979)

Toyota Hilux

Production Nov 1979 - Jul 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8307)LHD

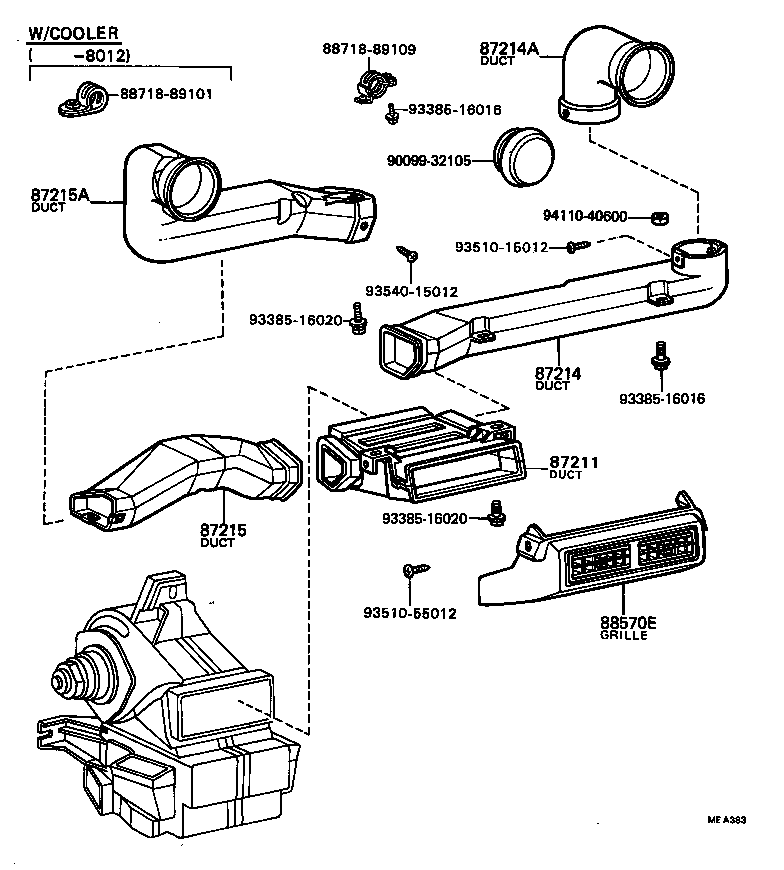

Click highlighted areas on diagram

diagram 87211 87214 87214A 87215 87215A 88570E 8871889101 8871889109 9009932105 9338516016 9338516016 9338516020 9338516020 9351015012 9351055012 9354015012 9411040600
Part # Description Qty Price
87211 - DUCT, AIR, NO.1
55670-8910105

LN3#,4#,RN3#,4#

FIXATION TYPE,BEIGE,BEIGE,TRIM4#

 1
55670-8910101

LN3#,4#,RN3#,4#

FIXATION TYPE,BLACK,BLACK,TRIM2#

 1
55670-8910204

LN3#,4#,RN3#,4#

MOVABLE TYPE,BLUE,BLUE,TRIM8#

 1
55670-8910201

LN3#,4#,RN3#,4#

MOVABLE TYPE,BLACK,BLACK,TRIM2#

 1
55670-8910206

LN3#,4#,RN3#,4#

MOVABLE TYPE,BROWN,BROWN,TRIM4#

 1
55670-8910104

LN3#,4#,RN3#,4#

FIXATION TYPE,BLUE,BLUE,TRIM8#

 1
88575-89101

LN3#,4#,RN3#,4#..ARL,GEN,ME,PHL,SA

W/COOLER

 1
87214 - DUCT, AIR, SIDE NO.1 RH
88576-89107

RN3#,4#..LHD..(GEN,PHL)

 1
88576-89107

LN3#,4#,RN3#,4#..LHD..(GEN,ME)

 1
87214A - DUCT, AIR, SIDE NO.2 RH
88576-89104

LN3#,4#,RN3#,4#..LHD..(GEN,ME)

 1
88576-89104

RN3#,4#..LHD..(GEN,PHL)

 1
87215 - DUCT, AIR, SIDE NO.1 LH
88576-95110

RN3#,4#..LHD..(GEN,PHL)

 1
88576-89105

RN3#,4#..LHD..(GEN,PHL)

 1
88576-95114

LN3#,4#,RN3#,4#..LHD..(GEN,ME)

 1
87215A - DUCT, AIR, SIDE NO.2 LH
88576-89106

RN3#,4#..LHD..(GEN,PHL)

 1
88576-95115

LN3#,4#,RN3#,4#..LHD..(GEN,ME)

 1
88576-95111

RN3#,4#..LHD..(GEN,PHL)

 1
88570E - GRILLE ASSY, AIR OUTLET
88570-89103

LN40;LN3#,46,RN3#,4#..ARL,GEN,ME,PHL,SA

 1
Common parts
88718-89101
88718-89109
90099-32105
93385-16016
93385-16020
93510-15012
93510-55012
93540-15012
94110-40600
