LN30R-QRS (1979)
Toyota Hilux
(7808-8008)EUR,GEN,PHL,SA ; (8008- )RN41..DLX,STD ; (8008- )RN41..SR5..GEN,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

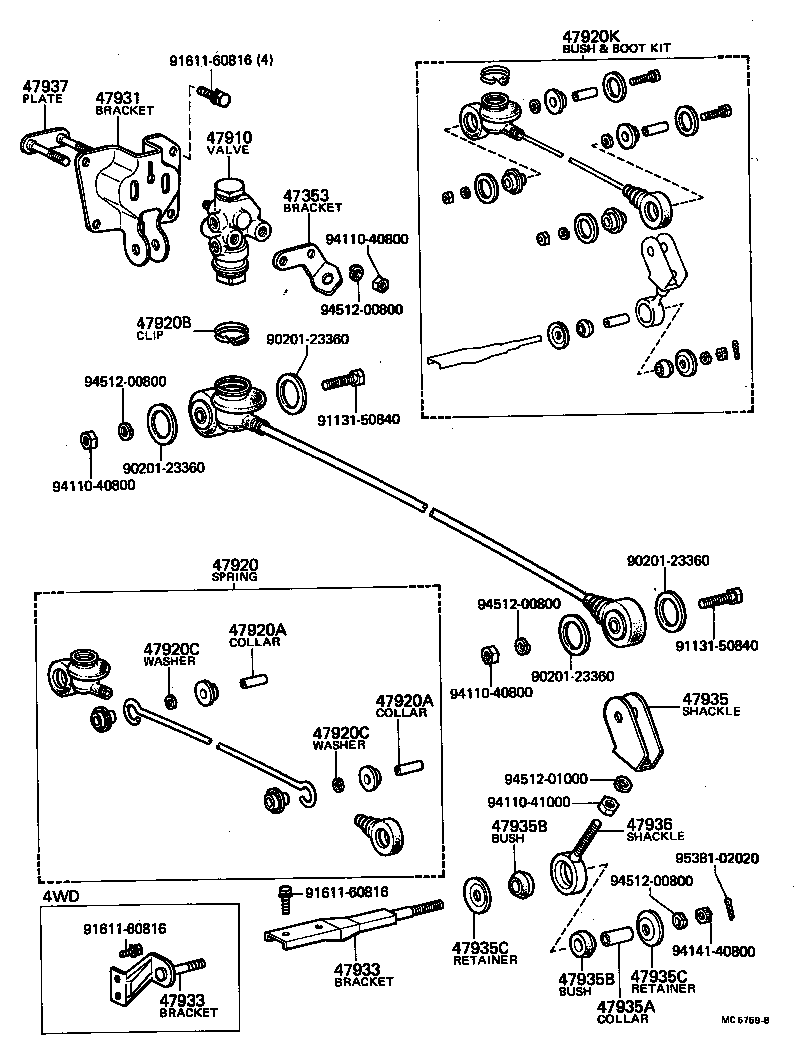

| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35040 |
RN31,41..ECB;LN30,40,RN30,40 W/O LSPV |
1 | ||
| 47352-35060 |
LN30,40,RN30,31,40,41..EUR,GEN,PHL,SA W/LSPV |
1 | ||
| 47910 - VALVE ASSY, LOAD SENSING PROPORTIONING | ||||
| 47910-26010 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| 47920 - SPRING ASSY, LOAD SENSING | ||||
| 47920-26010 |
LN30,40,RN30,31,40,41..EUR,GEN,PHL,SA |
1 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
2 | ||
| 47920A - COLLAR(FOR LOAD SENSING SPRING) | ||||
| 90387-08099 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
2 | ||
| 47920B - CLIP(FOR LOAD SENSING VALVE BOOT) | ||||
| 90467-31110 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
2 | ||
| 47920C - WASHER(FOR LOAD SENSING SPRING) | ||||
| 90202-10103 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
2 | ||
| 47920K - BUSH & BOOT KIT, LOAD SENSING SPRING | ||||
| 04477-35010 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| 47931 - BRACKET, LOAD SENSING VALVE | ||||
| 47931-35020 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-35010 |
LN30,40,RN30,31,40,41..EUR,GEN,PHL,SA |
1 | ||
| 47933 - BRACKET, LOAD SENSING SHACKLE, NO.1 | ||||
| 47933-35010 |
LN30,40,RN30,31,40,41..EUR,GEN,PHL,SA |
1 | ||
| 47935 - SHACKLE, LOAD SENSING SPRING, NO.1 | ||||
| 47935-35010 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| 47935A - COLLAR(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90387-08099 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
2 | ||
| 47935B - BUSH(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90385-10064 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
2 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| 47935C - RETAINER(FOR LOAD SENSING SPRING SHACKLE) | ||||
| 90948-02033 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| 47937 - PLATE, LOAD SENSING VALVE SET | ||||
| 47937-26010 |
RN36;RN46..ARL..IV3;LN30,40,RN30,31,4#..EUR,GEN,PHL,SA |
1 | ||
| Common parts | ||||
| 90201-23360 | ||||
| 91131-50840 | ||||
| 91611-60816 | ||||
| 94110-40800 | ||||
| 94110-41000 | ||||
| 94141-40800 | ||||
| 94512-00800 | ||||
| 94512-01000 | ||||
| 95381-02020 | ||||

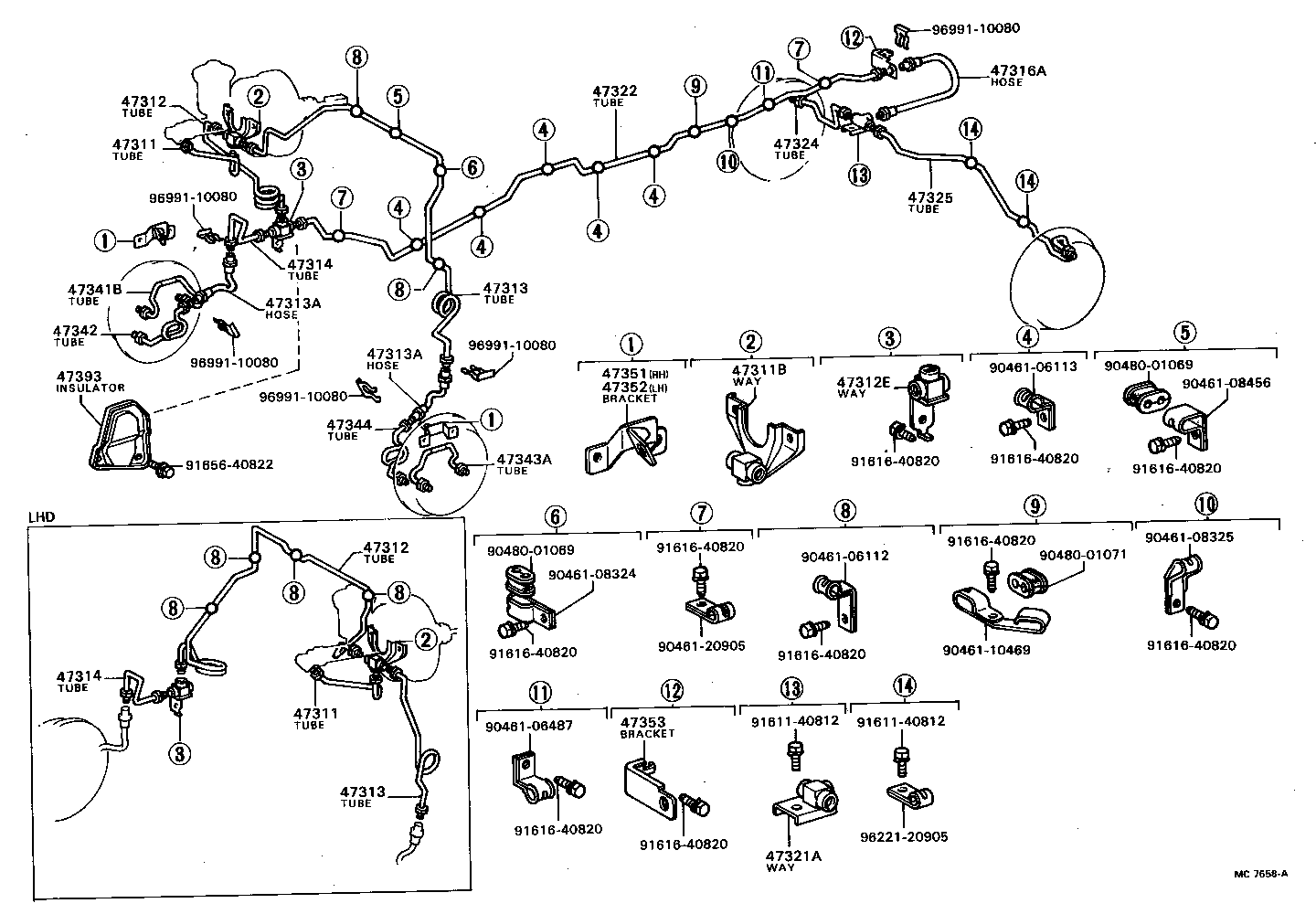

(7808-8108)LN30,40..GEN,SA ; (8108- )LN30,40..STD..GEN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90413-10067 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE MASTER CYLINDER |
1 | ||
| 90413-10058 |
RN41..DLX,STD;LN3#,4#,RN3#,40,46;RN41..SR5..(GEN,SA) TANDEM MASTER CYLINDER |
1 | ||
| 47312E - WAY, NO.2(FOR FRONT BRAKE TUBE) | ||||
| 90413-10057 |
LN3#,4#,RN30,36,40,46..GEN,PHL,SA SINGLE MASTER CYLINDER |
1 | ||
| 90412-10049 |
LN3#,4#,RN3#,4# TANDEM MASTER CYLINDER |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35121 |
RN41..RHD..(DLX,STD);LN30,40,RN30,31,40..RHD;RN41..RHD..SR5..(GEN,SA) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-35121 |
RN41..RHD..(DLX,STD);LN30,40,RN30,31,40..RHD;RN41..RHD..SR5..(GEN,SA) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02378 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02378 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
2 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35141 |
LN30,40,RN30,40..GEN,PHL,SA SINGLE MASTER CYLINDER |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-35141 |
LN30,40,RN30,40..GEN,PHL,SA SINGLE MASTER CYLINDER |
1 | ||
| 47321A - WAY(FOR REAR BRAKE TUBE) | ||||
| 90413-10054 |
LN30,40,RN30,31,40,41 |
1 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-35030 |
LN30,RN30,31 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-35010 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-35020 |
RN41..DLX,STD;LN30,40,RN30,31,40;RN41..SR5..(GEN,SA) |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47342-26010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47342 - TUBE, WHEEL CYLINDER, FRONT RH NO.2 | ||||
| 47341-35010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47342-26010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47344 - TUBE, WHEEL CYLINDER, FRONT LH NO.2 | ||||
| 47343-35010 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47354-35030 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47355-35030 |
RN31..ECB;RN41..SR5..GEN..ECB;LN30,40,RN30,40,41..DLX,STD FR DRUM BRAKE |
1 | ||
| 47353 - BRACKET, FLEXIBLE HOSE(FOR REAR) | ||||
| 47352-35040 |
RN31,41..ECB;LN30,40,RN30,40 W/O LSPV |
1 | ||
| 47352-35060 |
LN30,40,RN30,31,40,41..EUR,GEN,PHL,SA W/LSPV |
1 | ||
| Common parts | ||||
| 90461-06112 | ||||
| 90461-06113 | ||||
| 90461-06487 | ||||
| 90461-08324 | ||||
| 90461-08325 | ||||
| 90461-08456 | ||||
| 90461-10469 | ||||
| 90461-20905 | ||||
| 90480-01069 | ||||
| 90480-01071 | ||||
| 91611-40812 | ||||
| 91616-40820 | ||||
| 91656-40822 | ||||
| 96221-20905 | ||||
| 96991-10080 | ||||
