LN30L-KRS (1979)

Toyota Hilux

Production Sep 1979 - Jul 1983
Engine L
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(7808-8307)LHD

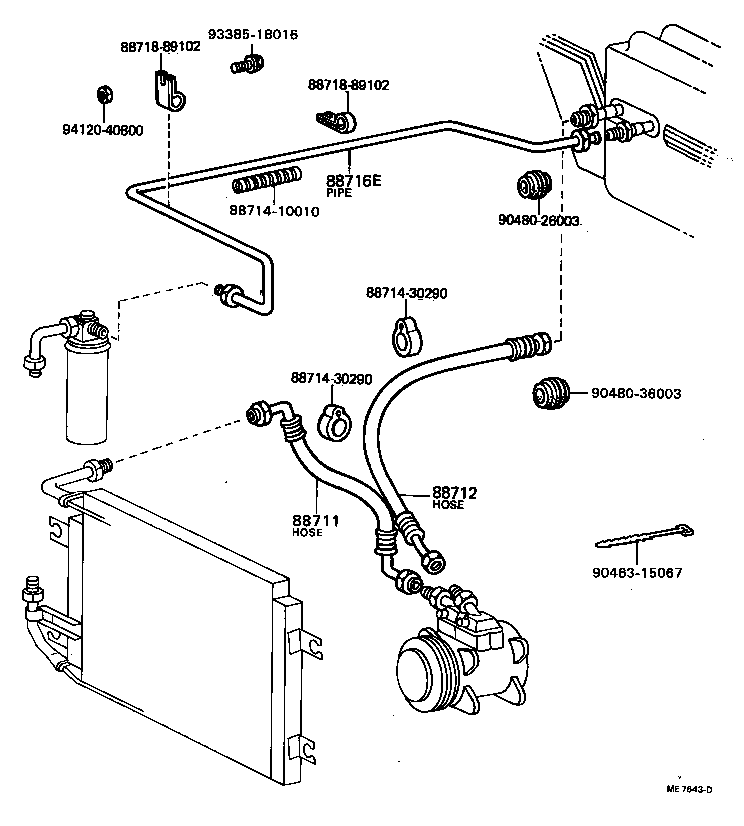

Click highlighted areas on diagram

diagram 88711 88712 8871410010 8871430290 8871430290 88716E 8871889102 8871889102 9046315067 9048026003 9048036003 9338518016 9412040800
Part # Description Qty Price
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-89109

LN30,40..GEN

 1
88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1
88712-22181

RN3#,4#..LHD..(GEN,PHL)

 1
88712-89111

LN3#,4#..LHD..GEN

 1
88712-22060

LN30,40..LHD..GEN

 1
88716E - PIPE, COOLER REFRIGERANT LIQUID, E
88716-89122

LN3#,4#,RN3#,4#..LHD..(GEN,PHL)

 1
88716-89131

LN3#,4#..LHD..GEN

 1
88716-89122

RN3#,4#..LHD..(GEN,ME)

 1
Common parts
88714-10010
88714-30290
88718-89102
90463-15067
90480-26003
90480-36003
93385-18016
94120-40800
