LN170L-CRMDXW (1997)

Toyota Hilux

Production Nov 1997 - Aug 2001
Engine 2LT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9711- )KDN150,170,LN150,170,RZN173

Click highlighted areas on diagram

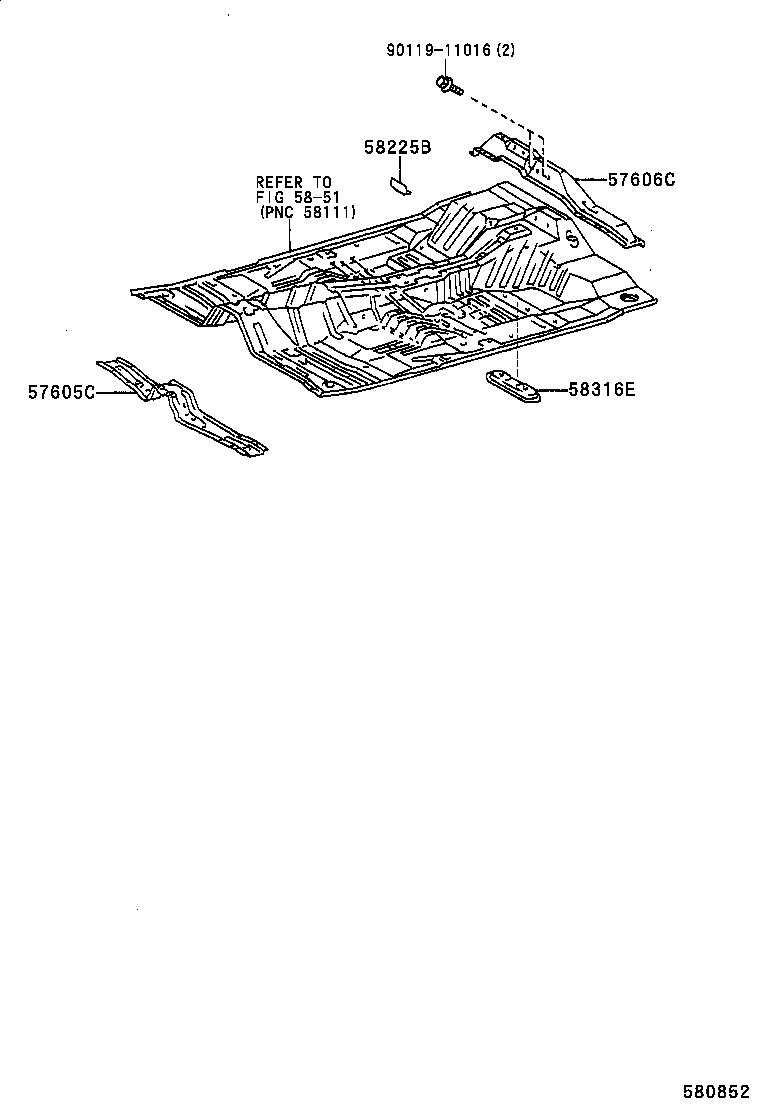

diagram 57605C 57606C 58225B 58316E 5851 9011911016
Part # Description Qty Price
57605C - MEMBER SUB-ASSY, REAR FLOOR CROSS
57605-35200

LN150,170,RZN173

 1
57606C - MEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57653-04010

LN150,170,RZN173

 1
58225B - PLATE, FRONT FLOOR SIDE, LOWER RH
58225-35020

LN150,170,RZN173

 2
58316E - RETAINER, REAR SEAT SET
58316-35030

LN150,170,RZN173

 2
Common parts
90119-11016
Linked diagrams
5851
