LN165R-TRMDXW (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 2LT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 5 OF 6(9708- )

Click highlighted areas on diagram

CABLE BOND

diagram 82001 82001 9011906915 9011906915 91612B1014 91612B1014
Part # Description Qty Price
82001 - CABLE, BOND, NO.1
82124-35190

LN145,150,165,170,190

 1
82001 - CABLE, BOND, NO.1
82124-35190

LN145,150,165,170,190

 1
Common parts
90119-06915
91612-B1014

ILLUST NO. 4 OF 6(9708- )

Click highlighted areas on diagram

ROOF,DOOR,FRAME & DIFF. WIRE

diagram 82127A 82151 82152 82153 82154 82164 82165 82171 82187 827112A720 8271135480 82817A 82817B 82821E 8826635600 9011906915 9017908230 9017908237 9046400165
Part # Description Qty Price
82151 - WIRE, FRONT DOOR, RH
82151-35190

LN145,150,165,170,RZN168,173..SCB,XTR

2SPEAKER

 1
82152 - WIRE, FRONT DOOR, LH
82151-35190

LN145,150,165,170,RZN168,173..SCB,XTR

W(SPEAKER)

 1
82164 - WIRE, FRAME
82164-3D140

LN145,165..RHD..SCB..CBU

UNITED KINGDOM SPEC & W(ABS)

 1
82164-3D070

LN165..RHD..SCB

 1
82164-3D080

LN165..RHD..SCB

W(ABS)

 1
82164-3D130

LN145,165..RHD..SCB..CBU

UNITED KINGDOM SPEC

 1
82171 - WIRE, ROOF, NO.1
82171-35370

LN145,165,RZN168..SCB

 1
Common parts
82711-2A720
82711-35480
88266-35600
90119-06915
90179-08230
90179-08237
90464-00165

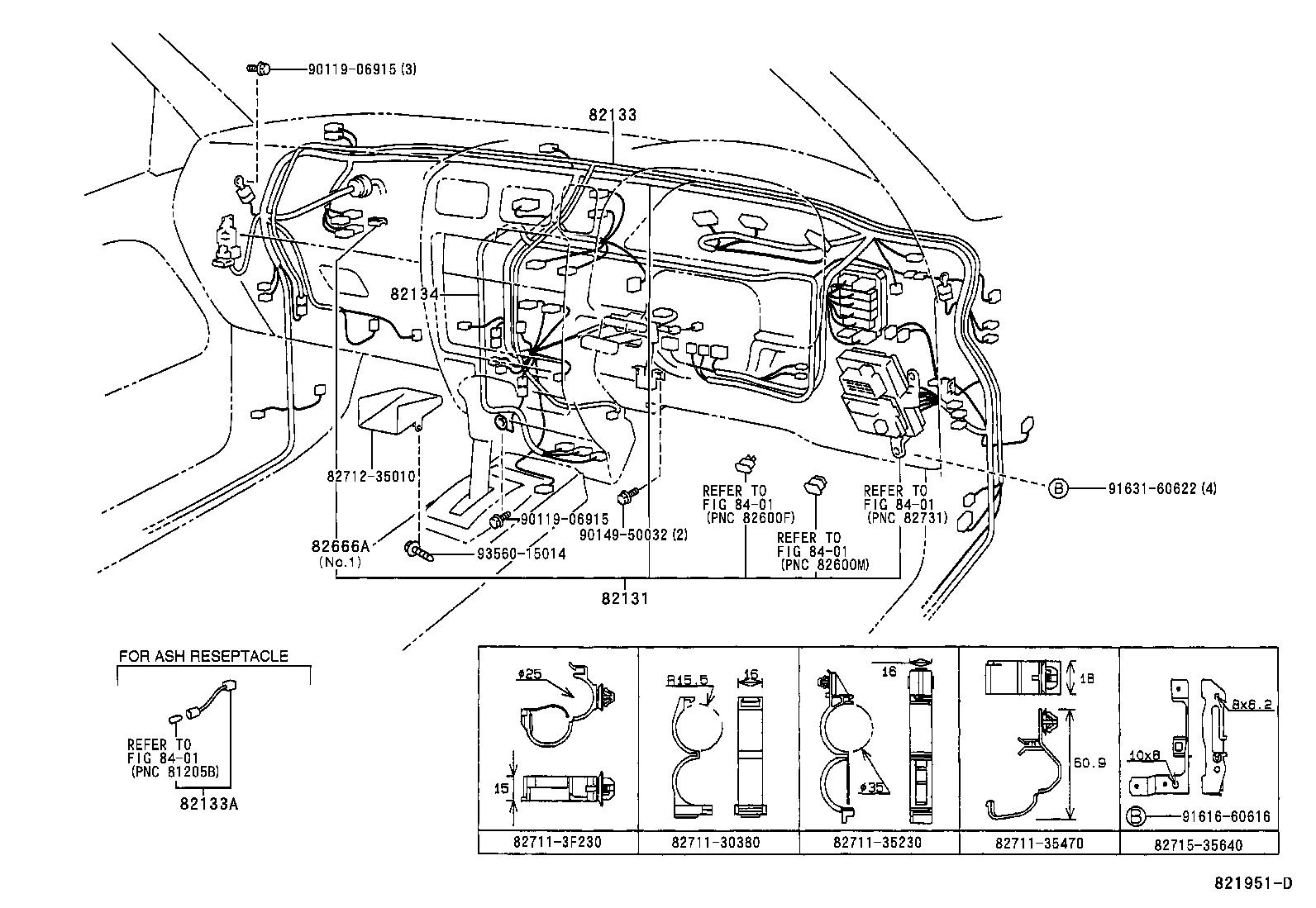

ILLUST NO. 3 OF 6(9708- )RHD

Click highlighted areas on diagram

COWL WIRE

diagram 82131 82133 82133A 82134 82666A 8271130380 8271135230 8271135470 827113F230 8271235010 8271535640 8401 8401 8401 8401 9011906915 9011906915 9014950032 9161660616 9163160622 9356015014
Part # Description Qty Price
82131 - WIRE, COWL
82135-3G420

LN165..RHD..SCB

 1
82135-3G410

LN145,165..RHD..SCB

UNITED KINGDOM SPEC

 1
82135-3G411

LN165..RHD..SCB

UNITED KINGDOM SPEC

 1
82135-3G421

LN165..RHD..SCB

 1
82135-3D510

LN165..RHD..SCB

 1
82135-3D500

LN165..RHD..SCB

UNITED KINGDOM SPEC

 1
82135-3G412

LN165..RHD..SCB

UNITED KINGDOM SPEC & W(*80)

 1
82135-3G422

LN165..RHD..SCB

W(*80)

 1
82133 - WIRE, COWL, NO.3
82133-35010

LN145,165..RHD

 1
82134 - WIRE, COWL, NO.4
82134-35030

LN145,165..RHD

 1
Common parts
82711-30380
82711-35230
82711-35470
82711-3F230
82712-35010
82715-35640
90119-06915
90149-50032
91616-60616
91631-60622
93560-15014
Linked diagrams
8401

ILLUST NO. 1 OF 6(9708- )LN145,150,165,170,190

Click highlighted areas on diagram

ENGINE WIRE

diagram 8271112200 8271135060 8271195J26 8271526460 8271530500 8271534190 8271535170 8271535320 8271535680 8271535880 827153D010 827153D020 827153D060 827153D200 827153D210 827153D220 827153D280 827153D290 827153D320 8271589101 8271589103 8271589104 8271589107 8271589113 8271589115 8271589118 8761635010 9011908671 9011908671 9011908671 9011908671 9011908A96 9011908A96 9011908A96 9011908A96 9016860010 91611B0614 91611B0614 91611B0614 91611B0812 9165140610
Part # Description Qty Price
Common parts
82711-12200
82711-35060
82711-95J26
82715-26460
82715-30500
82715-34190
82715-35170
82715-35320
82715-35680
82715-35880
82715-3D010
82715-3D020
82715-3D060
82715-3D200
82715-3D210
82715-3D220
82715-3D280
82715-3D290
82715-3D320
82715-89101
82715-89103
82715-89104
82715-89107
82715-89113
82715-89115
82715-89118
87616-35010
90119-08671
90119-08A96
90168-60010
91611-B0614
91611-B0812
91651-40610

ILLUST NO. 2 OF 6(9708- )LN145,150,165,170,190

Click highlighted areas on diagram

ENGINE ROOM

diagram 82111 82112 82124A 82210C 82261A 82662 8271114110 827111E350 8271135420 8271522070 827153D160 827153D161 827153D180 8281935140 82823T 82991 9011906431 9011906915 9017906158 91631B0614 9165160616 9165160616
Part # Description Qty Price
82111 - WIRE, ENGINE ROOM MAIN
82111-3G080

LN165..RHD

UNITED KINGDOM SPEC

 1
82111-3G070

LN165..RHD

 1
82111-3G740

LN165..RHD

UNITED KINGDOM SPEC

 1
82111-3G071

LN165..RHD

 1
82111-3G730

LN165..RHD

 1
82111-3G072

LN165..RHD

 1
82111-3G082

LN165..RHD

UNITED KINGDOM SPEC

 1
82111-3G081

LN165..RHD

UNITED KINGDOM SPEC

 1
82112 - WIRE, ENGINE ROOM, NO.2
82112-35020

LN145,165..RHD

 1
82112-35021

LN145,165..RHD

 1
82124A - WIRE, ENGINE, NO.5
82124-35070

LN145,150,165,170,190

 1
82210C - FUSIBLE LINK
90982-08281

LN145,150,165,170,190,RZN168,173

40A,TERM.:FEMALE,GRN,YAZAKI

 1
90982-08282

LN145,150,165,170,190,RZN168,173

50A,TERM.:FEMALE,RED,YAZAKI

 1
90982-08203

LN145,150,165,170,190,RZN168,173

80A,TERM.:MALE,BLK,TAIHEIYO

 1
90982-08284

LN145,150,165,170,190,RZN168,173

40A,TERM.:FEMALE,GRN,TAIHEIYO

 1
90982-08285

LN145,150,165,170,190,RZN168,173

50A,TERM.:FEMALE,RED,TAIHEIYO

 1
90982-08246

LN145,150,165,170,190

100A,TERM.:MALE,BLUE,TAIHEIYO

 1
82261A - WIRE, ALTERNATOR
82261-35110

LN145,165..RHD

 1
82662 - COVER, RELAY BLOCK, UPPER
82662-35560

LN145,165..RHD

UNITED KINGDOM SPEC

 1
82662-35550

LN165..RHD

 1
82662-35720

LN165;LN145,150,170..LHD

 1
82662-35770

LN165..RHD

UNITED KINGDOM SPEC

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

LN145,150,165,170,190

 1
82991 - WIRE, FUSIBLE LINK REPAIR
82991-35050

LN145,165..RHD

 1
Common parts
82711-14110
82711-1E350
82711-35420
82715-22070
82715-3D160
82715-3D161
82715-3D180
82819-35140
90119-06431
90119-06915
90179-06158
91631-B0614
91651-60616

ILLUST NO. 1 OF 6(9708- )LN145,150,165,170,190

Click highlighted areas on diagram

ENGINE WIRE

diagram 82121 82122 82123 82124 82127 82823S 9011906915 9011906915 9017906178 9017908053 9162140814 9164281216
Part # Description Qty Price
82121 - WIRE, ENGINE
82121-3D661

LN165..RHD

 1
82121-3D660

LN165..RHD

 1
82122 - WIRE, ENGINE, NO.2
82122-35580

LN165,170

COLD SPEC

 1
82123 - WIRE, ENGINE, NO.3
82123-35070

LN145,150,165,170,190

 1
82124 - WIRE, ENGINE, NO.4
82124-35110

LN165..SCB;LN165..DCB..CBU

COLD SPEC

 1
82823S - CAP, STARTER TERMINAL
82823-35070

LN145,150,165,170,190

MARK 82823-35070

 1
Common parts
90119-06915
90179-06178
90179-08053
91621-40814
91642-81216

ILLUST NO. 6 OF 6(9708- )

Click highlighted areas on diagram

CONNECTOR

diagram 9098010162 9098010173 9098010216 9098010359 9098010619 9098011019 9098011140 9098011142 9098011149 9098011162 9098011162 9098011248 9098011314
Part # Description Qty Price
Common parts
90980-10162
90980-10173
90980-10216
90980-10359
90980-10619
90980-11019
90980-11140
90980-11142
90980-11149
90980-11162
90980-11248
90980-11314
