LN165R-TRMDXW (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 2LT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0108)

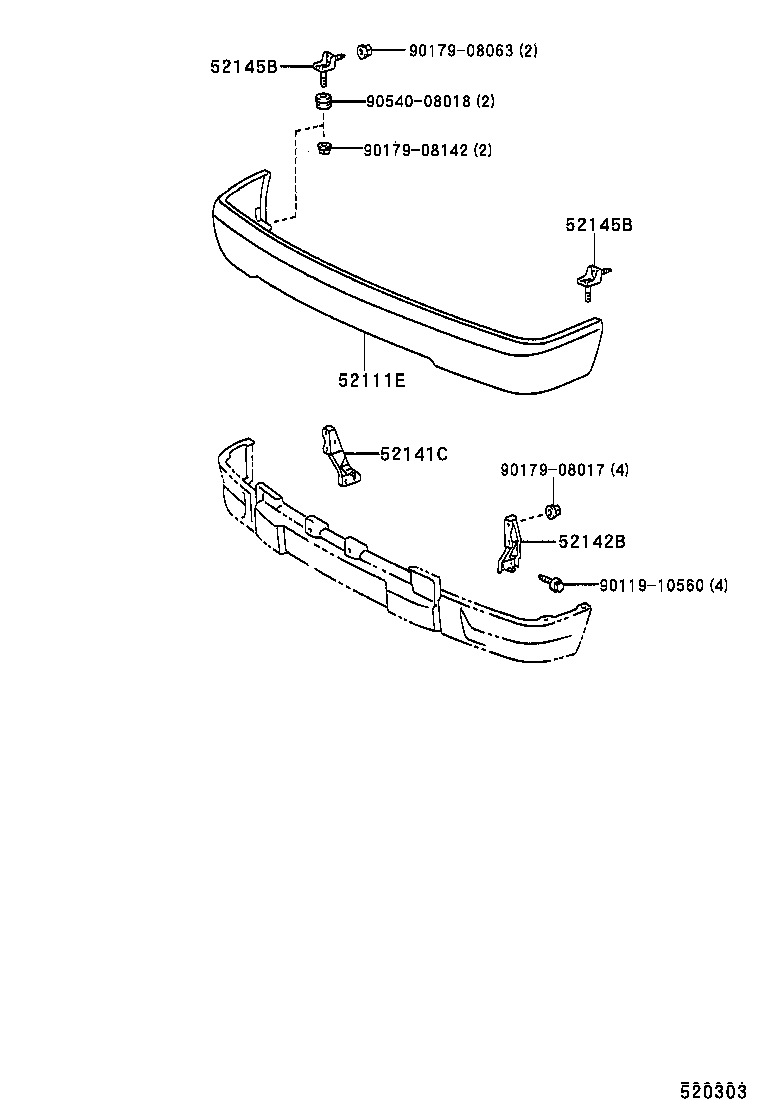

Click highlighted areas on diagram

diagram 52111E 52141C 52142B 52145B 52145B 9011910560 9017908017 9017908063 9017908142 9054008018
Part # Description Qty Price
52111E - BAR, FRONT BUMPER
52101-35360

LN165,170,190,RZN168,173

 1
52101-35370

LN165,170,190,RZN168,173

CHROME PLATED

 1
52141C - ARM, FRONT BUMPER, RH
52141-35060

LN145,150,165,170,190,RZN168,173

 1
52142B - ARM, FRONT BUMPER, LH
52142-35060

LN145,150,165,170,190,RZN168,173

 1
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN145,150,165,170,190,RZN168,173

 2
52145B - BRACKET, FRONT BUMPER SIDE MOUNTING
52145-89102

LN145,150,165,170,190,RZN168,173

 2
Common parts
90119-10560
90179-08017
90179-08063
90179-08142
90540-08018
