LN165R-PRMDXW (1997)
Toyota Hilux
(9708-0108)2L#

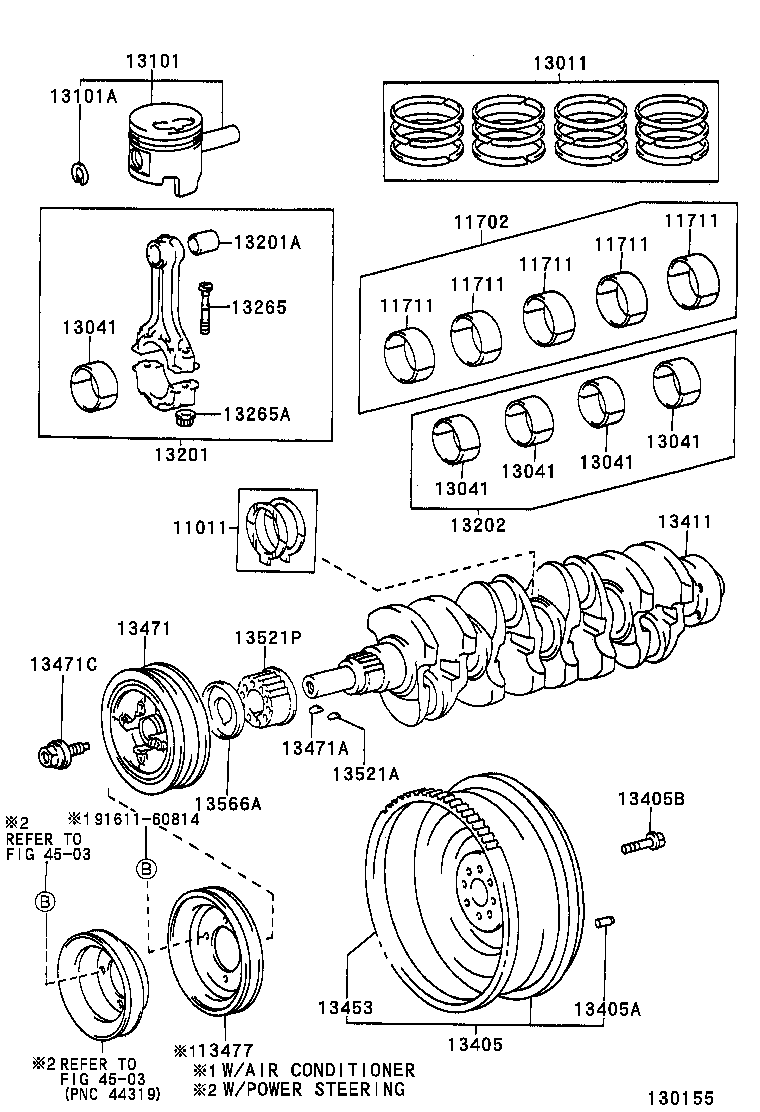

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11012-54020 |
2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190 O/S 0.125 |
1 | ||
| 11011-54020 |
2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190 STD |
1 | ||
| 11013-54020 |
2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190 O/S 0.250 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-54061 |
2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190 U/S 0.25 |
1 | ||
| 11705-54061 |
2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190 U/S 0.50 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406102 |
2L#..LN145,150,165,170,190 MARK 2,MARK 2 |
5 | ||
| 11701-5406103 |
2L#..LN145,150,165,170,190 MARK 3,MARK 3 |
5 | ||
| 11701-5406101 |
2L#..LN145,150,165,170,190 MARK 1,MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406102 |
2L#..LN145,150,165,170,190 MARK 2,MARK 2 |
5 | ||
| 11701-5406103 |
2L#..LN145,150,165,170,190 MARK 3,MARK 3 |
5 | ||
| 11701-5406101 |
2L#..LN145,150,165,170,190 MARK 1,MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406102 |
2L#..LN145,150,165,170,190 MARK 2,MARK 2 |
5 | ||
| 11701-5406103 |
2L#..LN145,150,165,170,190 MARK 3,MARK 3 |
5 | ||
| 11701-5406101 |
2L#..LN145,150,165,170,190 MARK 1,MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406102 |
2L#..LN145,150,165,170,190 MARK 2,MARK 2 |
5 | ||
| 11701-5406103 |
2L#..LN145,150,165,170,190 MARK 3,MARK 3 |
5 | ||
| 11701-5406101 |
2L#..LN145,150,165,170,190 MARK 1,MARK 1 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-5406102 |
2L#..LN145,150,165,170,190 MARK 2,MARK 2 |
5 | ||
| 11701-5406103 |
2L#..LN145,150,165,170,190 MARK 3,MARK 3 |
5 | ||
| 11701-5406101 |
2L#..LN145,150,165,170,190 MARK 1,MARK 1 |
5 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-54100 |
2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190 STD |
1 | ||
| 13014-54100 |
2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190 O/S 0.75 |
1 | ||
| 13015-54100 |
2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190 O/S 1.00 |
1 | ||
| 13013-54100 |
2L..LN145..LHD;2L..LN145..RHD..CBU;2L#..LN150,165,170,190 O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT..LN165,170,190 MARK 2,MARK 2 |
4 | ||
| 13041-5404103 |
2LT..LN165,170,190 MARK 3,MARK 3 |
4 | ||
| 13041-5404101 |
2LT..LN165,170,190 MARK 1,MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT..LN165,170,190 MARK 2,MARK 2 |
4 | ||
| 13041-5404103 |
2LT..LN165,170,190 MARK 3,MARK 3 |
4 | ||
| 13041-5404101 |
2LT..LN165,170,190 MARK 1,MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT..LN165,170,190 MARK 2,MARK 2 |
4 | ||
| 13041-5404103 |
2LT..LN165,170,190 MARK 3,MARK 3 |
4 | ||
| 13041-5404101 |
2LT..LN165,170,190 MARK 1,MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT..LN165,170,190 MARK 2,MARK 2 |
4 | ||
| 13041-5404103 |
2LT..LN165,170,190 MARK 3,MARK 3 |
4 | ||
| 13041-5404101 |
2LT..LN165,170,190 MARK 1,MARK 1 |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-5404102 |
2LT..LN165,170,190 MARK 2,MARK 2 |
4 | ||
| 13041-5404103 |
2LT..LN165,170,190 MARK 3,MARK 3 |
4 | ||
| 13041-5404101 |
2LT..LN165,170,190 MARK 1,MARK 1 |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-5409103 |
2LT..LN165,170 STD,MARK 3 |
4 | ||
| 13104-54091 |
2LT..LN165,170 O/S 0.75 |
4 | ||
| 13103-54091 |
2LT..LN165,170 O/S 0.50 |
4 | ||
| 13101-5409102 |
2LT..LN165,170 STD,MARK 2 |
4 | ||
| 13105-54091 |
2LT..LN165,170 O/S 1.00 |
4 | ||
| 13101-5409101 |
2LT..LN165,170 STD,MARK 1 |
4 | ||
| 13101-5414002 |
2LT..LN165,170,190 STD,MARK 2 |
4 | ||
| 13101-5414001 |
2LT..LN165,170,190 STD,MARK 1 |
4 | ||
| 13105-54140 |
2LT..LN165,170,190 O/S 1.00 |
4 | ||
| 13104-54140 |
2LT..LN165,170,190 O/S 0.75 |
4 | ||
| 13103-54140 |
2LT..LN165,170,190 O/S 0.50 |
4 | ||
| 13101-5414003 |
2LT..LN165,170,190 STD,MARK 3 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90521-31001 |
2LT..LN165,170,190 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-59105 |
2LT..LN165,170 |
4 | ||
| 13201-59106 |
2LT..LN165,170,190 |
4 | ||
| 13201A - BUSH(FOR CONNECTING ROD SMALL END) | ||||
| 90999-73115 |
2LT..LN165,170,190 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-54041 |
2LT..LN165,170,190 U/S 0.25 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-54021 |
2L#..LN145,150,165,170,190 |
8 | ||
| 13265-54020 |
2L#..LN145,150,165,170 |
8 | ||
| 13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT) | ||||
| 90179-10123 |
2L#..LN145,150,165,170,190 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-54080 |
2LT..LN165,170 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-08054 |
2L#..LN145,150,165,170 L=23,OD=8 |
3 | ||
| 13405B - BOLT, FLYWHEEL SETTING | ||||
| 90105-12109 |
2L#..LN145,150,165,170 |
8 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-54070 |
2LT..LN165,170,190 |
1 | ||
| 13401-54050 |
2LT..LN165,170,190 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-54010 |
2L#..LN145,150,165,170 |
1 | ||
| 13453-54010 |
2LT..LN165,170 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-54090 |
2L#..LN145,150,165,170,190 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30622 |
2L#..LN145,150,165,170,190 |
1 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90901-19028 |
2L#..LN145,150,165,170,190 |
1 | ||
| 13521A - KEY(FOR CRANKSHAFT TIMING GEAR) | ||||
| 95161-30622 |
2L#..LN145,150,165,170,190 |
1 | ||
| 13521P - PULLEY, CRANKSHAFT TIMING | ||||
| 13521-54030 |
2L#..LN145,150,165,170,190 |
1 | ||
| 13566A - GUIDE, TIMING BELT | ||||
| 13566-54040 |
2L#..LN145,150,165,170,190 |
1 | ||
| Common parts | ||||
| 91611-60814 | ||||
| Linked diagrams | ||||
| 4503 | ||||
