LN165L-PRMSXW (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 2LT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

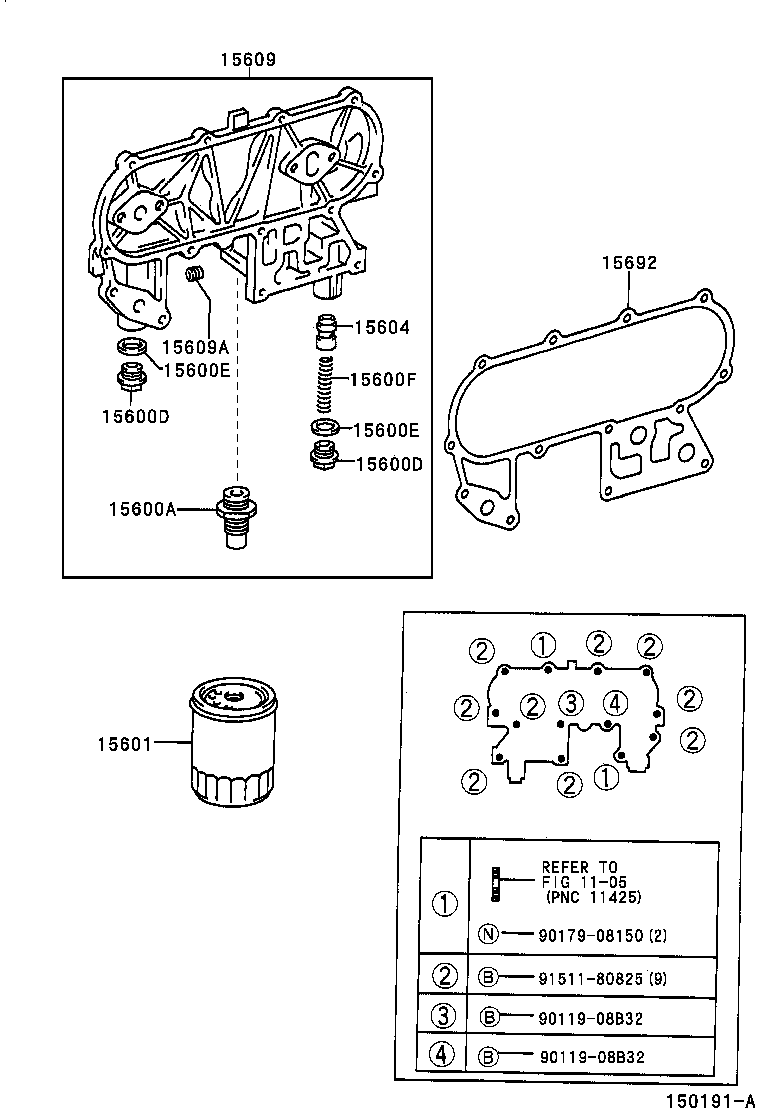

(9708-0108)2L

Click highlighted areas on diagram

diagram 1105 15600A 15600D 15600D 15600E 15600E 15600F 15601 15604 15609 15609A 15692 9011908B32 9011908B32 9017908150 9151180825
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54021

2L#..LN145,150,165,170,190

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LN145,150,165,170,190

 2
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LN145,150,165,170,190

 2
15600E - WASHER(FOR OIL FILTER)
90430-18029

2L#..LN145,150,165,170,190

 2
15600E - WASHER(FOR OIL FILTER)
90430-18029

2L#..LN145,150,165,170,190

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L#..LN145,150,165,170,190

 1
15601 - FILTER SUB-ASSY, OIL
90915-30002

2L#..LN145,150,165,170,190

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L#..LN145,150,165,170,190

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54102

2LT..LN165,170,190

 1
15609-54101

2LT..LN165,170

 1
15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET)
90344-54004

2LT..LN165,170,190

 1
15692 - GASKET, OIL FILTER BRACKET
15692-54050

2L#..LN145,150,165,170,190

 1
Common parts
90119-08B32
90179-08150
91511-80825
Linked diagrams
1105

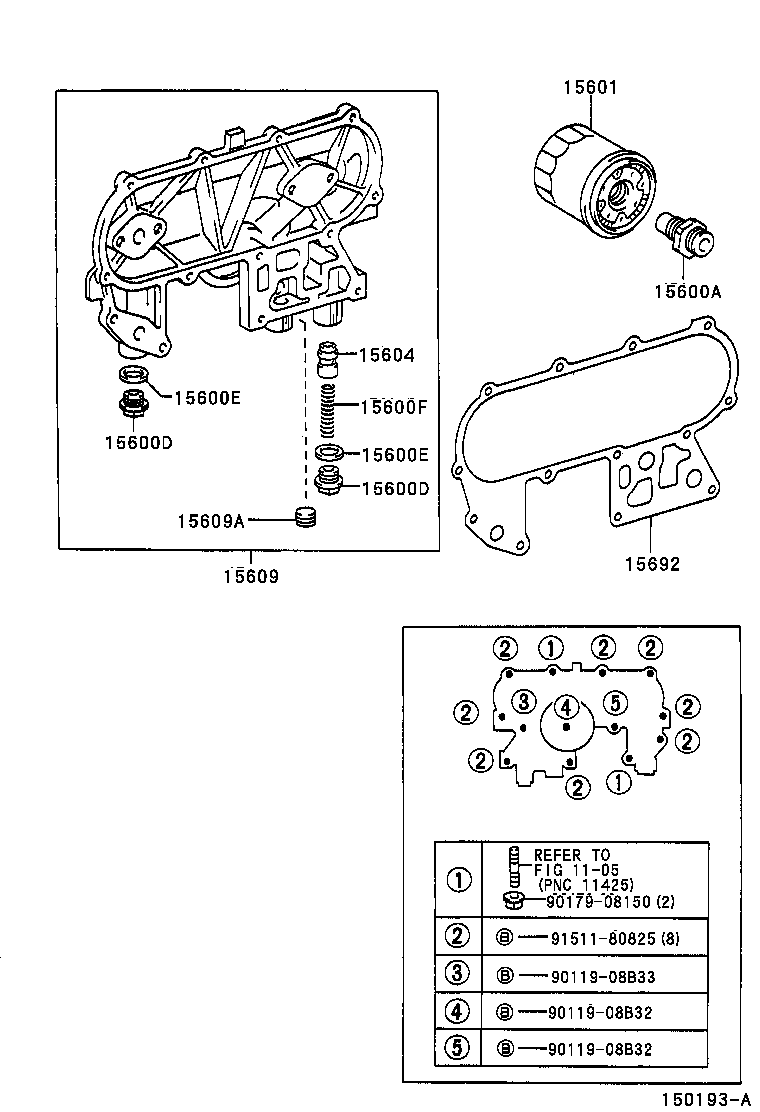

(9708-0108)2LT

Click highlighted areas on diagram

diagram 1105 15600A 15600D 15600D 15600E 15600E 15600F 15601 15604 15609 15609A 15692 9011908B32 9011908B32 9011908B33 9017908150 9151180825
Part # Description Qty Price
15600A - UNION(FOR OIL FILTER)
15116-54021

2L#..LN145,150,165,170,190

 1
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LN145,150,165,170,190

 2
15600D - PLUG(FOR OIL FILTER)
90341-18015

2L#..LN145,150,165,170,190

 2
15600E - WASHER(FOR OIL FILTER)
90430-18029

2L#..LN145,150,165,170,190

 2
15600E - WASHER(FOR OIL FILTER)
90430-18029

2L#..LN145,150,165,170,190

 2
15600F - SPRING, COMPRESSION(FOR OIL FILTER)
90501-16026

2L#..LN145,150,165,170,190

 1
15601 - FILTER SUB-ASSY, OIL
90915-30002

2L#..LN145,150,165,170,190

 1
15604 - VALVE SUB-ASSY, OIL SAFETY
15131-54010

2L#..LN145,150,165,170,190

 1
15609 - BRACKET SUB-ASSY, OIL FILTER
15609-54102

2LT..LN165,170,190

 1
15609-54101

2LT..LN165,170

 1
15609A - PLUG, TAPER SCREW(FOR OIL FILTER BRACKET)
90344-54004

2LT..LN165,170,190

 1
15692 - GASKET, OIL FILTER BRACKET
15692-54050

2L#..LN145,150,165,170,190

 1
Common parts
90119-08B32
90119-08B33
90179-08150
91511-80825
Linked diagrams
1105
