LN165L-PRMDXW3 (1998)
Toyota Hilux

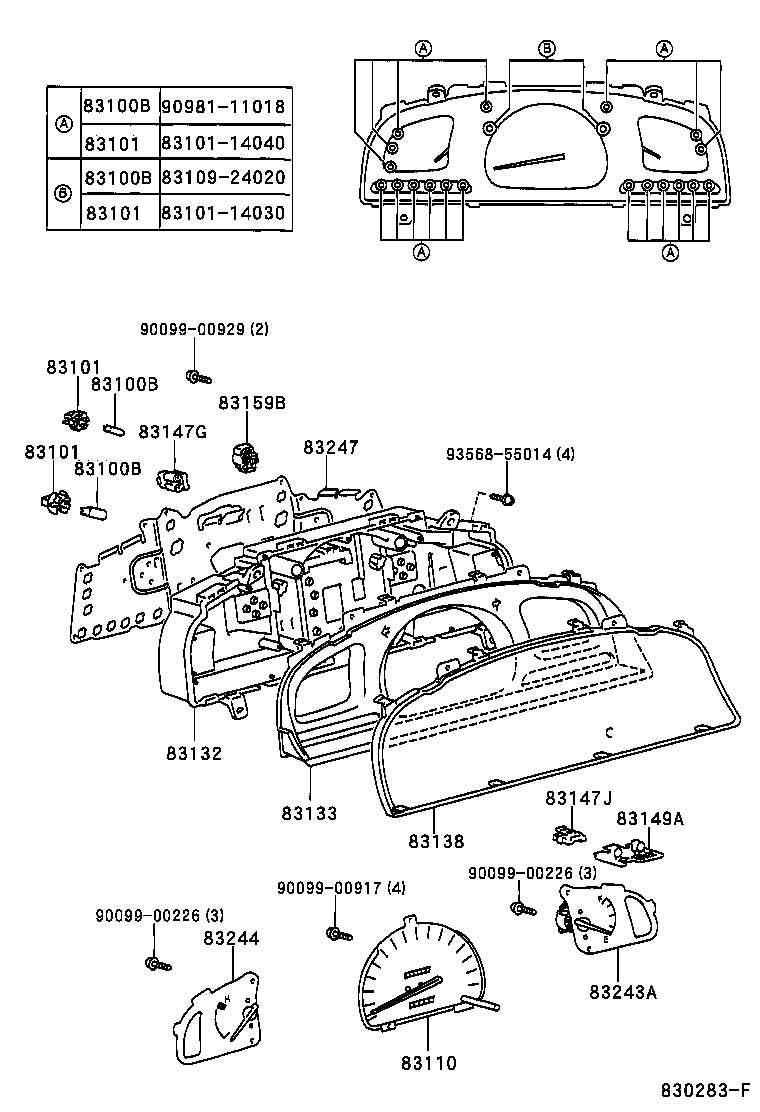

ILLUST NO. 1 OF 3(9708-0108)
COMBINATION METER, W/O(TACHOMETER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LN145,150,165,170..(DCB,XTR)..IV3 12V 1.2W W/O SOCKET,TYPE A:REFER ILLUST. |
1 | ||
| 83109-24020 |
LN145,150,165,170..(DCB,XTR)..IV3 12V3.4W W(GREEN CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LN145,150,165,170..(DCB,XTR)..IV3 12V 1.2W W/O SOCKET,TYPE A:REFER ILLUST. |
1 | ||
| 83109-24020 |
LN145,150,165,170..(DCB,XTR)..IV3 12V3.4W W(GREEN CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LN145,150,165,170..(DCB,XTR)..IV3 12V 1.2W W/O SOCKET,TYPE A:REFER ILLUST. |
1 | ||
| 83109-24020 |
LN145,150,165,170..(DCB,XTR)..IV3 12V3.4W W(GREEN CAP) |
1 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
LN145,150,165,170..(DCB,XTR)..IV3 12V 1.2W W/O SOCKET,TYPE A:REFER ILLUST. |
1 | ||
| 83109-24020 |
LN145,150,165,170..(DCB,XTR)..IV3 12V3.4W W(GREEN CAP) |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LN145,150,165,170,RZN168 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
LN145,150,165,170,RZN168..DLX TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LN145,150,165,170,RZN168 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
LN145,150,165,170,RZN168..DLX TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LN145,150,165,170,RZN168 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
LN145,150,165,170,RZN168..DLX TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14040 |
LN145,150,165,170,RZN168 TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83101-14040 |
LN145,150,165,170,RZN168..DLX TYPE A:REFER TO ILLUSTRATION |
1 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83220-35140 |
LN145,150,165,170..LHD..DLX |
1 | ||
| 83220-35141 |
LN145,150,165,170..LHD..DLX |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83841-35540 |
LN145,150,165,170..DLX |
1 | ||
| 83841-35470 |
LN145,165..RHD;LN145,150,165,170..(DCB,XTR)..IV3 W/O(TACHOMETER) |
1 | ||
| 83133 - PLATE, COMBINATION METER, NO.1 | ||||
| 83811-35380 |
LN145,150,165,170,RZN168,173..DLX |
1 | ||
| 83138 - GLASS, SPEEDOMETER | ||||
| 83852-35380 |
LN145,150,165,170,RZN168,173..DLX W/O(TACHOMETER) |
1 | ||
| 83147G - CONNECTOR, COMBINATION METER | ||||
| 83147-28010 |
LN145,150,165,170..DLX |
1 | ||
| 83147J - CONNECTOR, COMBINATION METER NO.2 | ||||
| 83147-16010 |
LN165,170..DLX |
1 | ||
| 83149A - PLATE, METER CIRCUIT, NO.2 | ||||
| 83149-1G610 |
LN165,170..DLX |
1 | ||
| 83159B - RELAY ASSY, METER | ||||
| 83159-22370 |
LN145,150,165,170,190 |
1 | ||
| 83243A - GAUGE SUB-ASSY, FUEL RECEIVER | ||||
| 83882-35380 |
LN145,150,165,170,RZN168,173..DLX |
1 | ||
| 83882-3D110 |
LN145,165..RHD;LN170,RZN168,173;LN145,150,165..(DCB,XTR)..IV3 W/O(TACHOMETER) |
1 | ||
| 83244 - GAUGE SUB-ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83883-35380 |
LN145,150,165,170,RZN168,173..DLX |
1 | ||
| 83883-3D110 |
LN145,165..RHD;LN170,RZN168,173;LN145,150,165..(DCB,XTR)..IV3 W/O(TACHOMETER) |
1 | ||
| 83247 - PLATE, METER CIRCUIT | ||||
| 83861-35560 |
LN145,150,165,170..DLX |
1 | ||
| 83861-3D130 |
LN145,150,165,170..DLX W/O(TACHOMETER) |
1 | ||
| Common parts | ||||
| 90099-00226 | ||||
| 90099-00917 | ||||
| 90099-00929 | ||||
| 93568-55014 | ||||
