LN165L-PRMDXW (1997)
Toyota Hilux

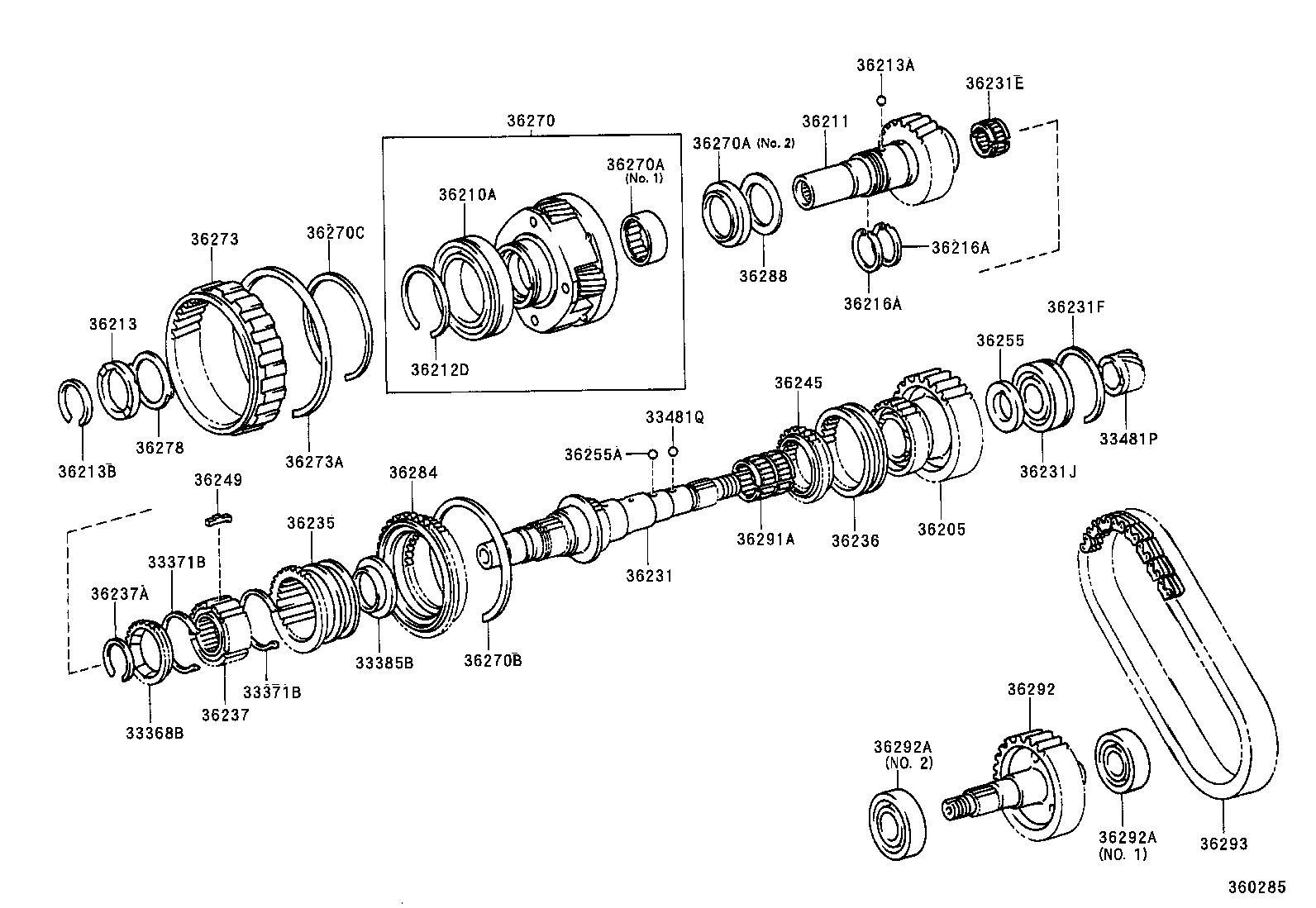

(9708- )KDN165..LHD..DCB ; (9708- )KDN170,LN165,170,RZN168,173
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33368B - RING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH) | ||||
| 33367-14010 |
LN165,170,RZN168,173 |
1 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
LN165,170,RZN168,173 |
2 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
LN165,170,RZN168,173 |
2 | ||
| 33385B - RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH | ||||
| 33385-35010 |
LN165,170,RZN168,173 |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-35111 |
LN165,170,RZN168,173 N=11 |
1 | ||
| 33481Q - KEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER) | ||||
| 90360-05012 |
LN165,170,RZN168,173 |
1 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-35090 |
LN165,170,RZN173..LHD W(A.D.D) |
1 | ||
| 36205-35070 |
LN165,170,RZN168,173 |
1 | ||
| 36205-35041 |
LN165,170,RZN168,173 |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
LN165,170,RZN168,173 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-35050 |
LN165,170,RZN168,173 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72002 |
LN165,170,RZN168,173 T=1.50,MARK 2 |
1 | ||
| 90520-72003 |
LN165,170,RZN168,173 T=1.55,MARK 3 |
1 | ||
| 90520-72004 |
LN165,170,RZN168,173 T=1.60,MARK 4 |
1 | ||
| 90520-72005 |
LN165,170,RZN168,173 T=1.65,MARK 5 |
1 | ||
| 90520-72001 |
LN165,170,RZN168,173 T=1.45,MARK 1 |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35020 |
LN165,170,RZN168,173 |
1 | ||
| 36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90360-05012 |
LN165,170,RZN168,173 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44004 |
LN165,170,RZN168,173 T=2.15-2.20 |
1 | ||
| 90520-44003 |
LN165,170,RZN168,173 T=2.10-2.15 |
1 | ||
| 90520-44006 |
LN165,170,RZN168,173 T=2.25-2.30 |
1 | ||
| 90520-44007 |
LN165,170,RZN168,173 T=2.30-2.35 |
1 | ||
| 90520-44010 |
LN165,170,RZN168,173 T=2.45-2.50 |
1 | ||
| 90520-44008 |
LN165,170,RZN168,173 T=2.35-2.40 |
1 | ||
| 90520-44017 |
LN165,170,RZN168,173 T=2.80-2.85 |
1 | ||
| 90520-44009 |
LN165,170,RZN168,173 T=2.40-2.45 |
1 | ||
| 90520-44005 |
LN165,170,RZN168,173 T=2.20-2.25 |
1 | ||
| 90520-44014 |
LN165,170,RZN168,173 T=2.65-2.70 |
1 | ||
| 90520-44016 |
LN165,170,RZN168,173 T=2.75-2.80 |
1 | ||
| 90520-44013 |
LN165,170,RZN168,173 T=2.60-2.65 |
1 | ||
| 90520-44018 |
LN165,170,RZN168,173 T=2.85-2.90 |
1 | ||
| 90520-44012 |
LN165,170,RZN168,173 T=2.55-2.60 |
1 | ||
| 90520-44019 |
LN165,170,RZN168,173 T=2.90-2.95 |
1 | ||
| 90520-44021 |
LN165,170,RZN168,173 T=3.00-3.05 |
1 | ||
| 90520-44015 |
LN165,170,RZN168,173 T=2.70-2.75 |
1 | ||
| 90520-44020 |
LN165,170,RZN168,173 T=2.95-3.00 |
1 | ||
| 90520-44011 |
LN165,170,RZN168,173 T=2.50-2.55 |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35011 |
LN165,170,RZN168,173 |
2 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35011 |
LN165,170,RZN168,173 |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36202-35030 |
LN165,170,RZN173..LHD W(A.D.D) |
1 | ||
| 36231-35030 |
LN165,170,RZN168,173 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
LN165,170,RZN168,173 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-71221 |
LN165,170,RZN168,173 T=1.65,ID=71.1 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32006 |
LN165,170,RZN168,173 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
LN165,170,RZN168,173 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-35050 |
LN165,170,RZN173..LHD W(A.D.D) |
1 | ||
| 36236-35040 |
LN165,170,RZN168,173 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-35030 |
LN165,170,RZN168,173 |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39010 |
LN165,170,RZN168,173 T=2.40-2.45,MARK G |
1 | ||
| 90520-39013 |
LN165,170,RZN168,173 T=2.00-2.05,MARK K |
1 | ||
| 90520-39005 |
LN165,170,RZN168,173 T=2.15-2.20,MARK B |
1 | ||
| 90520-39009 |
LN165,170,RZN168,173 T=2.35-2.40,MARK F |
1 | ||
| 90520-39004 |
LN165,170,RZN168,173 T=2.10-2.15,MARK A |
1 | ||
| 90520-39011 |
LN165,170,RZN168,173 T=2.45-2.50,MARK H |
1 | ||
| 90520-39012 |
LN165,170,RZN168,173 T=2.50-2.55,MARK J |
1 | ||
| 90520-39008 |
LN165,170,RZN168,173 T=2.30-2.35,MARK E |
1 | ||
| 90520-39014 |
LN165,170,RZN168,173 T=2.05-2.10,MARK L |
1 | ||
| 90520-39006 |
LN165,170,RZN168,173 T=2.20-2.25,MARK C |
1 | ||
| 90520-39007 |
LN165,170,RZN168,173 T=2.25-2.30,MARK D |
1 | ||
| 36245 - PIECE, TRANSFER FRONT DRIVE GEAR | ||||
| 36245-35040 |
LN165,170,RZN168,173 |
1 | ||
| 36249 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 | ||||
| 36249-35030 |
LN165,170,RZN168,173 |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35020 |
LN165,170,RZN168,173 |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-05012 |
LN165,170,RZN168,173 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-35900 |
LN165,170,RZN168,173 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90374-49001 |
LN165,170,RZN168,173 NO.2 |
1 | ||
| 90364-47001 |
LN165,170,RZN168,173 NO.1 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90374-49001 |
LN165,170,RZN168,173 NO.2 |
1 | ||
| 90364-47001 |
LN165,170,RZN168,173 NO.1 |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90521-99056 |
LN165,170,RZN168,173 T=1.8 |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99001 |
LN165,170,RZN168,173 |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35030 |
LN165,170,RZN168,173 |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90521-99052 |
LN165,170,RZN168,173 |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-35010 |
LN165,170,RZN168,173 T=0.95-1.05 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-35021 |
LN165,170,RZN168,173 |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
LN165,170,RZN168,173 |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37009 |
LN165,170,RZN168,173 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35020 |
LN165,170,RZN168,173 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
LN165,170,RZN168,173 NO.1 |
1 | ||
| 90363-32030 |
LN165,170,RZN168,173 NO.2 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
LN165,170,RZN168,173 NO.1 |
1 | ||
| 90363-32030 |
LN165,170,RZN168,173 NO.2 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35031 |
LN165,170,RZN168,173 |
1 | ||

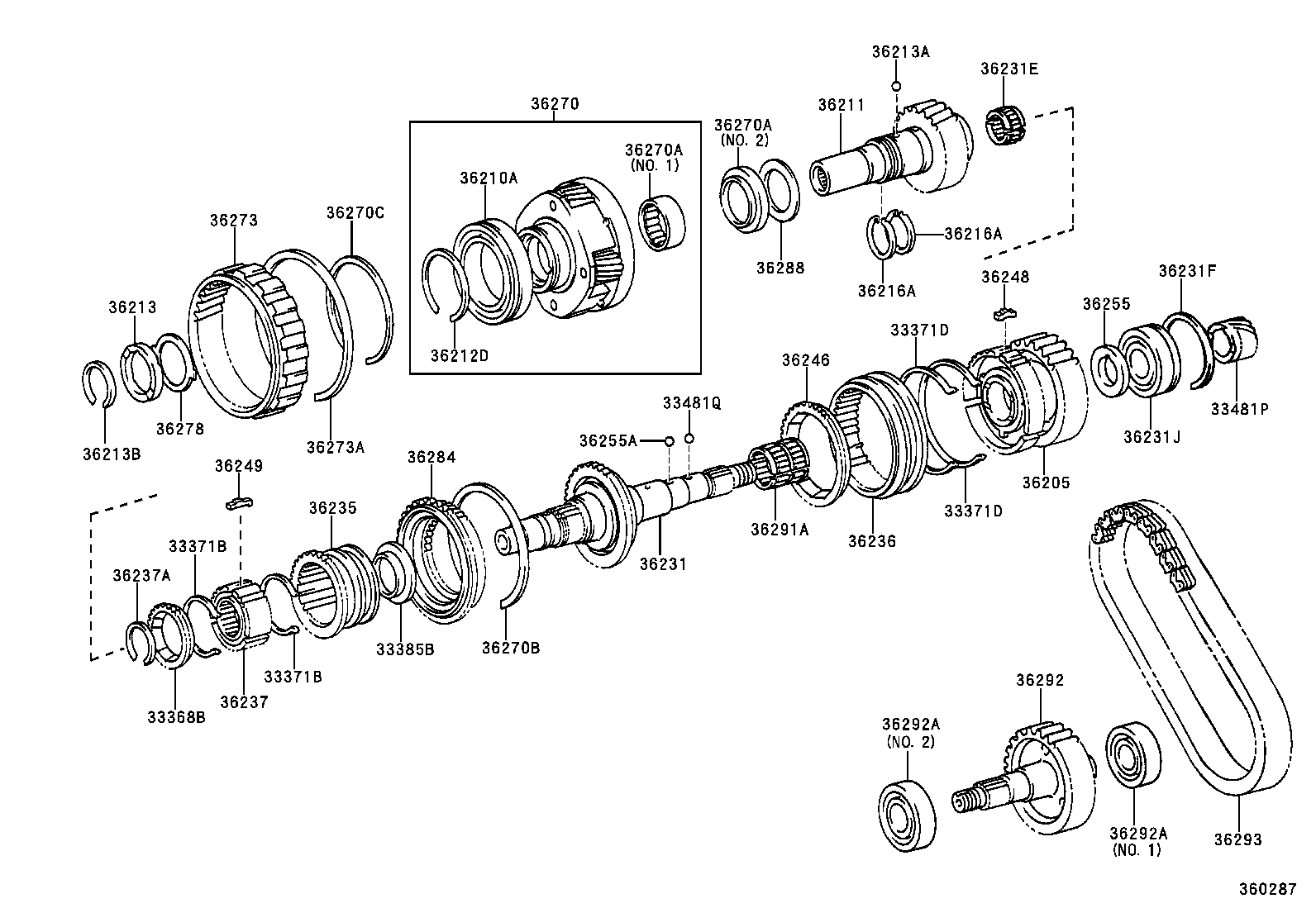

(9708- )LN165..LHD ; (9708- )KDN165,170,LN170,RZN173
W(AUTOMATIC DISCONNECTING DIF)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33368B - RING, SYNCHRONIZER (FOR TRANSFER FRONT DRIVE CLUTCH) | ||||
| 33367-14010 |
LN165,170,RZN168,173 |
1 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
LN165,170,RZN168,173 |
2 | ||
| 33371B - SPRING, SYNCHROMESH SHIFTING KEY (FOR TRANSFER) | ||||
| 33371-14010 |
LN165,170,RZN168,173 |
2 | ||
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
LN165,170,RZN173..LHD |
2 | ||
| 33371D - SPRING, SYNCHROMESH SHIFTING KEY, NO.1 (FOR TRANSFER) | ||||
| 33371-36030 |
LN165,170,RZN173..LHD |
2 | ||
| 33385B - RETAINER, SHIFTING KEY (FOR TRANSFER FRONT DRIVE CLUTCH | ||||
| 33385-35010 |
LN165,170,RZN168,173 |
1 | ||
| 33481P - GEAR, SPEEDOMETER DRIVE (FOR TRANSFER) | ||||
| 33481-35111 |
LN165,170,RZN168,173 N=11 |
1 | ||
| 33481Q - KEY OR BALL, SPEEDOMETER DRIVE GEAR (FOR TRANSFER) | ||||
| 90360-05012 |
LN165,170,RZN168,173 |
1 | ||
| 36205 - SPROCKET SUB-ASSY, TRANSFER DRIVE | ||||
| 36205-35090 |
LN165,170,RZN173..LHD W(A.D.D) |
1 | ||
| 36205-35070 |
LN165,170,RZN168,173 |
1 | ||
| 36205-35041 |
LN165,170,RZN168,173 |
1 | ||
| 36210A - BEARING (FOR TRANSFER INPUT SHAFT) | ||||
| 90363-75001 |
LN165,170,RZN168,173 |
1 | ||
| 36211 - SHAFT, TRANSFER INPUT | ||||
| 36201-35050 |
LN165,170,RZN168,173 |
1 | ||
| 36212D - RING, SHAFT SNAP (FOR TRANSFER INPUT BEARING) | ||||
| 90520-72002 |
LN165,170,RZN168,173 T=1.50,MARK 2 |
1 | ||
| 90520-72003 |
LN165,170,RZN168,173 T=1.55,MARK 3 |
1 | ||
| 90520-72004 |
LN165,170,RZN168,173 T=1.60,MARK 4 |
1 | ||
| 90520-72005 |
LN165,170,RZN168,173 T=1.65,MARK 5 |
1 | ||
| 90520-72001 |
LN165,170,RZN168,173 T=1.45,MARK 1 |
1 | ||
| 36213 - STOPPER, TRANSFER INPUT GEAR | ||||
| 36213-35020 |
LN165,170,RZN168,173 |
1 | ||
| 36213A - BALL (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90360-05012 |
LN165,170,RZN168,173 |
1 | ||
| 36213B - RING, SHAFT SNAP (FOR TRANSFER INPUT GEAR STOPPER) | ||||
| 90520-44004 |
LN165,170,RZN168,173 T=2.15-2.20 |
1 | ||
| 90520-44003 |
LN165,170,RZN168,173 T=2.10-2.15 |
1 | ||
| 90520-44006 |
LN165,170,RZN168,173 T=2.25-2.30 |
1 | ||
| 90520-44007 |
LN165,170,RZN168,173 T=2.30-2.35 |
1 | ||
| 90520-44010 |
LN165,170,RZN168,173 T=2.45-2.50 |
1 | ||
| 90520-44008 |
LN165,170,RZN168,173 T=2.35-2.40 |
1 | ||
| 90520-44017 |
LN165,170,RZN168,173 T=2.80-2.85 |
1 | ||
| 90520-44009 |
LN165,170,RZN168,173 T=2.40-2.45 |
1 | ||
| 90520-44005 |
LN165,170,RZN168,173 T=2.20-2.25 |
1 | ||
| 90520-44014 |
LN165,170,RZN168,173 T=2.65-2.70 |
1 | ||
| 90520-44016 |
LN165,170,RZN168,173 T=2.75-2.80 |
1 | ||
| 90520-44013 |
LN165,170,RZN168,173 T=2.60-2.65 |
1 | ||
| 90520-44018 |
LN165,170,RZN168,173 T=2.85-2.90 |
1 | ||
| 90520-44012 |
LN165,170,RZN168,173 T=2.55-2.60 |
1 | ||
| 90520-44019 |
LN165,170,RZN168,173 T=2.90-2.95 |
1 | ||
| 90520-44021 |
LN165,170,RZN168,173 T=3.00-3.05 |
1 | ||
| 90520-44015 |
LN165,170,RZN168,173 T=2.70-2.75 |
1 | ||
| 90520-44020 |
LN165,170,RZN168,173 T=2.95-3.00 |
1 | ||
| 90520-44011 |
LN165,170,RZN168,173 T=2.50-2.55 |
1 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35011 |
LN165,170,RZN168,173 |
2 | ||
| 36216A - RING, TRANSFER INPUT SHAFT SEAL, NO.1 | ||||
| 36216-35011 |
LN165,170,RZN168,173 |
2 | ||
| 36231 - SHAFT, TRANSFER OUTPUT, REAR | ||||
| 36202-35030 |
LN165,170,RZN173..LHD W(A.D.D) |
1 | ||
| 36231-35030 |
LN165,170,RZN168,173 |
1 | ||
| 36231E - BEARING, NEEDLE ROLLER (FOR TRANSFER OUTPUT SHAFT FRONT | ||||
| 90364-28004 |
LN165,170,RZN168,173 |
1 | ||
| 36231F - RING, SHAFT SNAP (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90520-71221 |
LN165,170,RZN168,173 T=1.65,ID=71.1 |
1 | ||
| 36231J - BEARING, RADIAL BALL (FOR TRANSFER OUTPUT SHAFT REAR) | ||||
| 90363-32006 |
LN165,170,RZN168,173 |
1 | ||
| 36235 - SLEEVE, TRANSFER HIGH & LOW CLUTCH | ||||
| 36235-35021 |
LN165,170,RZN168,173 |
1 | ||
| 36236 - SLEEVE, FRONT DRIVE CLUTCH | ||||
| 36236-35050 |
LN165,170,RZN173..LHD W(A.D.D) |
1 | ||
| 36236-35040 |
LN165,170,RZN168,173 |
1 | ||
| 36237 - HUB, TRANSFER CLUTCH | ||||
| 36237-35030 |
LN165,170,RZN168,173 |
1 | ||
| 36237A - RING, SHAFT SNAP (FOR TRANSFER CLUTCH HUB) | ||||
| 90520-39010 |
LN165,170,RZN168,173 T=2.40-2.45,MARK G |
1 | ||
| 90520-39013 |
LN165,170,RZN168,173 T=2.00-2.05,MARK K |
1 | ||
| 90520-39005 |
LN165,170,RZN168,173 T=2.15-2.20,MARK B |
1 | ||
| 90520-39009 |
LN165,170,RZN168,173 T=2.35-2.40,MARK F |
1 | ||
| 90520-39004 |
LN165,170,RZN168,173 T=2.10-2.15,MARK A |
1 | ||
| 90520-39011 |
LN165,170,RZN168,173 T=2.45-2.50,MARK H |
1 | ||
| 90520-39012 |
LN165,170,RZN168,173 T=2.50-2.55,MARK J |
1 | ||
| 90520-39008 |
LN165,170,RZN168,173 T=2.30-2.35,MARK E |
1 | ||
| 90520-39014 |
LN165,170,RZN168,173 T=2.05-2.10,MARK L |
1 | ||
| 90520-39006 |
LN165,170,RZN168,173 T=2.20-2.25,MARK C |
1 | ||
| 90520-39007 |
LN165,170,RZN168,173 T=2.25-2.30,MARK D |
1 | ||
| 36246 - RING, TRANSFER FRONT DRIVE SYNCHRONIZER | ||||
| 36246-35060 |
LN165,170,RZN173..LHD |
1 | ||
| 36248 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.1 | ||||
| 36248-35030 |
LN165,170,RZN173..LHD |
3 | ||
| 36249 - KEY, SYNCHROMESH SHIFTING, TRANSFER DRIVE, NO.2 | ||||
| 36249-35030 |
LN165,170,RZN168,173 |
3 | ||
| 36255 - SPACER, TRANSFER OUTPUT SHAFT, NO.1 | ||||
| 36255-35020 |
LN165,170,RZN168,173 |
1 | ||
| 36255A - BALL (FOR TRANSFER OUTPUT SHAFT SPACER) | ||||
| 90360-05012 |
LN165,170,RZN168,173 |
1 | ||
| 36270 - GEAR ASSY, TRANSFER LOW PLANETARY | ||||
| 36270-35900 |
LN165,170,RZN168,173 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90374-49001 |
LN165,170,RZN168,173 NO.2 |
1 | ||
| 90364-47001 |
LN165,170,RZN168,173 NO.1 |
1 | ||
| 36270A - BEARING (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90374-49001 |
LN165,170,RZN168,173 NO.2 |
1 | ||
| 90364-47001 |
LN165,170,RZN168,173 NO.1 |
1 | ||
| 36270B - RING, SHAFT SNAP (FOR TRANSFER LOW PLANETARY GEAR) | ||||
| 90521-99056 |
LN165,170,RZN168,173 T=1.8 |
1 | ||
| 36270C - RING, SHAFT SNAP(FOR TRANSFER LOW PLANETARY GEAR BEARIN | ||||
| 90520-99001 |
LN165,170,RZN168,173 |
1 | ||
| 36273 - GEAR, TRANSFER LOW PLANETARY RING | ||||
| 36273-35030 |
LN165,170,RZN168,173 |
1 | ||
| 36273A - RING, HOLE SNAP (FOR TRANSFER LOW PLANETARY RING GEAR) | ||||
| 90521-99052 |
LN165,170,RZN168,173 |
1 | ||
| 36278 - WASHER, MANUAL TRANSFER PLANETARY CARRIER | ||||
| 36278-35010 |
LN165,170,RZN168,173 T=0.95-1.05 |
1 | ||
| 36284 - PIECE, TRANSFER LOW PLANETARY GEAR SPLINE | ||||
| 36284-35021 |
LN165,170,RZN168,173 |
1 | ||
| 36288 - RACE, TRANSFER THRUST BEARING, NO.1 | ||||
| 36288-28010 |
LN165,170,RZN168,173 |
1 | ||
| 36291A - BEARING (FOR TRANSFER DRIVE SPROCKET) | ||||
| 90364-37009 |
LN165,170,RZN168,173 |
1 | ||
| 36292 - SPROCKET, TRANSFER DRIVEN | ||||
| 36292-35020 |
LN165,170,RZN168,173 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
LN165,170,RZN168,173 NO.1 |
1 | ||
| 90363-32030 |
LN165,170,RZN168,173 NO.2 |
1 | ||
| 36292A - BEARING (FOR TRANSFER DRIVEN SPROCKET) | ||||
| 90363-28004 |
LN165,170,RZN168,173 NO.1 |
1 | ||
| 90363-32030 |
LN165,170,RZN168,173 NO.2 |
1 | ||
| 36293 - CHAIN, TRANSFER FRONT DRIVE | ||||
| 36293-35031 |
LN165,170,RZN168,173 |
1 | ||
Part Price Details
Loading price information...
Part Number:
Price:
