LN165L-PRMDXW (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 2LT
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708- )2L

Click highlighted areas on diagram

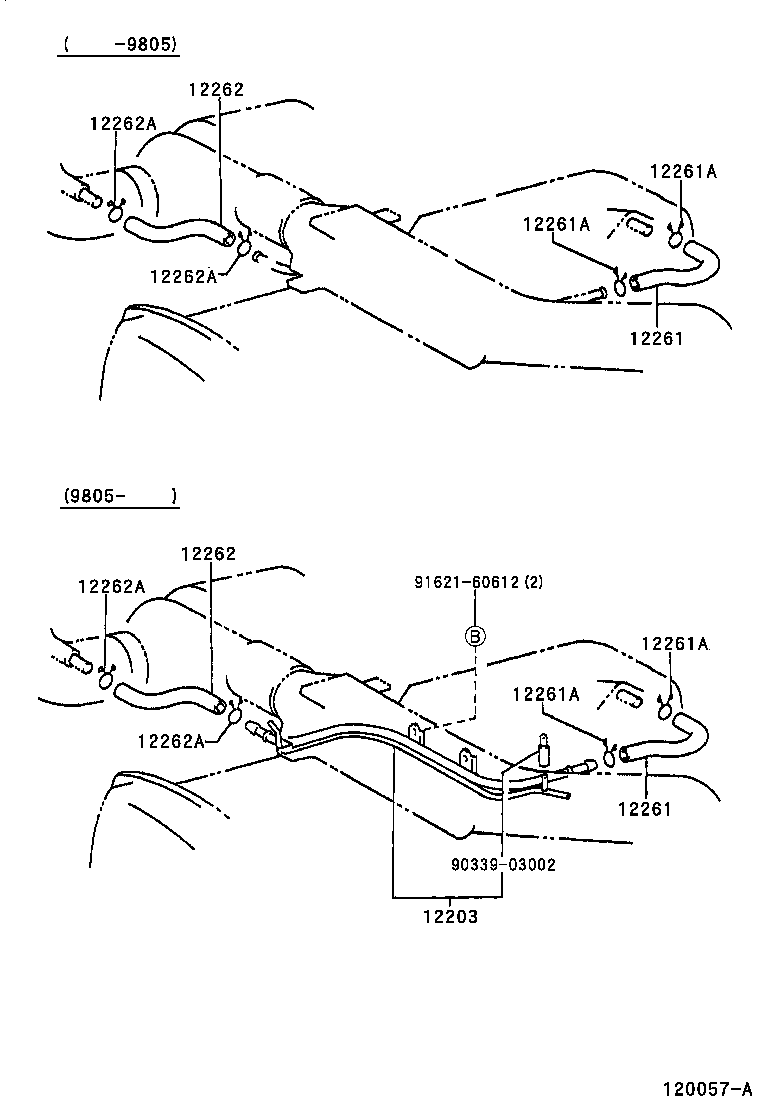

diagram 12261 12261A 12261A
Part # Description Qty Price
12261 - HOSE, VENTILATION
12261-54090

2LT..LN165,170,190..LHD

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2LT..LN165..LHD;2L#..LN145,150,170,190

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2LT..LN165..LHD;2L#..LN145,150,170,190

 2

(9708- )2LT..LHD

Click highlighted areas on diagram

diagram 12203 12261 12261 12261A 12261A 12261A 12261A 12262 12262 12262A 12262A 12262A 12262A 9033903002 9162160612
Part # Description Qty Price
12203 - PIPE SUB-ASSY, VENTILATION
12203-54020

2LT..LN165,170,190..LHD

 1
12261 - HOSE, VENTILATION
12261-54090

2LT..LN165,170,190..LHD

 1
12261 - HOSE, VENTILATION
12261-54090

2LT..LN165,170,190..LHD

 1
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2LT..LN165..LHD;2L#..LN145,150,170,190

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2LT..LN165..LHD;2L#..LN145,150,170,190

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2LT..LN165..LHD;2L#..LN145,150,170,190

 2
12261A - CLIP OR CLAMP(FOR VENTILATION HOSE)
90467-18003

2LT..LN165..LHD;2L#..LN145,150,170,190

 2
12262 - HOSE, VENTILATION, NO.2
12262-54050

2LT..LN165,170,190..LHD

 1
12262 - HOSE, VENTILATION, NO.2
12262-54050

2LT..LN165,170,190..LHD

 1
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18003

2LT..LN165,170,190..LHD

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18003

2LT..LN165,170,190..LHD

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18003

2LT..LN165,170,190..LHD

 2
12262A - CLIP(FOR VENTILATION HOSE NO.2)
90467-18003

2LT..LN165,170,190..LHD

 2
Common parts
90339-03002
91621-60612
