LN150L-CRMDSW (1997)

Toyota Hilux

Production Nov 1997 - Aug 2001
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9711- )KDN150,165,170,LN150,170,RZN173..SCB,XTR

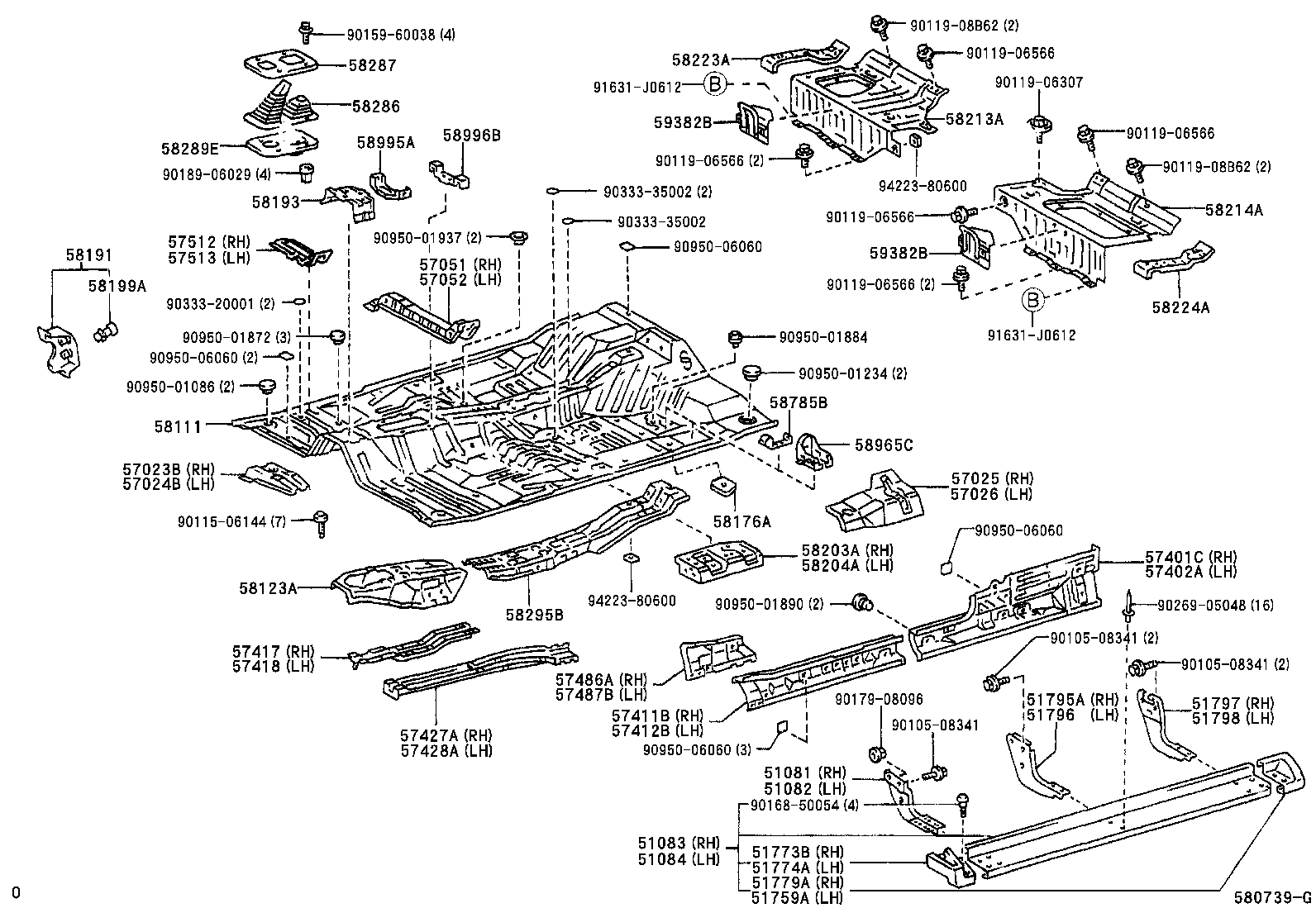

Click highlighted areas on diagram

diagram 51081 51082 51083 51084 51759A 51773B 51774A 51779A 51795A 51796 51797 51798 57023B 57024B 57025 57026 57051 57052 57401C 57402A 57411B 57412B 57417 57418 57427A 57428A 57486A 57487B 57512 57513 58111 58123A 58176A 58191 58193 58199A 58203A 58204A 58213A 58214A 58223A 58224A 58286 58287 58289E 58295B 58785B 58965C 58995A 58996B 59382B 59382B 9010508341 9010508341 9010508341 9011506144 9011906307 9011906566 9011906566 9011906566 9011906566 9011906566 9011908B62 9011908B62 9015960038 9016850054 9017908096 9018906029 9026905048 9033320001 9033335002 9033335002 9095001086 9095001234 9095001872 9095001884 9095001890 9095001937 9095006060 9095006060 9095006060 9095006060 91631J0612 91631J0612 9422380600 9422380600
Part # Description Qty Price
57023B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 RH
57023-35050

LN145,150,165,170,190,RZN168,173

 1
57024B - BRACKET SUB-ASSY, BODY MOUNTING, NO.2 LH
57024-35050

LN145,150,165,170,190,RZN168,173

 1
57025 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 RH
57025-35050

LN150,170,RZN173

 1
57026 - BRACKET SUB-ASSY, BODY MOUNTING, NO.3 LH
57026-35070

LN150,170,RZN173

 1
57051 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, RH
57051-35041

LN145,150,165,170,RZN168,173

W(SPLIT TYPE FRONT SEAT)

 1
57051-35040

LN150,170,RZN173

 1
57052 - MEMBER SUB-ASSY, FRONT FLOOR CROSS, LH
57052-35040

LN150,170,RZN173

 1
57052-35041

LN145,150,165,170,RZN168,173

W(SPLIT TYPE FRONT SEAT)

 1
57401C - MEMBER SUB-ASSY, FLOOR SIDE, INNER RH
57401-35030

LN150,170,RZN173

 1
57401-35020

LN150,170,RZN173

W(REAR JUMP SEAT)

 1
57402A - MEMBER SUB-ASSY, FLOOR SIDE, INNER LH
57402-35020

LN150,170,RZN173

W(REAR JUMP SEAT)

 1
57402-35030

LN150,170,RZN173

 1
57411B - MEMBER, FLOOR SIDE, INNER RH
57411-35050

LN145,150,165,170,190,RZN168,173

 1
57412B - MEMBER, FLOOR SIDE, INNER LH
57412-35050

LN145,150,165,170,190,RZN168,173

 1
57427A - REINFORCEMENT, FRONT FLOOR, NO.3 RH
57427-35020

LN145,150,165,170,190,RZN168,173..DCB,XTR

 1
57428A - REINFORCEMENT, FRONT FLOOR, NO.3 LH
57428-35020

LN145,150,165,170,190,RZN168,173..DCB,XTR

 1
57486A - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 RH
57486-35020

LN145,150,165,170,190,RZN168,173

 1
57487B - REINFORCEMENT, FLOOR SIDE MEMBER, NO.1 LH
57487-35020

LN145,150,165,170,190,RZN168,173

 1
57512 - REINFORCEMENT, FRONT FLOOR, RH
57512-35030

LN150,170,RZN173

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57513-35030

LN150,170,RZN173

 1
58111 - PAN, FRONT FLOOR
58111-04281

LN150

 1
58111-04280

LN150

 1
58123A - SUPPORT, SHIFT & SELECT LEVER
58123-35052

LN145,150,165,170,RZN168,173

 1
58123-35050

LN145,150,165,170,RZN168,173

 1
58123-35051

LN145,150,165,170,RZN168,173

 1
58176A - PLATE, REAR SEAT SETTING NUT
58176-35020

LN150,170,RZN173

 2
58193 - BRACKET, INSTRUMENT PANEL BRACE MOUNTING
58193-35040

LN145,150,165,170,190,RZN168,173

 1
58203A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, RH
58203-35010

LN150,170,RZN173

 1
58204A - REINFORCEMENT SUB-ASSY, CENTER FLOOR PANEL, LH
58204-35010

LN150,170,RZN173

 1
58213A - PANEL, SEAT FLOOR, RH
58213-04030

LN150,170,RZN173

W(WALK-IN SEAT)

 1
58213-04040

LN150,170,RZN173

 1
58214A - PANEL, SEAT FLOOR, LH
58214-04020

LN150,170,RZN173

W(WALK-IN SEAT)

 1
58214-04030

LN150,170,RZN173

 1
58223A - REINFORCEMENT, FLOOR SIDE PANEL, RH
58223-35010

LN150,170,RZN173

 1
58224A - REINFORCEMENT, FLOOR SIDE PANEL, LH
58224-35010

LN150,170,RZN173

 1
58286 - BOOT, SHIFT & SELECT LEVER, NO.1
58286-35150

LN145,150

 1
58287 - RETAINER, SHIFT LEVER BOOT
58287-35060

LN145,150

 1
58289E - BOOT, SHIFT LEVER, NO.2
58289-35120

LN145,150

 1
58295B - REINFORCEMENT, SEAT BELT ANCHOR FLOOR
58295-35010

LN150,170,RZN173

 1
58295-04030

LN150,170,RZN173

 1
58785B - BRACKET, TOOL BAG BAND
58785-89106

LN145,150,165,170,190,RZN168,173..DCB,XTR

 1
58965C - HOLDER, JACK
58965-35010

LN150,170,RZN173

 1
58995A - BRACKET, CONSOLE BOX MOUNTING, NO.1
58995-35030

LN145,150,165,170,190,RZN168,173

 1
58996B - BRACKET, CONSOLE BOX MOUNTING, NO.2
58996-35010

LN145,150,165,170,190,RZN168,173

 1
59382B - STRIKER, REAR SEAT LEG LOCK
59382-35010

LN150,170,RZN173

 2
59382B - STRIKER, REAR SEAT LEG LOCK
59382-35010

LN150,170,RZN173

 2
Common parts
90105-08341
90115-06144
90119-06307
90119-06566
90119-08B62
90159-60038
90168-50054
90179-08096
90189-06029
90269-05048
90333-20001
90333-35002
90950-01086
90950-01234
90950-01872
90950-01884
90950-01890
90950-01937
90950-06060
91631-J0612
94223-80600
