LN145R-TRMDSW (1997)
Toyota Hilux

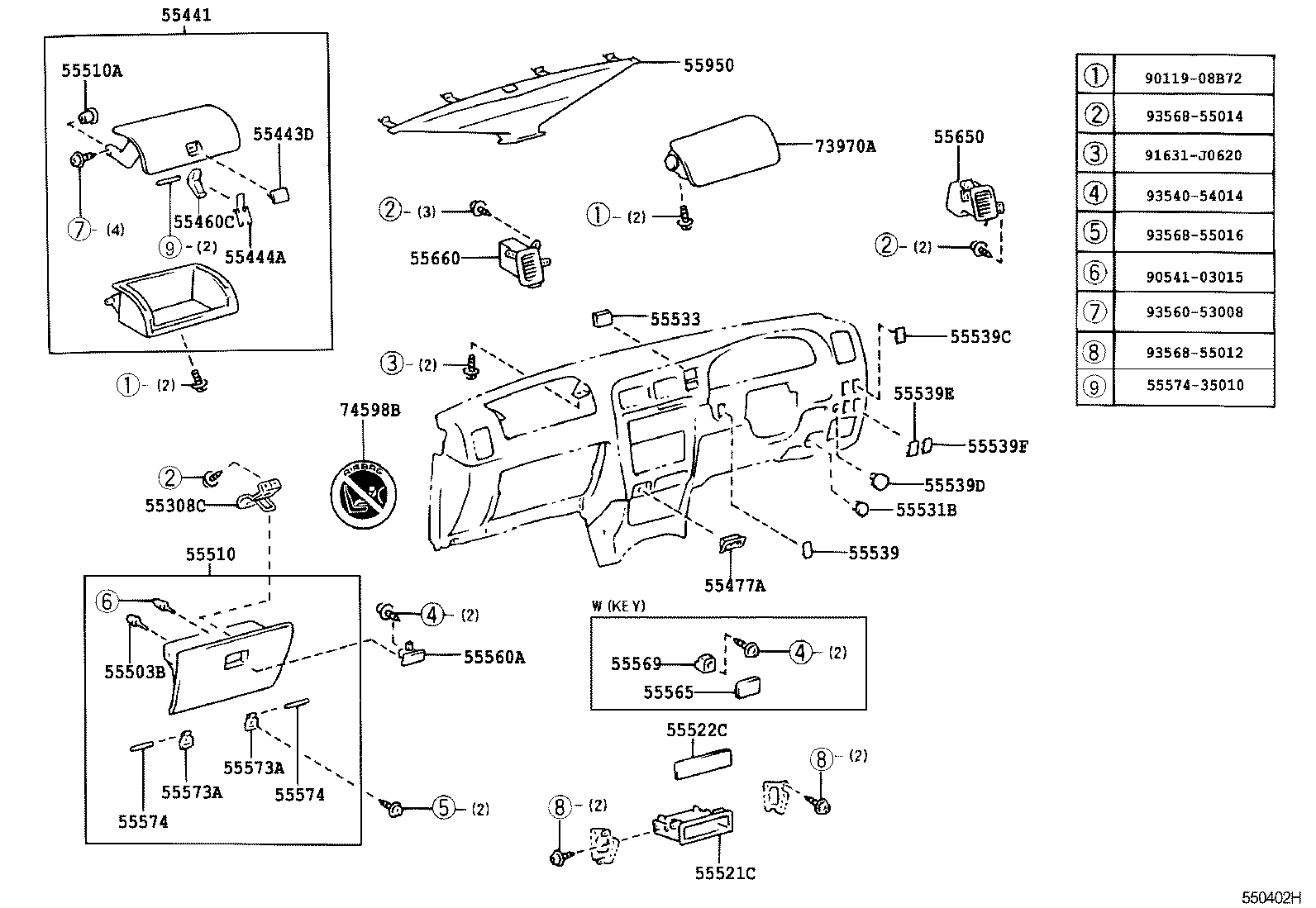

ILLUST NO. 2 OF 2(9708- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55308C - BRACKET SUB-ASSY, INSTRUMENT PANEL, CENTER | ||||
| 55308-35020 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 55441 - BOX, INSTRUMENT PANEL | ||||
| 55440-35010B0 |
LN145,165..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 55443D - KNOB, INSTRUMENT PANEL BOX DOOR | ||||
| 55443-35010B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 55444A - SPRING, INSTRUMENT PANEL BOX | ||||
| 55444-35010 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 55460C - LOCK ASSY, INSTRUMENT PANEL BOX | ||||
| 55460-35010 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 55477A - BEZEL, CIGARETTE LIGHTER HOLE | ||||
| 55477-35010 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 55503B - CUSHION(FOR GLOVE COMPARTMENT) | ||||
| 90541-05080 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 55510 - DOOR ASSY, GLOVE COMPARTMENT | ||||
| 55550-35010B0 |
LN145,150,165,170,190,RZN168,173 MD. MOON MIST,TRIM1# |
1 | ||
| 55510A - CUSHION(FOR GLOVE COMPARTMENT DOOR) | ||||
| 58871-30020 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 55521C - COVER, STEREO OPENING | ||||
| 55521-89102 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 55522C - COVER, RADIO RECEIVER OPENING | ||||
| 55522-89105 |
RZN168;LN145..SCB;LN145..DCB..CBU;LN150,165,170,RZN173..CBU |
1 | ||
| 55522-89105 |
LN145,150,165,170,RZN168,173 |
1 | ||
| 55522-89105 |
RZN168;LN145..SCB;LN165..RHD;LN145,150,165,170,190,RZN173..LHD..(DCB,XTR)..CBU |
1 | ||
| 55533 - COVER, AUTO CLOCK HOLE | ||||
| 55533-35030 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 55539 - COVER, SPARE SWITCH HOLE | ||||
| 55539-32010B2 |
LN165..SCB;LN165..LHD..DCB;LN145,150,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 55539D - COVER, SPARE SWITCH HOLE | ||||
| 55539-35010B0 |
LN145,165..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 55539E - COVER, SPARE SWITCH HOLE | ||||
| 55539-12130B2 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-20080B2 |
LN145,150,165,170,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 55539F - COVER, SPARE SWITCH HOLE | ||||
| 55539-20080B2 |
LN145,150,165,170,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 55539-12130B2 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 55560A - LOCK ASSY, GLOVE COMPARTMENT DOOR | ||||
| 55560-34020B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-32010 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 55573A - HINGE, GLOVE COMPARTMENT DOOR | ||||
| 55573-32010 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 90254-04016 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 55574 - SHAFT, GLOVE COMPARTMENT DOOR HINGE | ||||
| 90254-04016 |
LN145,150,165,170,190,RZN168,173 |
2 | ||
| 55650 - REGISTER ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55650-35050 |
LN145,165..RHD |
1 | ||
| 55660 - REGISTER ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55660-35070 |
LN145,165..RHD |
1 | ||
| 55950 - NOZZLE ASSY, DEFROSTER | ||||
| 55950-35010 |
LN145,165..RHD |
1 | ||
| 73970A - AIR BAG ASSY, INSTRUMENT PANEL PASSENGER | ||||
| 73970-0W110B0 |
LN145,165..RHD MD. MOON MIST,TRIM1# |
1 | ||
| 74598B - LABEL, PASSENGER AIR BAG CAUTION | ||||
| 74598-20010 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| Common parts | ||||
| 55574-35010 | ||||
| 90119-08B72 | ||||
| 90541-03015 | ||||
| 91631-J0620 | ||||
| 93540-54014 | ||||
| 93560-53008 | ||||
| 93568-55012 | ||||
| 93568-55014 | ||||
| 93568-55016 | ||||

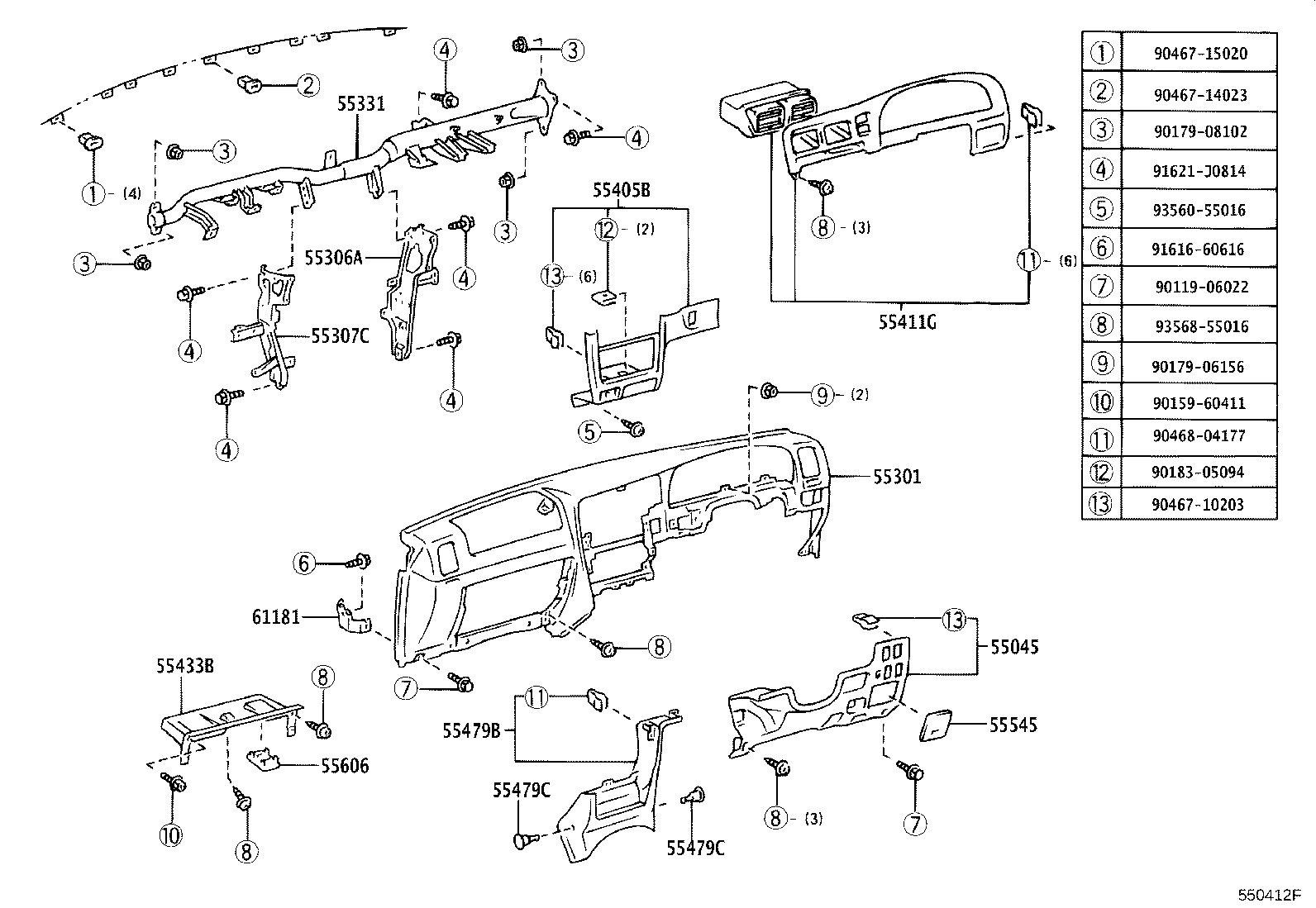

ILLUST NO. 1 OF 2(9708- )RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55045 - PANEL SUB-ASSY, INSTRUMENT PANEL FINISH, LOWER | ||||
| 55045-35040B0 |
LN145,165..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 55301 - PANEL SUB-ASSY, INSTRUMENT | ||||
| 55301-35090B0 |
LN145,165..RHD W(HEATER & BOOST VENTILATOR),MD.MOON MIST,TRIM1# |
1 | ||
| 55301-35110B0 |
LN145,165..RHD W(INSTRUMENT PANEL UPPER BOX & HEATER & BOOST VENTILATOR),MD.MOON MIST,TRIM1# |
1 | ||
| 55301-35100B0 |
LN145,165..RHD W(*80,DRIVER SIDE & PASSENGER SIDE & HEATER & BOOST VENTILATOR),MD.MOON MIST,TRIM1# |
1 | ||
| 55306A - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.1 | ||||
| 55306-35060 |
LN145,165..RHD |
1 | ||
| 55306-35040 |
LN145,165..RHD |
1 | ||
| 55307C - BRACE SUB-ASSY, INSTRUMENT PANEL, NO.2 | ||||
| 55307-35040 |
LN145,165..RHD |
1 | ||
| 55331 - REINFORCEMENT, INSTRUMENT PANEL | ||||
| 55330-35070 |
LN145,165..RHD |
1 | ||
| 55330-35071 |
LN145,165..RHD |
1 | ||
| 55405B - PANEL SUB-ASSY, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55405-35100 |
LN145,165..RHD RADIO OPENING SPACE = 1 DIN SIZE |
1 | ||
| 55405-35010 |
LN145,165..RHD RADIO OPENING SPACE = 2 DIN SIZE |
1 | ||
| 55411G - PANEL, INSTRUMENT CLUSTER FINISH, NO.1 | ||||
| 55404-35150 |
LN145,165..RHD |
1 | ||
| 55433B - PANEL, INSTRUMENT PANEL FINISH, LOWER NO.2 | ||||
| 55433-35030 |
LN145,165..RHD |
1 | ||
| 55479B - COVER, INSTRUMENT, LOWER CENTER | ||||
| 55407-35050B0 |
LN145,165..RHD MD.MOON MIST,TRIM1# |
1 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07041B5 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
2 | ||
| 55479C - CLIP(FOR INSTRUMENT LOWER COVER) | ||||
| 90467-07041B5 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
2 | ||
| 55545 - COVER, FUSE BOX OPENING | ||||
| 55545-35010B0 |
LN145,150,165,170,190,RZN168,173 MD.MOON MIST,TRIM1# |
1 | ||
| 55606 - COVER SUB-ASSY, INSTRUMENT PANEL UNDER, NO.1 | ||||
| 55606-35010 |
LN145,150,165,170,190,RZN168,173 |
1 | ||
| 61181 - BRACKET, INSTRUMENT PANEL SIDE | ||||
| 61181-35020 |
LN145,165..RHD |
1 | ||
| Common parts | ||||
| 90119-06022 | ||||
| 90159-60411 | ||||
| 90179-06156 | ||||
| 90179-08102 | ||||
| 90183-05094 | ||||
| 90467-10203 | ||||
| 90467-14023 | ||||
| 90467-15020 | ||||
| 90468-04177 | ||||
| 91616-60616 | ||||
| 91621-J0814 | ||||
| 93560-55016 | ||||
| 93568-55016 | ||||
