LN145R-TRMDSW (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0108)RHD

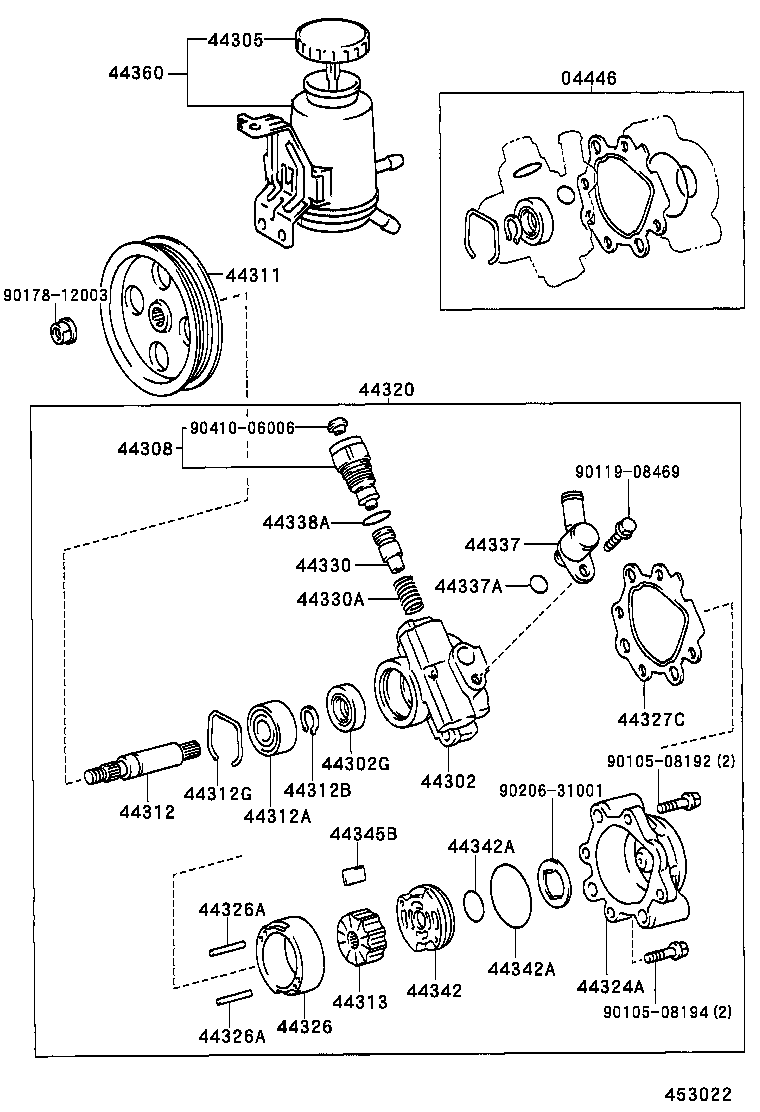

Click highlighted areas on diagram

diagram 04446 44302 44302G 44305 44308 44311 44312 44312A 44312B 44312G 44313 44320 44324A 44326 44326A 44326A 44327C 44330 44330A 44337 44337A 44338A 44342 44342A 44342A 44345B 44360 9010508192 9010508194 9011908469 9017812003 9020631001 9041006006
Part # Description Qty Price
04446 - GASKET KIT, POWER STEERING PUMP
04446-30120

LN145,165..RHD..CBU;RZN168,173..DCB,XTR

 1
44302 - HOUSING SUB-ASSY, VANE PUMP, FRONT
44302-26012

LN145,165..RHD

 1
44302-26030

LN145,165..RHD

 1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18015

LN145,165..RHD

 1
90311-17007

RZN168..SCB;LN145,165..RHD

 1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-35020

LN145..LHD;LN145..RHD..CBU;LN150,165,170,190

 1
44308 - UNION SUB-ASSY, PRESSURE PORT
44308-26041

LN145,165..RHD

 1
44311 - PULLEY, VANE PUMP
44311-26040

LN145,165..RHD

 1
44311-26060

LN145,165..RHD

 1
44312 - SHAFT, VANE PUMP
44312-26010

RZN168..SCB;LN145,165..RHD

 1
44312-32020

LN145,165..RHD

 1
44312A - BEARING(FOR VANE PUMP SHAFT)
90363-17013

RZN168..SCB;LN145,165..RHD

 1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003

LN190;LN145,165..RHD

W(POWER STEERING)

 1
90520-15005

LN145,165..RHD

 1
44312G - RING, SNAP, NO.2(FOR VANE PUMP SHAFT BEARING)
90521-44002

RZN168..SCB;LN145,165..RHD

 1
44313 - ROTOR, VANE PUMP
44313-26070

LN145,165..RHD

MARK 1

 1
44313-26080

LN145,165..RHD

MARK 2

 1
44313-26060

LN145,165..RHD

NO MARK

 1
44313-26090

LN145,165..RHD

MARK 3

 1
44313-26100

LN145,165..RHD

MARK 4

 1
44320 - PUMP ASSY, VANE
44320-35521

LN145,165..RHD

 1
44320-35520

LN145,165..RHD

 1
44324A - HOUSING, PUMP, REAR
44324-28030

LN145,165..RHD

 1
44326 - RING, CAM(FOR VANE PUMP)
44325-32280

LN145,165..RHD

MARK 1

 1
44325-32300

LN145,165..RHD

MARK 3

 1
44325-32290

LN145,165..RHD

MARK 2

 1
44325-32270

LN145,165..RHD

NO MARK

 1
44325-32310

LN145,165..RHD

MARK 4

 1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04071

LN145,165..RHD

L=23.3,OD=4.0

 2
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04071

LN145,165..RHD

L=23.3,OD=4.0

 2
44327C - GASKET, VANE PUMP HOUSING
44327-26010

LN145,165..RHD

 1
44330 - VALVE ASSY, FLOW CONTROL
44330-26071

LN145,165..RHD

MARK A

 1
44330-26091

LN145,165..RHD

MARK C

 1
44330-26111

LN145,165..RHD

MARK E

 1
44330-26121

LN145,165..RHD

MARK F

 1
44330-26081

LN145,165..RHD

MARK B

 1
44330-26101

LN145,165..RHD

MARK D

 1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-13034

LN145,165..RHD

 1
44337 - UNION, POWER STEERING SUCTION PORT
44337-35070

LN145,165..RHD

 1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-11016

LN145,165..RHD

 1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19018

LN145,165..RHD

ID=19.2,OD=22.3

 1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-26020

LN145,165..RHD

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-18007

LN145,165..RHD

INNER

 1
90301-47001

LN145,165..RHD

OUTER

 1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-18007

LN145,165..RHD

INNER

 1
90301-47001

LN145,165..RHD

OUTER

 1
44345B - PLATE, VANE PUMP
44345-26030

LN145,165..RHD

L=14.996

 10
44345-26010

LN145,165..RHD

L=15.000

 10
44345-26050

LN145,165..RHD

L=14.992

 10
44345-26040

LN145,165..RHD

L=14.994

 10
44345-26020

LN145,165..RHD

L=14.998

 10
44360 - RESERVOIR ASSY, VANE PUMP OIL
44360-35140

LN145,165..RHD..CBU

 1
Common parts
90105-08192
90105-08194
90119-08469
90178-12003
90206-31001
90410-06006
