LN145L-PRMDSW (1997)

Toyota Hilux

Production Aug 1997 - Aug 2001
Engine 2L
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(9708-0108)LN145,150,165,170,190..LHD

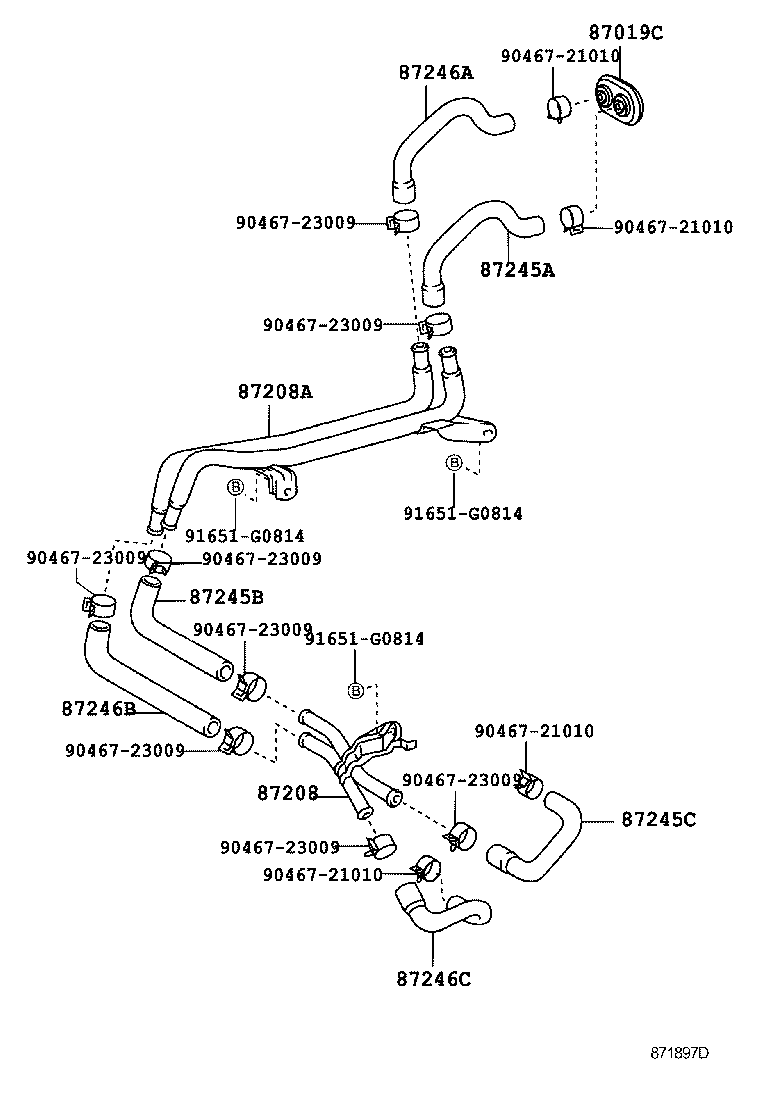

Click highlighted areas on diagram

diagram 87019C 87208 87208A 87245A 87245B 87245C 87246A 87246B 87246C 9046721010 9046721010 9046721010 9046721010 9046723009 9046723009 9046723009 9046723009 9046723009 9046723009 9046723009 9046723009 91651G0814 91651G0814 91651G0814
Part # Description Qty Price
87019C - GROMMET, HEATER HOSE
90480-01405

LN145,150,165,170,190,RZN168,173

 1
87208 - PIPE SUB-ASSY, HEATER WATER
87208-35280

LN145,150

 1
87208A - PIPE SUB-ASSY, HEATER WATER, A
87208-35300

LN145,150

 1
87245A - HOSE, HEATER WATER, INLET A
87245-35860

LN145,150..LHD

 1
87245B - HOSE, HEATER WATER, INLET B
87254-35010

LN145,150,165,170,190

 1
87245C - HOSE, HEATER WATER ,INLET C
87244-35010

LN145,150,165,170,190

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-35860

LN145,150..LHD

 1
87246B - HOSE, HEATER WATER, OUTLET B
87242-35010

LN145,150,165,170,190

 1
87246C - HOSE, HEATER WATER, OUTLET C
87243-35010

LN145,150,165,170,190

 1
Common parts
90467-21010
90467-23009
91651-G0814
