KUN26R-PRASYW (2008)

Toyota Hilux

Production Oct 2008 - Aug 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

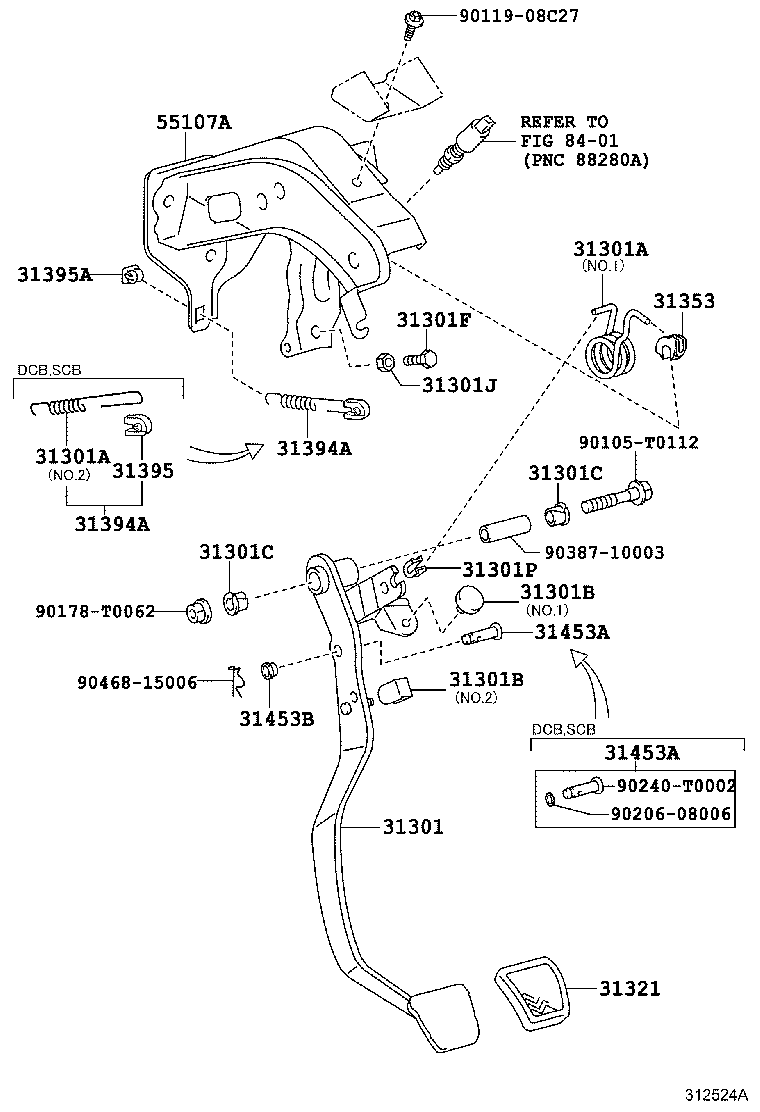

ILLUST NO. 1 OF 2(1008- )RHD..THDCB,THSCB,XTR..5F ; (1010-)RHD..DCB,SCB..5F

Click highlighted areas on diagram

diagram 31301 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31301P 31321 31353 31394A 31395A 31453A 31453B 55107A 8401 90105T0112 9011908C27 90178T0062 9038710003 9046815006
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0K060

KUN26..RHD..DCB..5F;KUN15,25..RHD..(DCB,SCB)..HDCR

 1
31301-0K130

KUN26..RHD..DCB..5F

 1
31301-0K200

KUN15,2#..RHD..(DCB,SCB)..5F

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-T3001

KUN2#..5F;KUN15..DLX..HDCR

NO.1

 1
90949-T3001

KUN15,2#..(DCB,SCB)..5F

 1
90905-06079

KUN2#..5F;KUN15..DLX..HDCR

NO.2

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-T0004

KUN15,2#..RHD..5F

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-T0004

KUN15,2#..RHD..5F

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KUN15,2#..5F

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

KUN15,2#..5F

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

KUN15,2#..5F

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-T0011

KUN15,2#..5F

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055

KUN2#..5F;KUN15..DLX..HDCR

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

KUN15,2#..5F

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010

KUN2#..5F;KUN15..DLX..HDCR

 1
31394A - SPRING, PEDAL W/HOOK
31394-25010

KUN15,2#..(DCB,SCB)..5F

 1
31395A - HOOK, PEDAL SPRING, NO.1
31395-33020

KUN2#..5F;KUN15..DLX..HDCR

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-0K011

KUN15,2#..5F

L=29.4

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

KUN15,2#..5F

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0K010

KUN2#..5F;KUN15..DLX..HDCR

 1
55107-0K070

KUN15,2#..(DCB,SCB)..5F

 1
Common parts
90105-T0112
90119-08C27
90178-T0062
90387-10003
90468-15006
Linked diagrams
8401

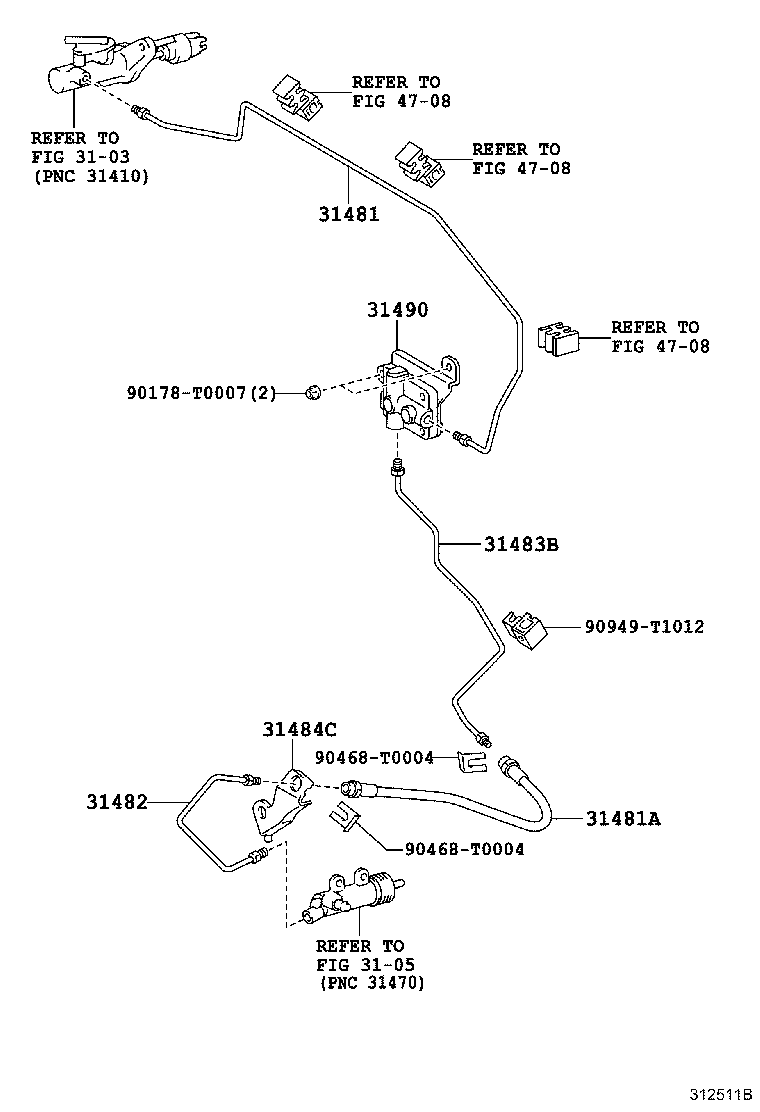

ILLUST NO. 2 OF 2(1107- )RHD..5F

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482 31483B 31484C 31490 4708 4708 4708 90178T0007 90468T0004 90468T0004 90949T1012
Part # Description Qty Price
Common parts
90178-T0007
90468-T0004
90949-T1012
Linked diagrams
3103
3105
4708

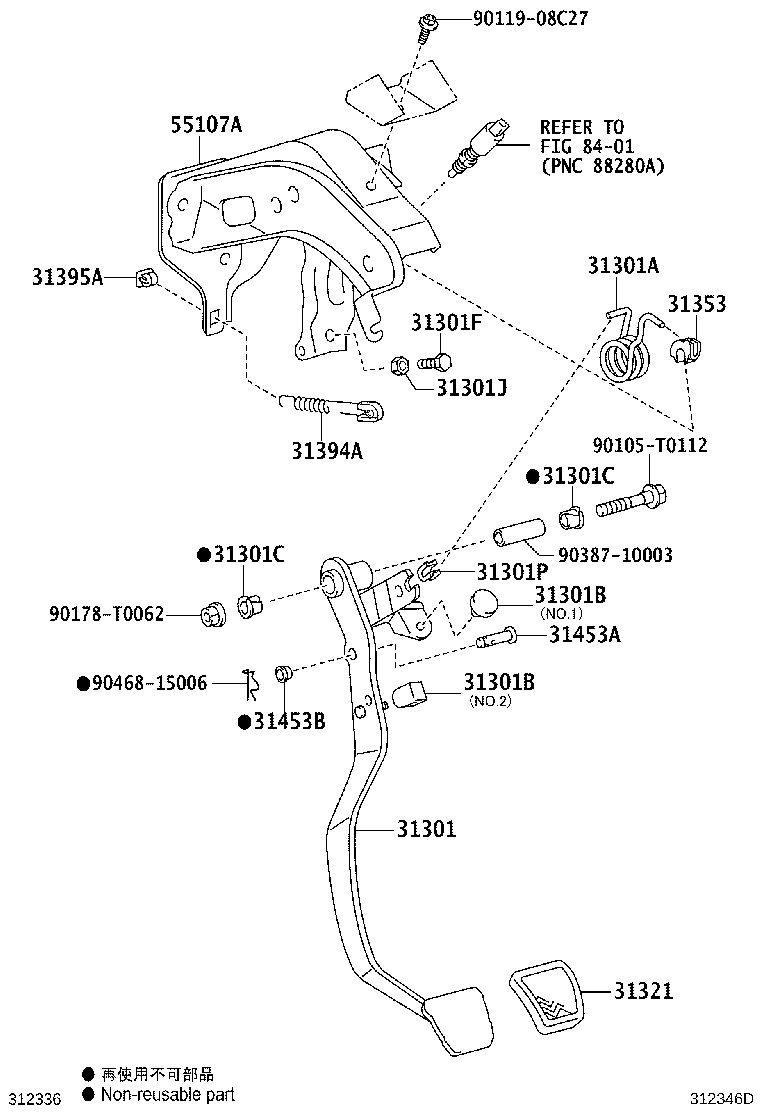

ILLUST NO. 1 OF 2(1107- )RHD..5F

Click highlighted areas on diagram

diagram 31301 31301A 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31301P 31321 31353 31394A 31394A 31395 31395A 31453A 31453A 31453B 55107A 8401 90105T0112 9011908C27 90178T0062 9020608006 90240T0002 9038710003 9046815006
Part # Description Qty Price
Common parts
90105-T0112
90119-08C27
90178-T0062
90206-08006
90240-T0002
90387-10003
90468-15006
Linked diagrams
8401
