KUN26L-PRADYW (2011)
Toyota Hilux
ILLUST NO. 1 OF 2(1108- )DCB,SCB
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04483A - SHACKLE KIT, REAR SPRING, RH | ||||
| 04483-0K050 |
KUN2#,35 |
1 | ||
| 04483B - SHACKLE KIT, REAR SPRING, LH | ||||
| 04483-0K050 |
KUN2#,35 |
1 | ||
| 48046 - SEAT SUB-ASSY, SPRING U BOLT, RH | ||||
| 48046-0K020 |
KUN2#,35 |
1 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-T0002 |
KUN2#,35 L=170 |
4 | ||
| 48046A - BOLT, U(FOR REAR SPRING) | ||||
| 90117-T0002 |
KUN2#,35 L=170 |
4 | ||
| 48047 - SEAT SUB-ASSY, SPRING U BOLT, LH | ||||
| 48046-0K020 |
KUN2#,35 |
1 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-T0009 |
KUN2#,35 |
4 | ||
| 48210A - BUSH(FOR REAR SPRING SHACKLE UPPER) | ||||
| 90385-T0009 |
KUN2#,35 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-T0010 |
KUN2#,35 |
4 | ||
| 48210G - BUSH(FOR REAR SPRING SHACKLE LOWER) | ||||
| 90385-T0010 |
KUN2#,35 |
4 | ||
| 48306 - BUMPER SUB-ASSY, REAR SPRING | ||||
| 48306-0K020 |
KUN2#,35..DCB,SCB |
2 | ||
| 48530 - ABSORBER ASSY, SHOCK, REAR RH | ||||
| 48531-0K450 |
KUN2#,35..DCB MARK 48531-0K450 |
1 | ||
| 48531-0K180 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU MARK 48531-0K180,ISRAEL SPEC |
1 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-T3001 |
KUN2#,35 |
4 | ||
| 48530B - WASHER, REAR SHOCK ABSORBER CUSHION, NO.1 | ||||
| 90948-T3001 |
KUN2#,35 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-T3002 |
KUN2#,35 |
4 | ||
| 48530C - WASHER, REAR SHOCK ABSORBER CUSHION, NO.2 | ||||
| 90948-T3002 |
KUN2#,35 |
4 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0004 |
KUN2#,35 |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0004 |
KUN2#,35 |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0004 |
KUN2#,35 |
8 | ||
| 48530H - BUSH, REAR SHOCK ABSORBER | ||||
| 90385-T0004 |
KUN2#,35 |
8 | ||
| 48540 - ABSORBER ASSY, SHOCK, REAR LH | ||||
| 48541-0K070 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU MARK 48541-0K070,ISRAEL SPEC |
1 | ||
| 48541-0K120 |
KUN2#,35..DCB MARK 48541-0K120 |
1 | ||
| Common parts | ||||
| 90105-T0128 | ||||
| 90105-T0146 | ||||
| 90178-T0027 | ||||
| 90178-T0034 | ||||
| 90178-T0061 | ||||
| 90201-T0006 | ||||
| 90201-T0012 | ||||
| 90201-T0014 | ||||

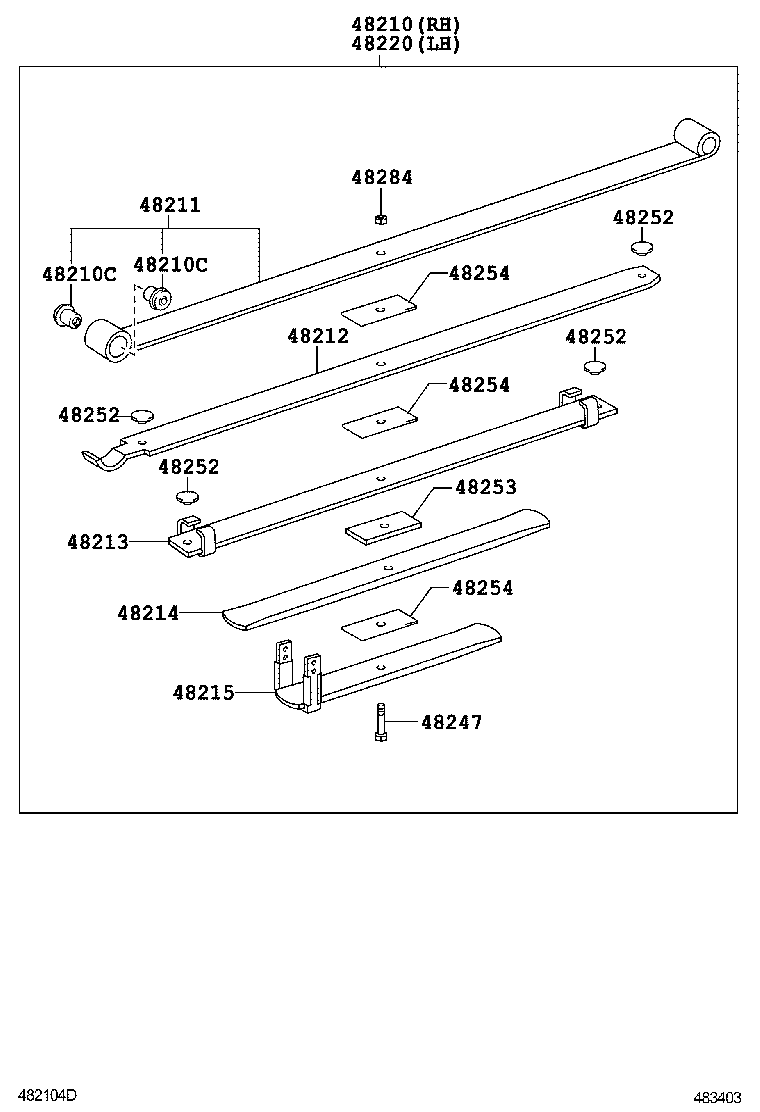

ILLUST NO. 2 OF 2(1108- )KUN35..DCB..SR ; (1108- )KUN2#..LHD..DCB..CBU ; (1410- )KUN35..DCB
5-LEAF,TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48210 - SPRING ASSY, REAR RH | ||||
| 48210-0K321 |
KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
1 | ||
| 48210-0K320 |
KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
1 | ||
| 48210-0K251 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU 5-LEAF,ISRAEL SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-T0009 |
KUN2#,35 |
4 | ||
| 48210C - BUSH(FOR REAR SPRING LEAF) | ||||
| 90389-T0009 |
KUN2#,35 |
4 | ||
| 48211 - LEAF, REAR SPRING, NO.1 | ||||
| 48211-0K320 |
KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
2 | ||
| 48211-0K251 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 48211-0K321 |
KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
2 | ||
| 48212 - LEAF, REAR SPRING, NO.2 | ||||
| 48212-0K251 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 48212-0K320 |
KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
2 | ||
| 48212-0K321 |
KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
2 | ||
| 48213 - LEAF, REAR SPRING, NO.3 | ||||
| 48213-0K320 |
KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
2 | ||
| 48213-0K251 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 48213-0K321 |
KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
2 | ||
| 48214 - LEAF, REAR SPRING, NO.4 | ||||
| 48214-0K251 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 48215 - LEAF, REAR SPRING, NO.5 | ||||
| 48215-0K251 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 48220 - SPRING ASSY, REAR LH | ||||
| 48210-0K320 |
KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
1 | ||
| 48210-0K251 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU 5-LEAF,ISRAEL SPEC,TYPE B:REFER ILLUST. |
1 | ||
| 48210-0K321 |
KUN2#,35..DCB,THDCB 5-LEAF,TYPE A:REFER ILLUST. |
1 | ||
| 48247 - BOLT, REAR SPRING, CENTER | ||||
| 48247-0K050 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 48247-0K310 |
KUN2#,35..DCB,THDCB TYPE A:REFER ILLUST. |
2 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
KUN2#,35 TYPE A:REFER ILLUST. |
8 | ||
| 48252-0K040 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
KUN2#,35 TYPE A:REFER ILLUST. |
8 | ||
| 48252-0K040 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
KUN2#,35 TYPE A:REFER ILLUST. |
8 | ||
| 48252-0K040 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
8 | ||
| 48252 - SILENCER, REAR SPRING | ||||
| 48252-0K010 |
KUN2#,35 TYPE A:REFER ILLUST. |
8 | ||
| 48252-0K040 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
8 | ||
| 48253 - SPACER, REAR SPRING, NO.1 | ||||
| 48253-0K010 |
KUN2#,35 TYPE A:REFER ILLUST. |
2 | ||
| 48253-0K040 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
2 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-0K250 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-0K250 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
6 | ||
| 48254 - SPACER, REAR SPRING LEAF | ||||
| 48254-0K250 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
6 | ||
| 48284 - NUT, REAR SPRING CENTER BOLT | ||||
| 48284-0K310 |
KUN25..FLD;KUN2#,35..DCB,SCB,THDCB,THSCB TYPE A:REFER ILLUST. |
2 | ||
| 48284-0K040 |
KUN35..DCB..SR;KUN2#..LHD..DCB..CBU ISRAEL SPEC,TYPE B:REFER ILLUST. |
2 | ||
