KUN25R-TRMDHW (2005)
Toyota Hilux
ILLUST NO. 2 OF 2(0507- )DCB,SCB
O-RING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90068-14022 | ||||
| 90068-14023 | ||||
| 90068-14024 | ||||
ILLUST NO. 1 OF 2(0608- )RHD..THDCB,THSCB,XTR ; (0610-0810)RHD..DCB,SCB
SINGLE AIR CONDITIONER & COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K080 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K120 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-02220 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K190 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K040 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K690 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K680 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 90069-46028 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88707-0K120 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K010 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K030 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-0K250 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 90069-46027 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0K161 |
KUN15,25..DCB,SCB COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716-0K160 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-0K180 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716-0KD30 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KUN15,25..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88467-35060 | ||||
| 88688-0K570 | ||||
| 88688-0K580 | ||||
| 88718-0K060 | ||||
| 88718-0K310 | ||||
| 88718-0KB70 | ||||
| 88899-0K020 | ||||
| 90069-31013 | ||||
| 90069-31014 | ||||
| 90091-20636 | ||||
| 90105-T0007 | ||||
| 90105-T0038 | ||||
| 90105-T0066 | ||||
| 90105-T0085 | ||||
| 90105-T0152 | ||||
| 90105-T0241 | ||||
| 90179-08123 | ||||
| 91511-G0614 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

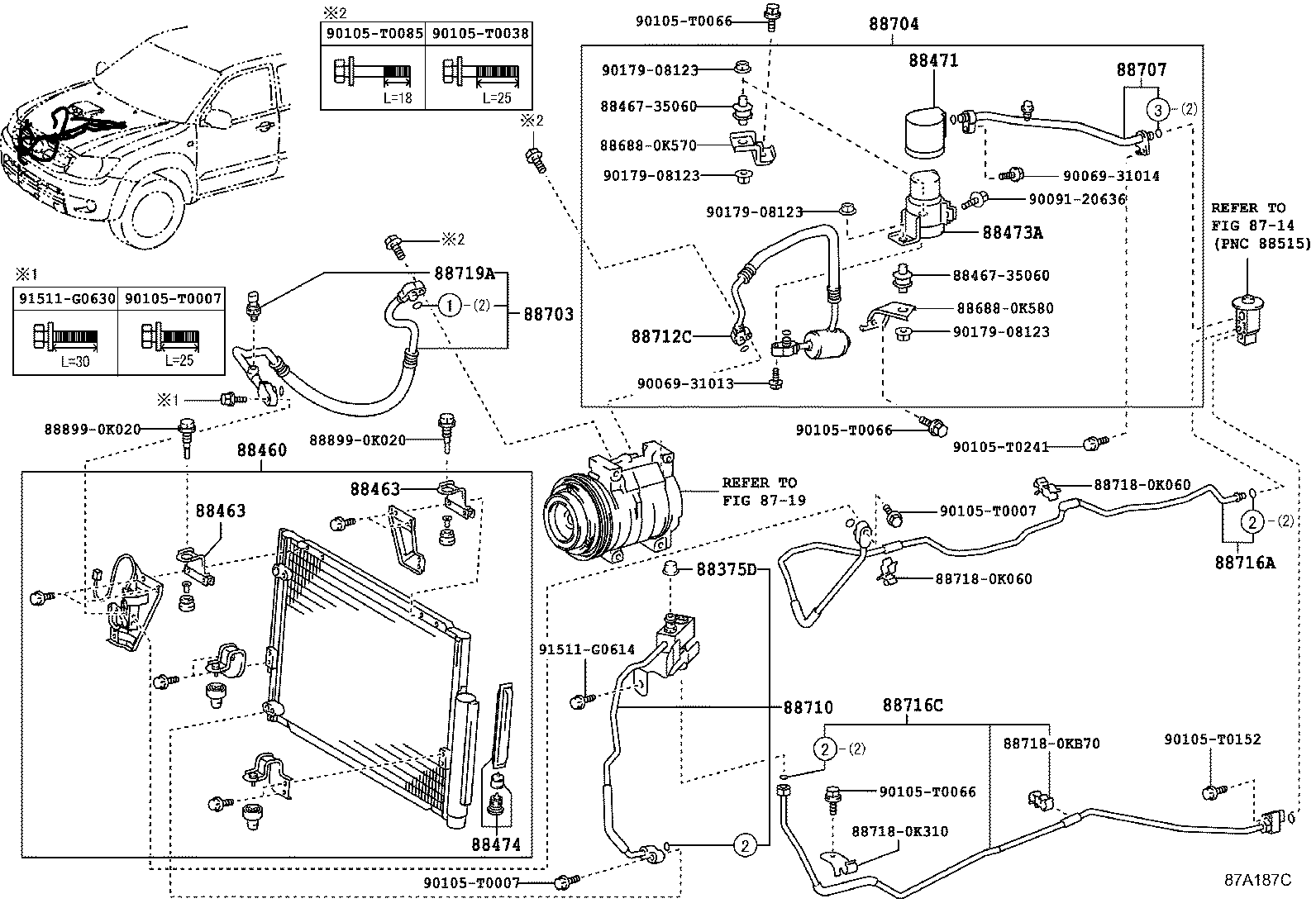

ILLUST NO. 1 OF 2(0507-0608)XTR ; (0507-0610)DCB,SCB
SINGLE AIR CONDITIONER & COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K080 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K120 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K200 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K200 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K210 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K210 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-02220 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K190 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K040 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K690 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K680 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K190 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K040 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K690 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K680 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 90069-46028 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88707-0K120 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88707 - PIPE SUB-ASSY, SUCTION | ||||
| 90069-46028 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88707-0K120 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K010 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K030 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K090 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88703-0K260 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-0K250 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 90069-46027 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88712C - HOSE, SUCTION | ||||
| 88712-0K250 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 90069-46027 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-0K161 |
KUN15,25..DCB,SCB COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716-0K160 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716B - PIPE, COOLER REFRIGERANT LIQUID, B | ||||
| 88716-0K260 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-0K180 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88716-0KD30 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88719A - SENSOR, AIR CONDITIONER PRESSURE | ||||
| 88719-40020 |
KUN15,25..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88718-0K310 | ||||
| 88899-52050 | ||||
| 90069-31013 | ||||
| 90105-T0007 | ||||
| 90105-T0038 | ||||
| 90105-T0066 | ||||
| 90105-T0152 | ||||
| 90105-T0241 | ||||
| 91511-G0614 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||

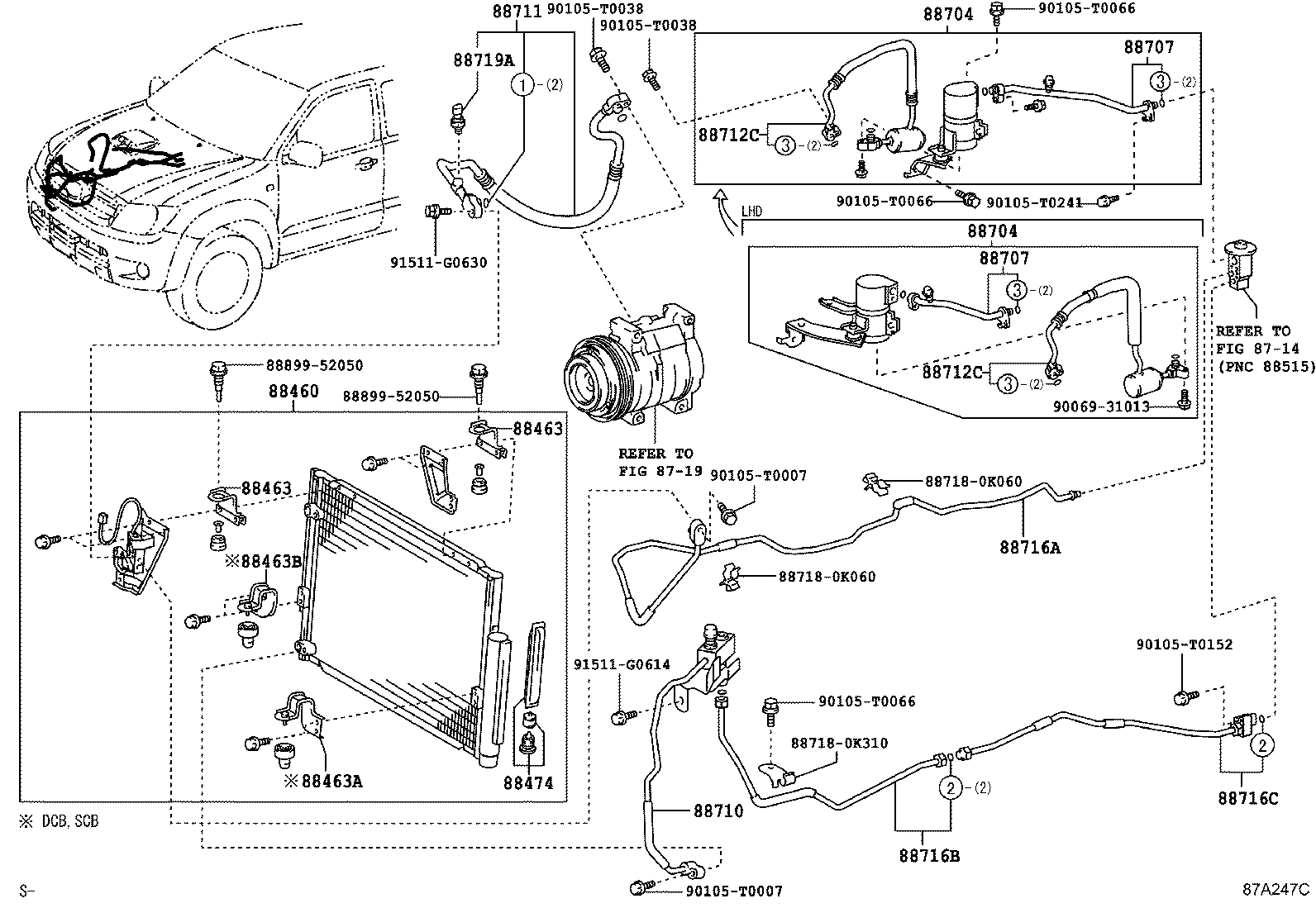

ILLUST NO. 1 OF 2(0507-0810)DCB,SCB
SINGLE AIR CONDITIONER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-0K080 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88460-0K120 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-0K190 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
2 | ||
| 88463-0K190 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
2 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-0K200 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K200 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-0K210 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88463-0K210 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474 - DRYER, COOLER | ||||
| 88474-02220 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88474-02220 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704 - HOSE SUB-ASSY, SUCTION | ||||
| 88704-0K190 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K040 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K690 |
KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88704-0K680 |
KUN15,25..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-0K010 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88710-0K030 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-0K090 |
KUN15,2#..DCB,SCB SINGLE AIR CONDITIONER |
1 | ||
| 88703-0K260 |
KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER |
1 | ||
| Common parts | ||||
| 88718-0K060 | ||||
| 88899-52050 | ||||
| 90091-20512 | ||||
| 90091-20619 | ||||
| 90105-T0007 | ||||
| 90105-T0038 | ||||
| 90105-T0066 | ||||
| 90105-T0241 | ||||
| 91511-G0614 | ||||
| 91511-G0630 | ||||
| Linked diagrams | ||||
| 8714 | ||||
| 8719 | ||||
