Toyota Hilux KUN25 HEATING & AIR CONDITIONING - COOLER UNIT

Manufacturers Home
Toyota
EU
HILUX
KUN25R-TRMDHW (2005)
8714 - HEATING & AIR CONDITIONING - COOLER UNIT

KUN25R-TRMDHW (2005)

Toyota Hilux

Production Jul 2005 - Oct 2008

Engine 2KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

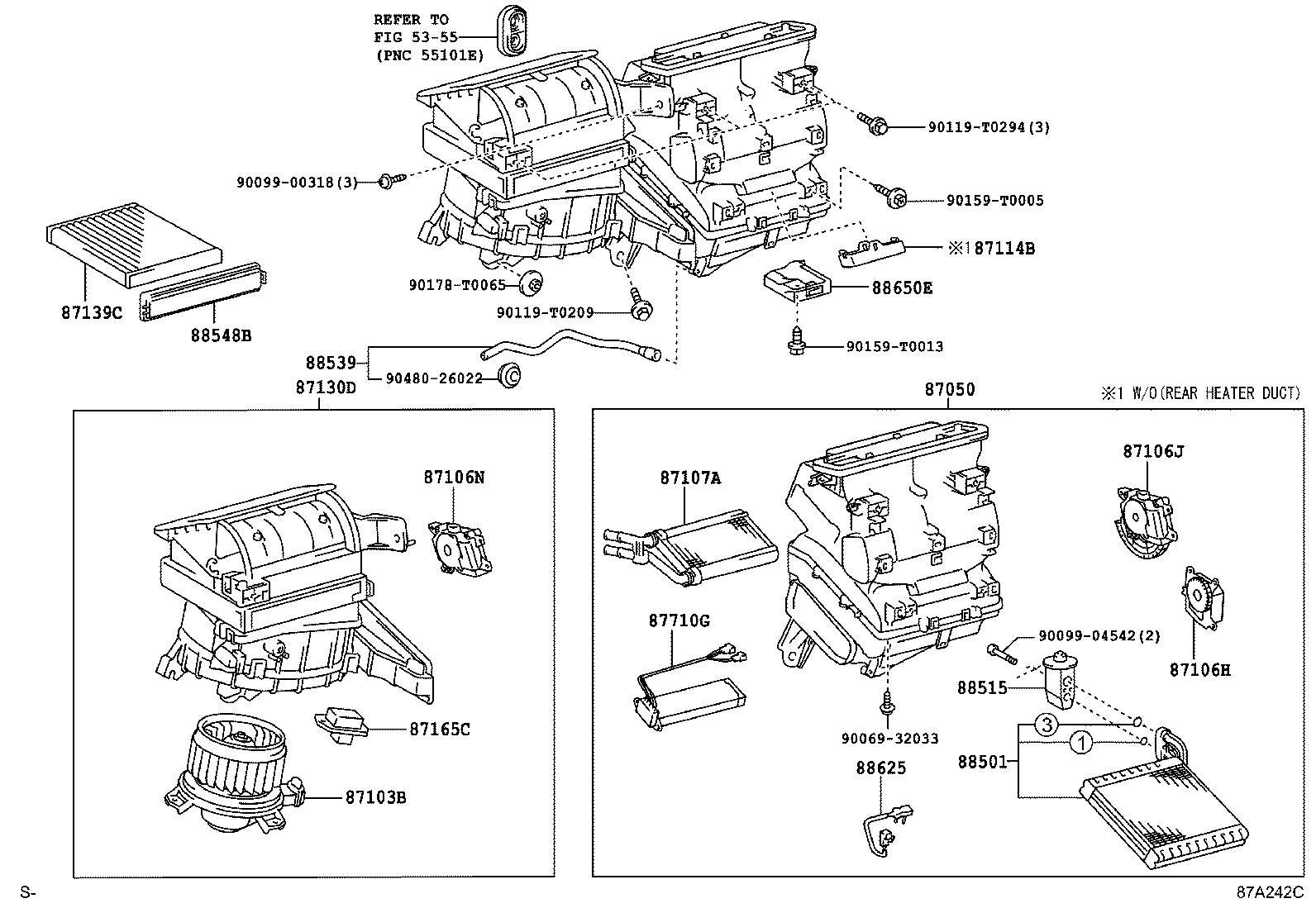

ILLUST NO. 1 OF 2(0507- )RHD

Click highlighted areas on diagram

FRONT---MANUAL AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K230	KUN15,2#..RHD..(DCB,SCB)	07/2005 - 10/2008	1
87050-0K250	KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC	07/2005 - 10/2008	1
87050-0K270	KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K140	KUN15,2#..RHD..(DCB,SCB)	07/2005 - 12/2007	1
87103-0K260	KUN15,2#..RHD..(DCB,SCB)	01/2008 - 10/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K050	KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
87114B - COVER, HEATER
87114-0K010	KUN15,25..DCB,SCB	07/2005 - 10/2008	1
87130D - BLOWER ASSY
87130-0K140	KUN15,2#..RHD..(DCB,SCB)	07/2005 - 10/2008	1
87138C - RESISTOR, BLOWER
87138-0K090	KUN15,2#..RHD..(4FC,5F)	07/2005 - 10/2008	1
87710G - QUICK HEATER ASSY
87710-26060	KUN15,2#..RHD..(4FC,5F)	07/2005 - 10/2008	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K120	KUN15,2#..DCB,SCB	07/2005 - 05/2008	1
88501-0K121	KUN15,2#..DCB,SCB	06/2008 - 10/2008	1
88515 - VALVE, COOLER EXPANSION
88515-71010	KUN15,25..DCB,SCB	07/2005 - 01/2006	1
88515-26080	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2006	1
88515-0K170	KUN15,2#..DCB,SCB	01/2006 - 10/2008	1
88515-0K190	KUN15,25..DCB,SCB COLD AREA SPEC&SINGLE AIR CONDITIONER	10/2006 - 10/2008	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K070	KUN15,2#..RHD..(DCB,SCB)..5F	07/2005 - 10/2008	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	KUN25..RHD;KUN15..RHD..XTR;KUN15..LHD..XTR..HDCR;KUN25..LHD..(DCB,SCB,THDCB,THSCB);KUN15,26..(DCB,SCB,THDCB,THSCB)..(4FC,5F)	07/2005 - 10/2008	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-0K140	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88650-0K150	KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
88650-0K130	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC	07/2005 - 10/2008	1
Common parts
90099-00318
90099-04542
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355
8715

ILLUST NO. 1 OF 2(0507- )RHD

Click highlighted areas on diagram

FRONT---MANUAL HEATER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K230	KUN15,2#..RHD..(DCB,SCB)	07/2005 - 10/2008	1
87050-0K250	KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC	07/2005 - 10/2008	1
87050-0K270	KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K140	KUN15,2#..RHD..(DCB,SCB)	07/2005 - 12/2007	1
87103-0K260	KUN15,2#..RHD..(DCB,SCB)	01/2008 - 10/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K050	KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
87114B - COVER, HEATER
87114-0K010	KUN15,25..DCB,SCB	07/2005 - 10/2008	1
87130D - BLOWER ASSY
87130-0K140	KUN15,2#..RHD..(DCB,SCB)	07/2005 - 10/2008	1
87138C - RESISTOR, BLOWER
87138-0K090	KUN15,2#..RHD..(4FC,5F)	07/2005 - 10/2008	1
87710G - QUICK HEATER ASSY
87710-26060	KUN15,2#..RHD..(4FC,5F)	07/2005 - 10/2008	1
88482 - CAP, COOLER
88482-0K030	KUN15,2#..DCB,SCB	10/2007 - 10/2008	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-0K140	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88650-0K150	KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
88650-0K130	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC	07/2005 - 10/2008	1
Common parts
90105-T0241
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
Linked diagrams
5355
8715

ILLUST NO. 2 OF 2(0507- )DCB,SCB

Click highlighted areas on diagram

O-RING

Part #	Description	Period	Qty	Price
Common parts
90068-14022
90068-14023
90068-14024

ILLUST NO. 1 OF 2(0808- )RHD

Click highlighted areas on diagram

FRONT---AUTO AIR CONDITIONER

Part #	Description	Period	Qty
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K230	KUN15,2#..RHD..(DCB,SCB)	07/2005 - 10/2008	1
87050-0K250	KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC	07/2005 - 10/2008	1
87050-0K270	KUN15,25..RHD..(DCB,SCB) COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K140	KUN15,2#..RHD..(DCB,SCB)	07/2005 - 12/2007	1
87103-0K260	KUN15,2#..RHD..(DCB,SCB)	01/2008 - 10/2008	1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K050	KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
87114B - COVER, HEATER
87114-0K010	KUN15,25..DCB,SCB	07/2005 - 10/2008	1
87130D - BLOWER ASSY
87130-0K140	KUN15,2#..RHD..(DCB,SCB)	07/2005 - 10/2008	1
87710G - QUICK HEATER ASSY
87710-26060	KUN15,2#..RHD..(4FC,5F)	07/2005 - 10/2008	1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K120	KUN15,2#..DCB,SCB	07/2005 - 05/2008	1
88501-0K121	KUN15,2#..DCB,SCB	06/2008 - 10/2008	1
88515 - VALVE, COOLER EXPANSION
88515-71010	KUN15,25..DCB,SCB	07/2005 - 01/2006	1
88515-26080	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2006	1
88515-0K170	KUN15,2#..DCB,SCB	01/2006 - 10/2008	1
88515-0K190	KUN15,25..DCB,SCB COLD AREA SPEC&SINGLE AIR CONDITIONER	10/2006 - 10/2008	1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K070	KUN15,2#..RHD..(DCB,SCB)..5F	07/2005 - 10/2008	1
88625 - THERMISTOR, COOLER, NO.1
88625-26090	KUN25..RHD;KUN15..RHD..XTR;KUN15..LHD..XTR..HDCR;KUN25..LHD..(DCB,SCB,THDCB,THSCB);KUN15,26..(DCB,SCB,THDCB,THSCB)..(4FC,5F)	07/2005 - 10/2008	1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-0K140	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC&SINGLE AIR CONDITIONER	07/2005 - 10/2008	1
88650-0K150	KUN15,2#..DCB,SCB	07/2005 - 10/2008	1
88650-0K130	KUN15,25..(DCB,SCB)..5F COLD AREA SPEC	07/2005 - 10/2008	1
Common parts
90069-32033
90099-00318
90099-04542
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355

KUN25R-TRMDHW (2005)

ILLUST NO. 1 OF 2(0507- )RHD

ILLUST NO. 1 OF 2(0507- )RHD

ILLUST NO. 2 OF 2(0507- )DCB,SCB

ILLUST NO. 1 OF 2(0808- )RHD
